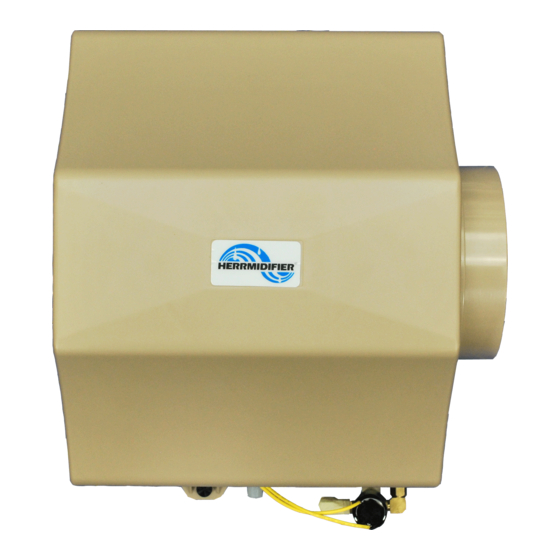

Trion G200 Specification Sheet

G200/G300
Bypass Flow-Thru Humidifiers
T E C H N I C A L
H-G200300-1008
A i r P u r i f i c a t i o n S y s t e m s
E N G I N E E R I N G

Performance:

• Save on Energy Costs and Improve Comfort
• Increasing a Home's Relative Humidity Makes it Feel More
Comfortable at 68ºF / 20ºC than it Does at 73ºF / 23ºC at a Low
Relative Humidity Level
• Lower Thermostat Settings Deliver Substantial Savings on Monthly
Energy Bills
• High Capacity Output: G200 – 14.4 Gallons Per Day at 120º F
G300 – 18.0 Gallons Per Day at 120º F

Features:

• Adjustable, Precision Duct-Mounted Humidistats Allow the Units to
be set for Optimum Relative Humidity
• Convenient Orientation Allows Right or Left-Side Panel for Easy
Installation and Easy Access in the Future
• Single Screw Secures Cover
• 2" Evaporator Pad Expands the Evaporative Area for Water Supply
and Increases Performance
• Cleanable/Replaceable Internal Water Filter Protects Solenoid
• Self-Piercing Saddle Valve And A 24v Brass Solenoid Valve Makes
Installation Easy
• G200 Mounts on 10" Duct, G300 Mounts on 141/2" Duct
• Wide 11/2" Collar for Ease of Installation

How Humidifiers Work:

Evaporative humidifier is installed onto the supply duct, where warm,
dry air is forced across a moistened evaporator pad (wetted through the
home's water supply), creating a superfine mist that is released into the
indoor air. The adjustable, precision-made humidistat allows the user to
choose the optimum level of relative humidity for indoor comfort.

Warranty:

• 2-year Limited Warranty
S P E C I F I C A T I O N
