Premier Tech Aqua Ecoflo STB-570-P Installation Manual

®

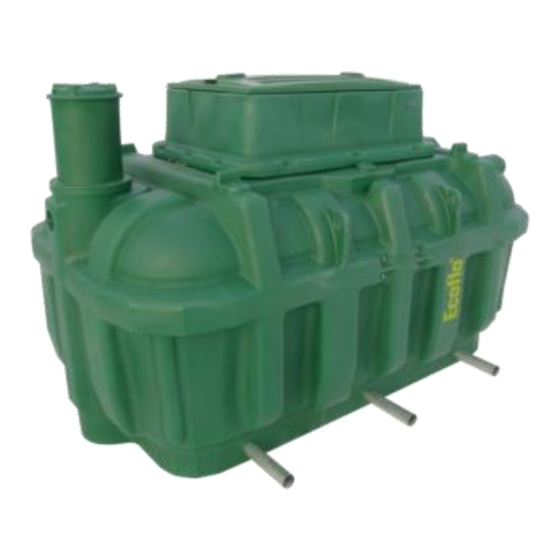

Ecoflo Biofilter - Polyethylene
This guide contains the information required to install a Polythelyne Ecoflo
3680-600 requirements. The installation must be performed by an authorized installer. A list of installers can be
provided by contacting our customer service at 1 800 632-6356.
Table of Contents
1. Technical data on the polyethylene Ecoflo
2. Description of system components
3. Location of components and specific instructions
4. Description of polyethylene Ecoflo
5. Installation sequence
6. Storage, handling and shipping
ptzone.premiertechaqua.com)
7. Typical installations

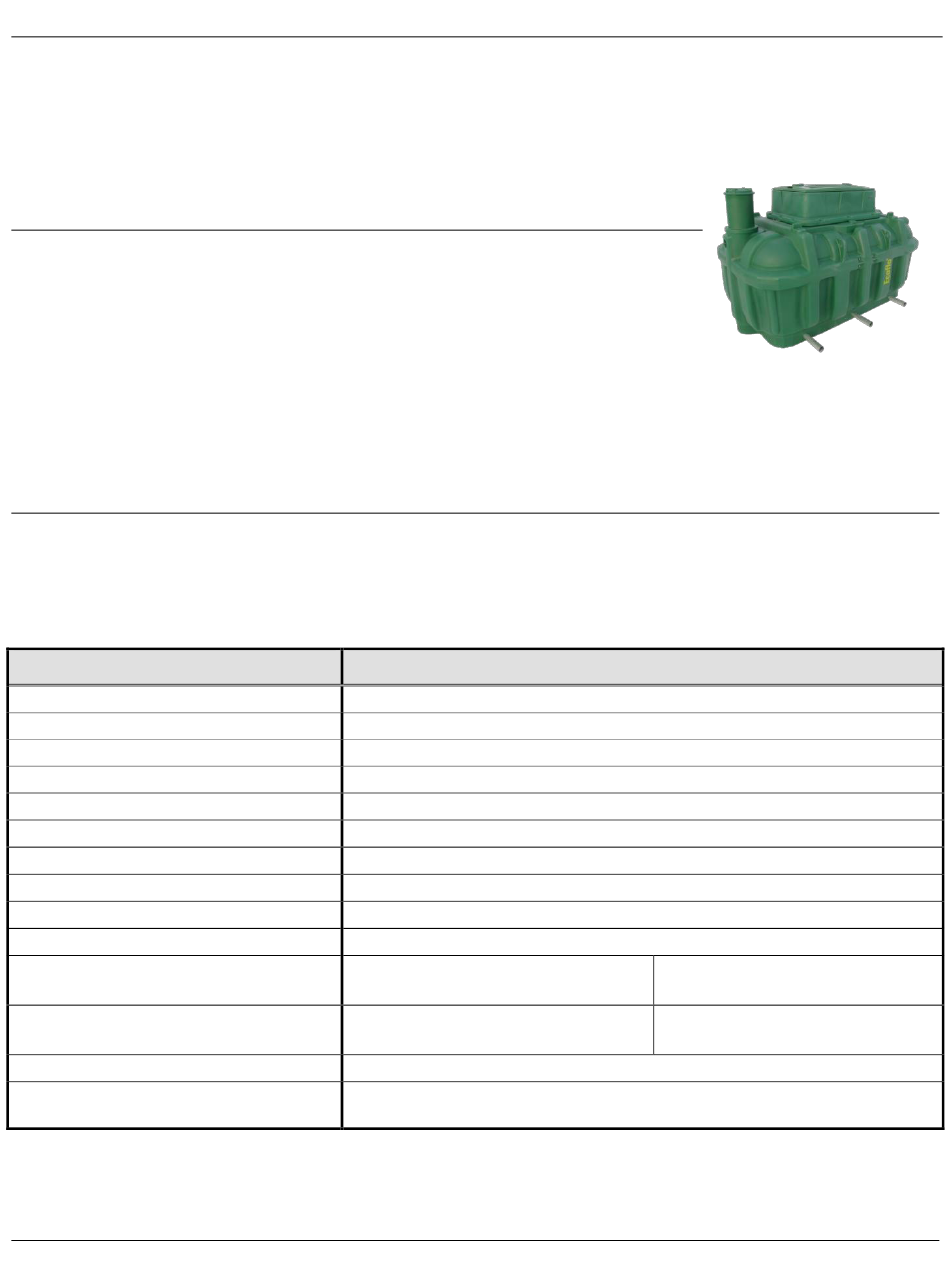

1. Technical data
Component material
•
Shell: polyethylene
•
Cover, central support, tipping bucket, distribution plates and sampling device: polyethylene
•
Filtering media: natural fiber
models
Type of shell
Hydraulic capacity Demand dosed option
Hydraulic capacity Time dosed option
Type of disposal
Type of bottom
Length (A)*
Width (B)*
Height (C)*
Inlet Height (D)*
Inlet Height (E)*
Outlet Height (Fg and Fp)*
Weight** (including internal components and
filtering media)
Dosing Volume
Retention Volume (between bottom of the
shell and the bottom of the filtering media)
* See drawings on page 3.
** Weights are approximate and not binding (for handling and lifting purposes only).
Premier Tech Aqua
®
Biofilter components
(consult the Storage, Handling and Shipping Guide on
(visit ptzone.premiertechaqua.com to obtain the complete list)
®
Biofilter
STB-570-P/PR
Polyethylene
1,755 L/d
2,195 L/d
Gravity or Pumped
Watertight
3,380 mm (11' 1")
2,000 mm (6' 7")
1,850 mm (6' 1")
1,260 mm (4' 2")
590 mm (1' 11")
Gravity model
38 mm (1½")
Gravity model
1,190 kg (2,620 lb)
With Integrated pump : 145 L (38 US gal)
With Integrated pump : 500 L (130 US gal)
1/20
Installation Guide-Ontario
®
Biofilter Certified under the CAN/BNQ
Model with integrated pump
1,240 mm (4' 1")
Model with integrated pump
1,200 kg (2,640 lb)
®
Ecoflo Polyethylene – Installation Guide Ontario
Edition: 2020-06-23
