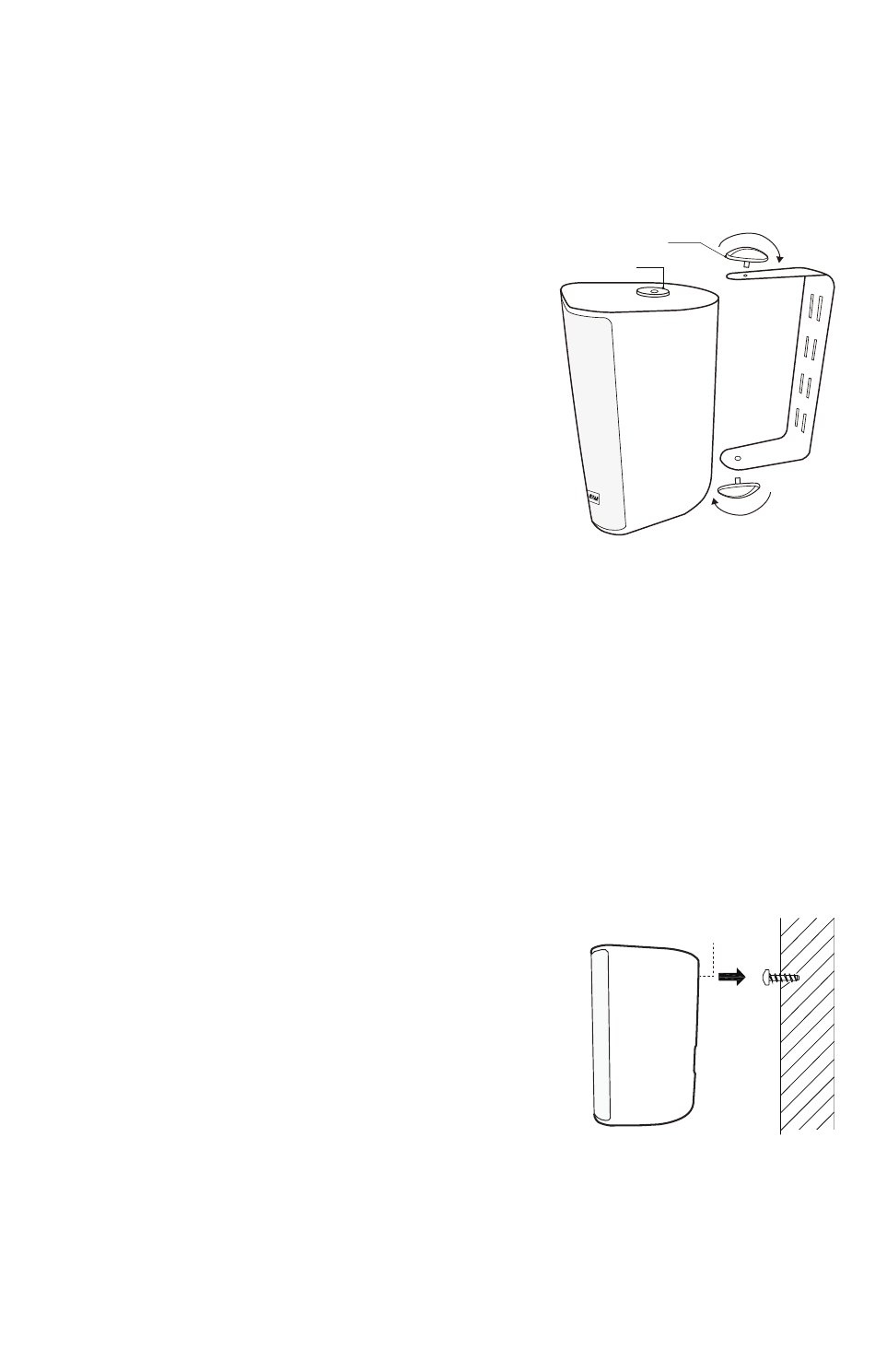

Mounting with the supplied bracket
NOTES:
• See the section "Important notes" for safety precautions.
• Attach the speakers to walls/ceilings constructed of solid wood, brickwork, concrete, hollow building blocks
or wood studs. Do not attach the speakers to non-reinforced plaster sheetrock (gypsum board).
1.
Determine the location where the speakers are to be mounted.
2.
Use the supplied bracket as a template to mark two screw
holes on the mounting surface, then drill two holes.
3.
Attach the supplied bracket to the wall/ceiling by inserting two
supplied screws to the drilled holes. Make sure the screws are
tightened to secure the bracket on the wall.
If needed, use anchors (not included) to secure the screws.
If needed, use two supplied rubber strips to further fasten the
bracket on the wall/ceiling for vibration avoidance.
4.
Fix the speaker to the bracket with two supplied thumb screws.
If needed, place one supplied EVA sticker around the screw
hole on the speaker's top/bottom cabinet. The EVA sticker can
make the connection tighter to avoid vibration.
Before tightening the thumb screw, you may pivot the speaker to its ideal position (e.g. facing the listening
area).
5.
Repeat the steps above to mount the other speaker.
Hanging on a screw
NOTES:
• See the section "Important notes" for safety precautions.
• Attach the speakers to walls/ceilings constructed of solid wood, brickwork, concrete, hollow building blocks
or wood studs. Do not attach the speakers to non-reinforced plaster sheetrock (gypsum board).
1.
Determine the location where the speakers are to be mounted, then
drill a hole.
2.
Use a screw of proper length and diameter (not included) to firmly
fasten it on wall.
If needed, use an anchor (not included) to secure the screw.
3.
Hang the speaker on the wall using the mounting hole on the back
of the speaker.
4.
Repeat the steps above to hang the other speaker on a screw.
Thumb screw
EVA sticker
- 3 -
Mounting hole
