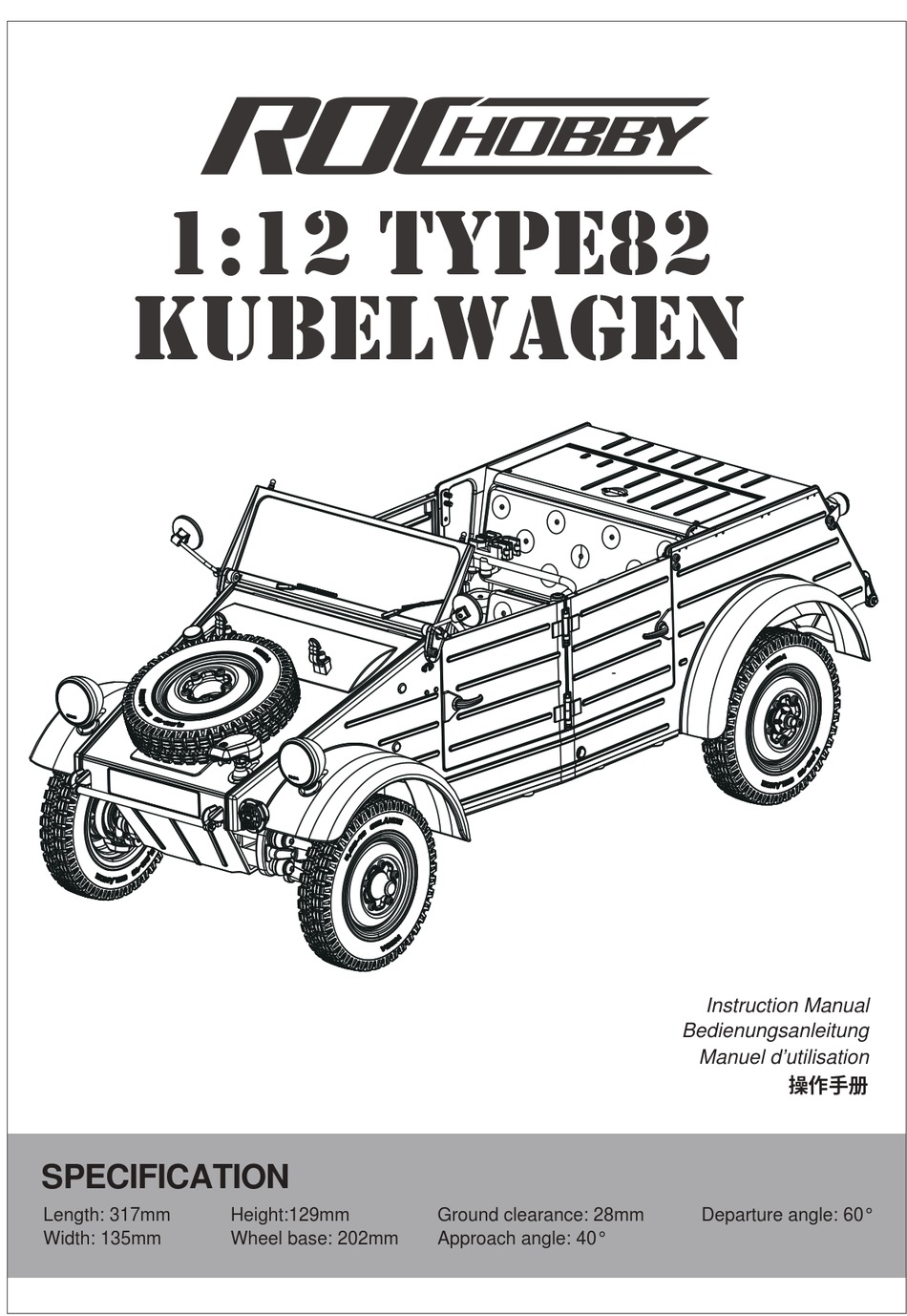

- Page 1 1:12 type82 kubelwagen Instruction Manual Bedienungsanleitung Manuel d’utilisation 操作手册 SPECIFICATION Length: 317mm Height:129mm Ground clearance: 28mm Departure angle: 60° Width: 135mm Wheel base: 202mm Approach angle: 40°...
-
Page 3: Table Of Contents
TABLE OF CONTENTS ........................... SAFETY PRECAUTIONS ............................RADIO SYSTEM ........................PRODUCT INTRODUCTION ........................THROTTLE STICK POSITION ............................VEHICLE SETUP ........................OPERATING THE VEHICLE ............................TRANSMISSION ..............................CAR SHELL ..............................CHASSIS ............................... REAR WHEEL ..........................RIGHT-FRONT WHEEL ........................... ACCESSORIES LIST... -
Page 4: Safety Precautions
Failure to operate or maintain this vehicle in a safe manner can result in bodily harm. It is the owner responsibility to operate this product in a safe manner. Rochobby and its distribu- tors are not responsible in any way for any and all bodily harm and/ or property damage that may result from the use of this product. - Page 5 Please read this manual carefully prior to using.We are not responsible for any intention- al damage or improper use. lf you require any additional information or have any quesions adout he product or its use,please contact us via . This product is not a toy! (14+) Recommended for ages 14 and up. Adult supervision MADE IN CHINA required for ages under 14 years old.
-
Page 6: Radio System
RADIO SYSTEM Safety symbols Pay close attention to the following symbols and their meanings. Failure to follow these warnings could cause damage, injury or death. Attention Not following these instructions may lead to minor injuries. Warning Not following these instructions may lead to major injuries. Danger Not following these instructions may lead to serious injuries or death. -
Page 7: Product Introduction
PRODUCT INTRODUCTION Research Background In the 1930s,German constructed the KdF Motor City in Wolfsburg, Lower Saxony, and registered the Gesellschaft zur Vorbereitung des Deutschen Volkswagens mbH, which later developed into the world-renowned Volkswagen headquarters and where the national car KdF-Wagen was produced. - Page 8 production on a large scale, not to mention the maintenance burden brought to the logistics units. Therefore, the four-wheel drive structure was only used on the Typ87 and the amphibious Typ128/166, which had to use four-wheel drive. About Mode The FMS 1/12 Kübelwagen RC Model presents itself in Mid-term to take you back to the war-torn era with its spectacular design.
- Page 9 Like the real car, the simulated wheels need to be fixed with 5 screws, the spare tire on the front available for being taken off and installed for use. Remove the spare tire, the typical of the mid-cy- cle spare tire bracket is readily accessible. The windshield can be put down and fixed on the front bracket and the real rearview mirror’s angle is adjustable like a real car.
- Page 10 WINDSHIELD HOLD-DOWN CLIPS FUEL TANK CAP SPARE WHEEL AND TIRE HEADLIGHT TOWING HOOK CAMOUFLAGE LIGHT PROTECTION PAN CARGO COMPARTMENT LID STOP AND TAILLIGHT CONVOY LIGHT TOWING HOOKS PROTECTION PAN ENGINE COMPARTMENT LID...
- Page 11 WINDSHIELD WIPER DIRECTION SIGNAL SWITCH FUSE BOX DIRECTION SIGNAL INDICATOR SPEEDOMETER AMMETER OIL PRESSURE GAGE FUSE BOX DASHBOARD LIGHT SWITCH CRANKING MOTOR BUTTON BRIGHT LIGHT INDICATOR IGNITION KEY LIGHT SWITCH MULTIPLE SWITCH CLUTCH PEDAL BRAKE PEDAL ACCELERATOR GEARSHIFT LEVER EMERGENCY BRAKE OIL BATH AIR CLEANER IGNITION COIL FAN HOUSING...
- Page 12 Transmitter intruction FS-R4A1 based on ANT protocol is a three-in-one receiver with ESC and LED light group control board. It has an external single antenna, can output PWM signal and light control signal, can implement two-way transmis sion, adopts automatic binding, and has a compact design, which can be adapted to various model cars. [12] [13] [14]...
- Page 13 Overview [1] CH1 [14] Motor port "+" [2] CH3 [15] Motor port "-" [3] CH4 [16] Stickers [4] Left-turn light port [17] LED [5] Head light port [18] Left-turn light port [6] Right-turn light port [19] Right-turn light port [7] Head light port [20] Reversing light port [8] Fog light port [21] Brake light port...
- Page 14 ESC protection This receiver has multiple prompt functions such as power-on self-check display, overheating alarm prompt, and low/high voltage alarm prompt. • Self-check display: all car lights will be on for 1S when the receiver is powered on; • Overheating alarm: When the internal temperature of the ESC is detected to exceed 110 ,motor has no output, all car lights flash promptly, and the normal output will be restored when the temperature is lower than •...
- Page 15 2. Normal boot, identification throttle midpoint: After connecting related equipment as step 1, turn on the radio first, move the throttle trigger to the neutral posi- tion. Turn on the switch of ESC at last. The receiver will automatically recognize the battery type when it is pow- ered on again.
- Page 16 The Dial Switch on the transmitter is used to set ESC parameters, that is, the Dial Switch is located at different posi- tions and the corresponding parameter values are different. Setting Method: There are three parameters can be set for the ESC, which are "Running mode", "Battery type", "Drag brake", There are slide switches numbered 1 2 3 4 on the radio panel .
- Page 17 Lighting function Times for Pressing Power on Button Light Function is off by Control Mod Remarks Position default White headlights OFF OFF OFF keep on Headlight White headlights keep on with high brightness Taillights keep on Taillights Taillights turn red Brake lights are on with high Throttle linkage...
- Page 18 Getting started Transmitter Battery Installation Only use specified battery (X4 AA batteries). Danger Do not open, disassemble, or attempt to repair the battery. Danger Danger Do not crush/puncture the battery, or short the external contacts. Do not expose to excessive heat or liquids. Danger Do not drop the battery or expose to strong shocks or vibrations.
-
Page 19: Throttle Stick Position
THROTTLE STICK POSITION Throttle stick position VEHICLE SETUP Connecting the battery NOTE 1.If it is not in use for a long time, unplug and take off the battery to prevent batery leakage. 2.Do not open, disassemble, or attempt to repair the battery. 3.After use unplug battery from vehicle.Do not charge battery in vehicle. -
Page 20: Operating The Vehicle
OPERATING THE VEHICLE Step 1: turn on the transmitter, the headlamp of the transmitter will flash and enter the frequency matching mode. Step 2: turn on the receiver switch, the headlight will flash and enter the frequency matching mode. Step 3: when the transmitter and receiver are successful in frequency up, the front lights of the transmitter will be on for a long time, and the front lights of the vehicle will be off. - Page 21 ............................安 全 保 障 措 施 ..............................无 线 电 系 统 ..............................产 品 简 介 ..............................车 辆 设 置 ..............................车 辆 操 作 ................................变 速 箱 ................................车 壳 ................................底 架 ................................后 轮 ................................
- Page 24 二十世纪30年代，德国在下萨克森州的沃尔夫斯堡建设KdF汽车城，并且注册了Gesellschaft zur Vorbereitung des Deutschen Volkswagens mbH汽车公司，这里后来发展为举世瞩目的大众汽 车总部。德国国民车KdF-Wagen在这里诞生，也就是后来大名鼎鼎的甲壳虫汽车，世界上著名的 国民车。可惜这些国民车没有一台卖到国民手里，战争开始后，全部被征用改装为军车投入战场。 其中著名的当属Kübelwagen。Kübelwagen德语字面意思是水桶车，特指军用敞篷越野车，研 发计划始于1938年1月，具备低矮的车身，较轻的自重，利于大量制造以及成本低廉的特点。...
