Figure 6-42: Gateway To Gateway; Figure 6-43: Client To Gateway - Linksys RV042 User Manual

10/100 4-Port VPN Router
Tunnel Name: It shows the Tunnel Name that you enter in the Gateway to Gateway page, Client to Gateway page
or Group ID Name.
Status: It shows Connected, Hostname Resolution Failed, Resolving Hostname or Waiting for Connection.
If users select Manual in IPSec Setup page, the Status will show Manual and no Tunnel Test function for Manual
Keying Mode.
Phase2 Encrypt/Auth/Group: It shows the Encryption (DES/3DES), Authentication (MD5/SHA1) and Group (1/2/5)
that you chose in IPSec Setup field.
If you chose Manual mode, there will be no Phase 2 DH Group, and it will show the Encryption and Authentication
method that you set up in Manual mode.
Local Group: It shows the IP and subnet of the Local Group.
Remote Group: It shows the IP and subnet of the Remote Group.
Remote Gateway: It shows the IP of the Remote Gateway.
Tunnel Test: Click the Connect button to verify the tunnel status. The test result will be updated in Status. If the
tunnel is connected, a Disconnect button will be available so you can disconnect the VPN connection.

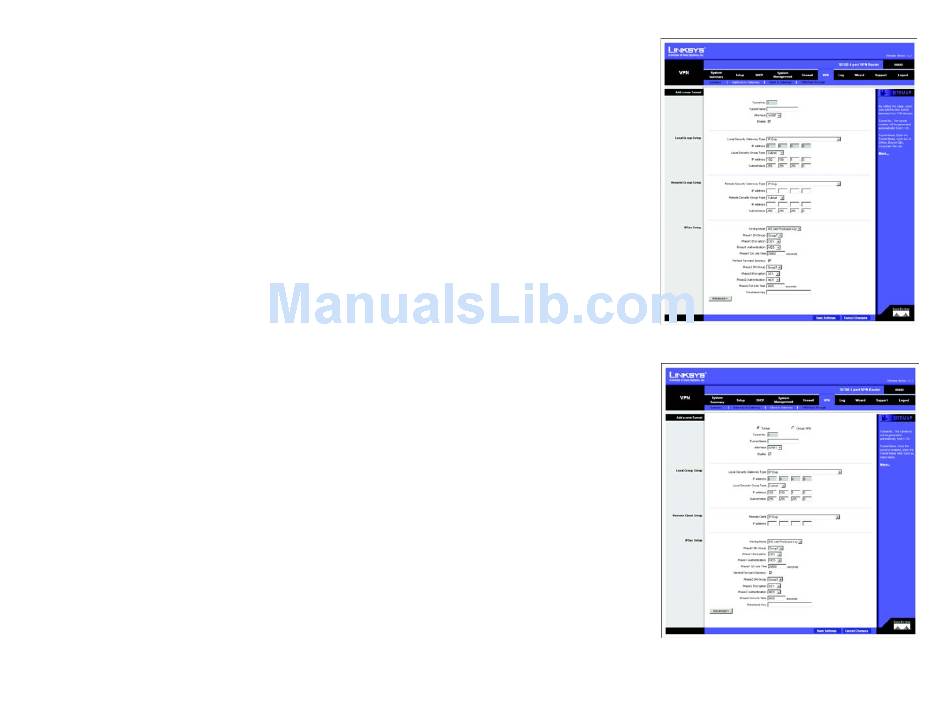

Figure 6-42: Gateway to Gateway

Configure: Edit and Delete.
Click the Edit button to link to the original setup page where you can change the settings. If you click the Edit
button, all of your tunnel settings will be deleted, and this tunnel will be available.
Tunnel(s) Enable and Tunnel(s) Defined: It shows the amount of Tunnel(s) Enable and Tunnel(s) Defined. The
amount of Tunnel Enable may be fewer than the amount of Tunnel Defined once the Defined Tunnels are disabled.
GroupVPN Status:
If you did not enable GroupVPN, it will be blank in GroupVPN Status.
Group ID Name: It shows the name you enter in Add new client to gateway tunnel page.
Connected Tunnels: It shows the amount of connected tunnels.
Phase2 Encrypt/Auth/Group: It shows the Encryption (DES/3DES), Authentication (MD5/SHA1) and Group (1/2/5)
that you chose in IPSec Setup field.

Figure 6-43: Client to Gateway

Chapter 6: Set Up and Configure the Router 40
VPN Tab - Summary
