Expert menu (TIG)

The Expert menu has adjustable parameters stored that don't require regular setting. The number of pa-
rameters shown may be limited, e.g. if a function is deactivated.
Display
5.4.4

Arc ignition

5.4.4.1

Liftarc

The arc ignites through contact with the workpiece:

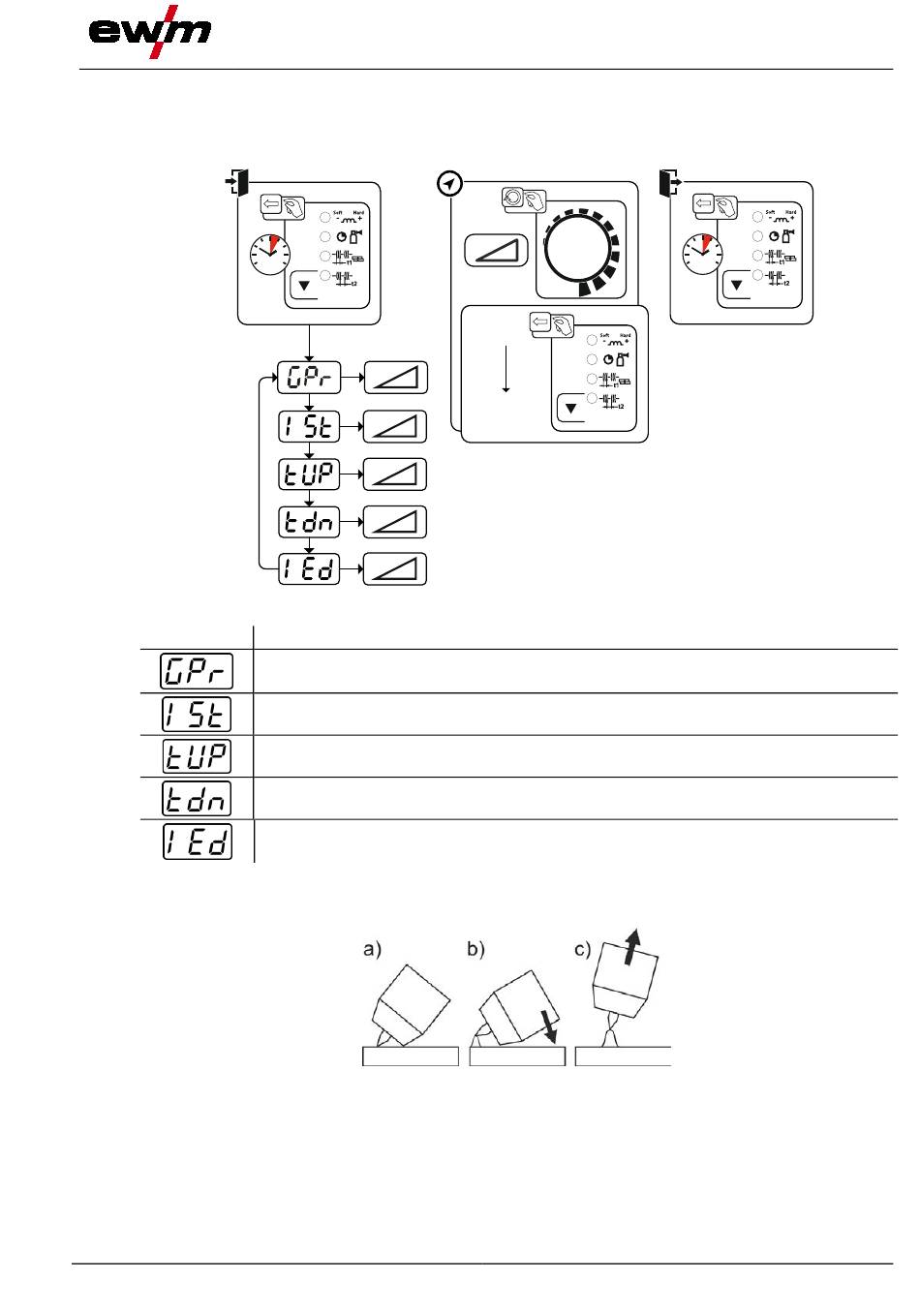

a) Carefully place the torch gas nozzle and tungsten electrode tip against the workpiece (lift arc current
flows independent of the set main current)
b) Angle the torch above the torch gas nozzle until the distance between electrode tip and workpiece is
approx. 2–3 mm (arc ignites, current increases to the set main current).
c) Lift the torch off and bring into normal position.
Complete the welding task: Remove the torch from the workpiece so that the arc extinguishes.
099-M183xB-EW501
18.7.2022
2s
Setting/selection

Gas pre-flow time

Start current (as percentage, dependent on main current)
Upslope time to main current
Downslope time
End current (as a percentage, dependent on main current)
