Welding power (operating point)

5.2.5.1

Selecting the welding parameter display mode

The operating point (welding power) can be displayed or set as the welding current, material thickness or
wire speed.
5.2.6

Arc length

If required, the arc length (welding voltage) can be corrected from -5 V to +5 V for the individual welding
task.
The basic settings are now completed. Other welding parameters have already been set optimally in the
factory; they can, however, be modified to suit individual requirements.
5.2.7

Arc dynamics (choke effect)

This function can be used to adjust the arc between a narrow, hard arc with deep penetration (positive
values) and a wide and soft arc (negative values).
099-M183xB-EW501
18.7.2022
Functional characteristics

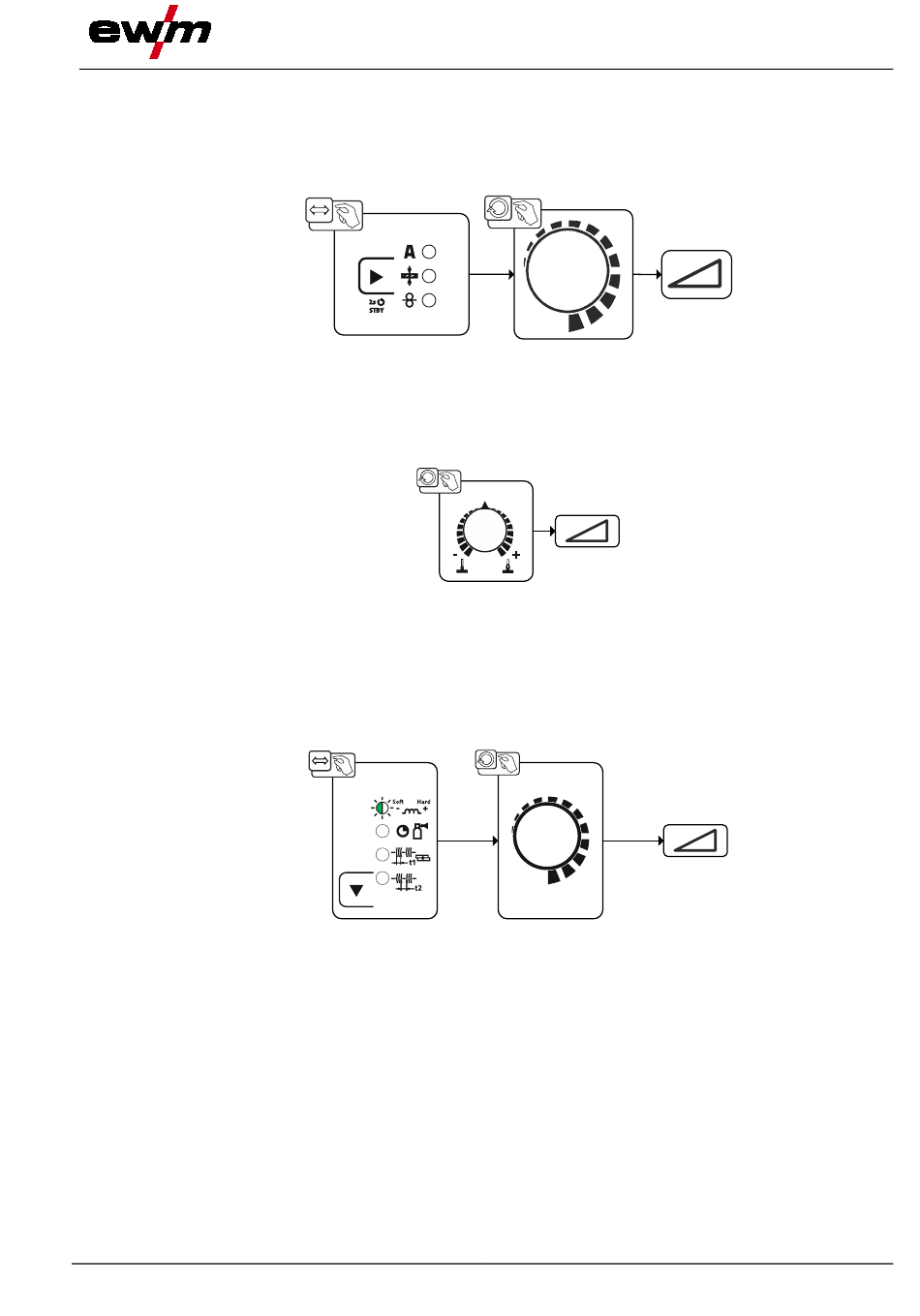

Figure 5-3
