- Page 1 GRKVX04 VAUXHALL ADAM 2012-2019 CORSA 2014-2019 INSTALLATION MANUAL V1.0522 This dash image is a visual representation for display purposes only. The information provided in this document is subject to change without notice due to changes and/or improvements to the product/s.
-
Page 2: About This Product

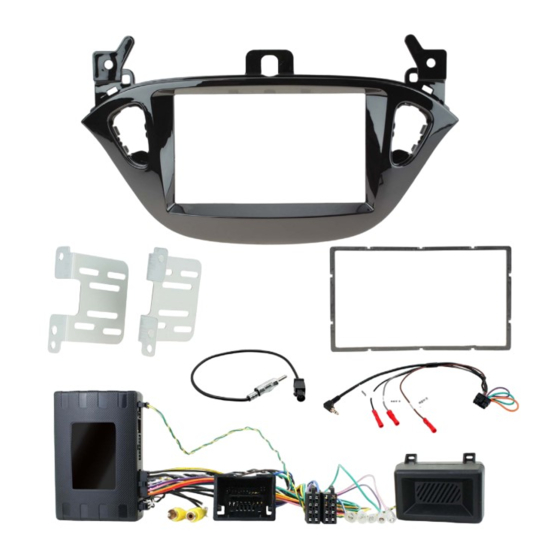

The GRKVX04 installation kit allows the retention of the vehicle’s steering wheel controls and helps to maintain the original aesthetic of the interior when installing a new car stereo. The GRKVX04 gives you everything you need for a complete install in one box. The components of this kit are compatible for the Vauxhall Adam (2012- 2019) and the Corsa (2014-2019) with basic, non-naviagtion factory stereos. - Page 3 FITTING GUIDE STEREO REMOVAL 1. Use a panel removal tool to remove air vent panel. Once free, remove from the dashboard whilst dis- connecting the hazard switch. 2. With the air vent panel removed, undo the 2x screws located at the top of the main fascia panel. 3.
- Page 4 FITTING GUIDE STEREO INSTALLATION CONT’D 9. Attach the additional wiring on the harness to the back of the stereo: Pink - Speed Pulse Green - Park Brake Purple - Reverse Yellow/Black - Mute Blue - Amp Remote Out 10. When all the above wires (and any additional accessories) have been connected, finally make the power connections between the stereo and the vehicles pre-existing connector.
-
Page 5: Vehicle Settings
CONFIGURATION MENU FUNCTIONALITY Configuration Menu Vehicle Settings Press and hold SOURCE to enter into the Infodapter Settings configuration menu. Language From here you will then be able to use the steering wheel controls to navigate through Version the various options and settings below. Back VEHICLE SETTINGS Configuration Menu... -
Page 6: Wiring Diagram
WIRING DIAGRAM Preferences PREFERENCES (SUB-MENU) Driver Position Right This sub-menu (found within the Infodapter Menu) allows you to adjust various details Park Assist Version specific to the vehicle. These include: Camera Connected Driver Position Reverse Priority Park Assist Select Left or Right depending upon whether the vehicle is left or right-hand drive. - Page 7 NOTES Flying Wire Outputs Pink - Speed Pulse Green - Park Brake Quadlock Connector Purple - Reverse Gear ISO Connector Connect to quadlock connector from vehicle Yellow/Black - Mute Connect to new stereo Blue - Amp Remote Out Female Yellow RCA Connector Connect reversing camera Camera Harness (optional)
-
Page 8: Technical Assistance
TECHNICAL ASSISTANCE If at any point you experience any problems and need any assistance before, during or after the installation process, please contact us via : Phone: 01420 470 605 E-Mail: help@topvehicletech.com Mon - Fri 9am - 5.30pm GMT If you would like to download a digital copy of this manual, or any other product, then please visit the www.topvehicletech.com website.
