GRKLR01
LAND ROVER
FREELANDER (MK2)
2006-2014
RANGE ROVER SPORT
2005-2009
INSTALLATION MANUAL
V1.0521

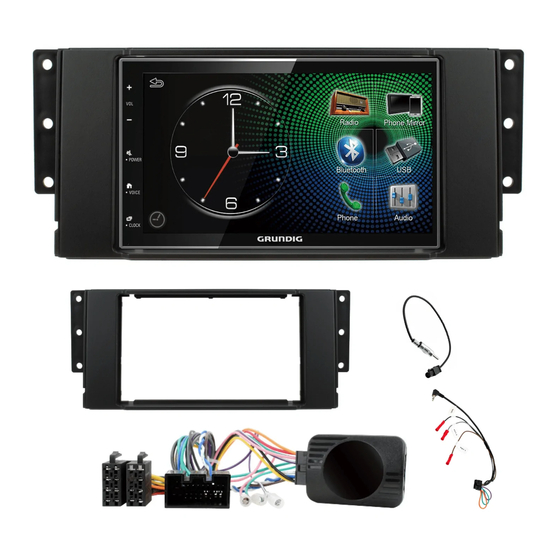

This dash image is a visual representation for display purposes only.
The information provided in this document is subject to change without notice due to changes and/or
improvements to the product/s.
www.topvehicletech.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TOP VEHICLE TECH GRKLR01
Summary of Contents for TOP VEHICLE TECH GRKLR01
- Page 1 GRKLR01 LAND ROVER FREELANDER (MK2) 2006-2014 RANGE ROVER SPORT 2005-2009 INSTALLATION MANUAL V1.0521 This dash image is a visual representation for display purposes only. The information provided in this document is subject to change without notice due to changes and/or improvements to the product/s.
-
Page 2: About This Product
The GRKLR01 installation kit allows for the retention of the vehicle’s steering wheel controls and helps maintain the original aesthetic of the interior when installing a new car stereo. The GRKLR01 gives you everything you need for a complete install in one box. The components of this kit are compatible for the Land Rover Freelander (MK2, 2006-2014) and the Land Rover Range Rover Sport (2005-2009) with non-amplified factory stereos. - Page 3 FITTING GUIDE STEREO REMOVAL 1. Remove the top of the gear shifter by pulling it up and out of the gear shaft. 2. Use a bojo tool to pry away both sides of the main fascia surround, then, lifting from the top, remove from the dashboard.
- Page 4 FITTING GUIDE STEREO INSTALLATION 1. Take the steering wheel control interface and attach the 14-way steering wheel harness connector to the relevant side. 2. Take the patch lead and only attach ‘Key 1’, ‘Key 2’ and ‘Ground’ to the corresponding wires on the stereo.
- Page 5 STEERING WHEEL CONTROL FUNCTIONALITY Please note: configuration layout may differ dependent on vehicle model. MODE — Original Button New Function 1. Mode 1. Source 2. Volume + 2. Volume + 3. Volume - 3. Volume - 4. Track + 4. Track + 5.
-
Page 6: Wiring Diagram
WIRING DIAGRAM Flying Wires OEM Specific Connector Pink - Speed Pulse Connect to relevant connector from vehicle Green - Park Brake ISO Connector Purple - Reverse Gear Connect to new stereo Main Wiring Loom Connector [14 Pin] Connect to Interface Box Interface Box Stereo Connection (Patch) Lead Connector [12 Pin]... - Page 7 NOTES www.topvehicletech.com...
-
Page 8: Technical Assistance
TECHNICAL ASSISTANCE If at any point you experience any problems and need any assistance before, during or after the installation process, please contact us via : Phone: 01420 470 605 E-Mail: help@topvehicletech.com Mon - Fri 9am - 5.30pm GMT If you would like to download a digital copy of this manual, or any other product, then please visit the www.topvehicletech.com website.
