- Page 1 GRKRT01 RENAULT TRAFIC 2014-2017 INSTALLATION MANUAL V1.0522 This dash image is a visual representation for display purposes only. The information provided in this document is subject to change without notice due to changes and/or improvements to the product/s. www.topvehicletech.com...
-
Page 2: About This Product

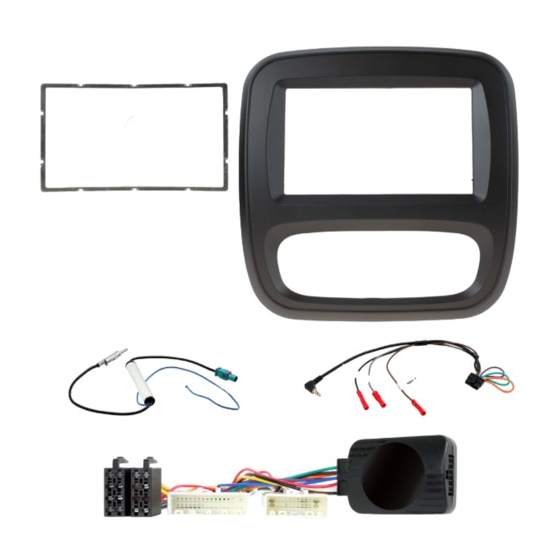

The GRKRT01 installation kit allows for the retention of the vehicle’s steering wheel controls and helps maintain the original aesthetic of the interior when installing a new car stereo. The GRKRT01 gives you everything you need for a complete install in one box. The components of this kit are compatible for the Renault Trafic (2014- 2017) with Visteon stereos. - Page 3 FITTING GUIDE STEREO REMOVAL 1. Use a panel removal tool to remove the main fascia panel from around the main head unit. 2. Remove the 2x screws that hold the main head unit into place. Once free, pull out of the dashboard and disconnect all of the wiring.
- Page 4 FITTING GUIDE STEREO INSTALLATION 1. Dependent on the style of steering wheel controls you will need to open the interface box and set the dipswitches. For more information see overleaf. 2. Take the steering wheel control interface and attach the 14-way steering wheel harness connector to the relevant side.
- Page 5 STEERING WHEEL CONTROL FUNCTIONALITY Please note: configuration layout may differ dependent on vehicle model. STYLE A STYLE B Front Back STYLE A Original Button New Function 1. Volume + 1. Volume + 2. Volume - 2. Volume - 3. Source 1&2.
-
Page 6: Wiring Diagram
WIRING DIAGRAM OEM Specific Connectors [20 & 32 Pin] ISO Connector Connect to relevant connectors from vehicle Connect to new stereo Main Wiring Loom Connector [14 Pin] Connect to Interface Box Interface Box Stereo Connection (Patch) Lead Connector [12 Pin] Connect to Interface Box Note: Must be connected first, before power connection... - Page 7 NOTES www.topvehicletech.com...
-
Page 8: Technical Assistance
TECHNICAL ASSISTANCE If at any point you experience any problems and need any assistance before, during or after the installation process, please contact us via : Phone: 01420 470 605 E-Mail: help@topvehicletech.com Mon - Fri 9am - 5.30pm GMT If you would like to download a digital copy of this manual, or any other product, then please visit the www.topvehicletech.com website.
