Imported by
Amart Furniture
For any assistance with assembly or for missing parts please phone
Amart Furniture
2022-07-20
Pty Ltd, Qld, Brisbane Australia.
, Customer Service Free call 1800 351 084

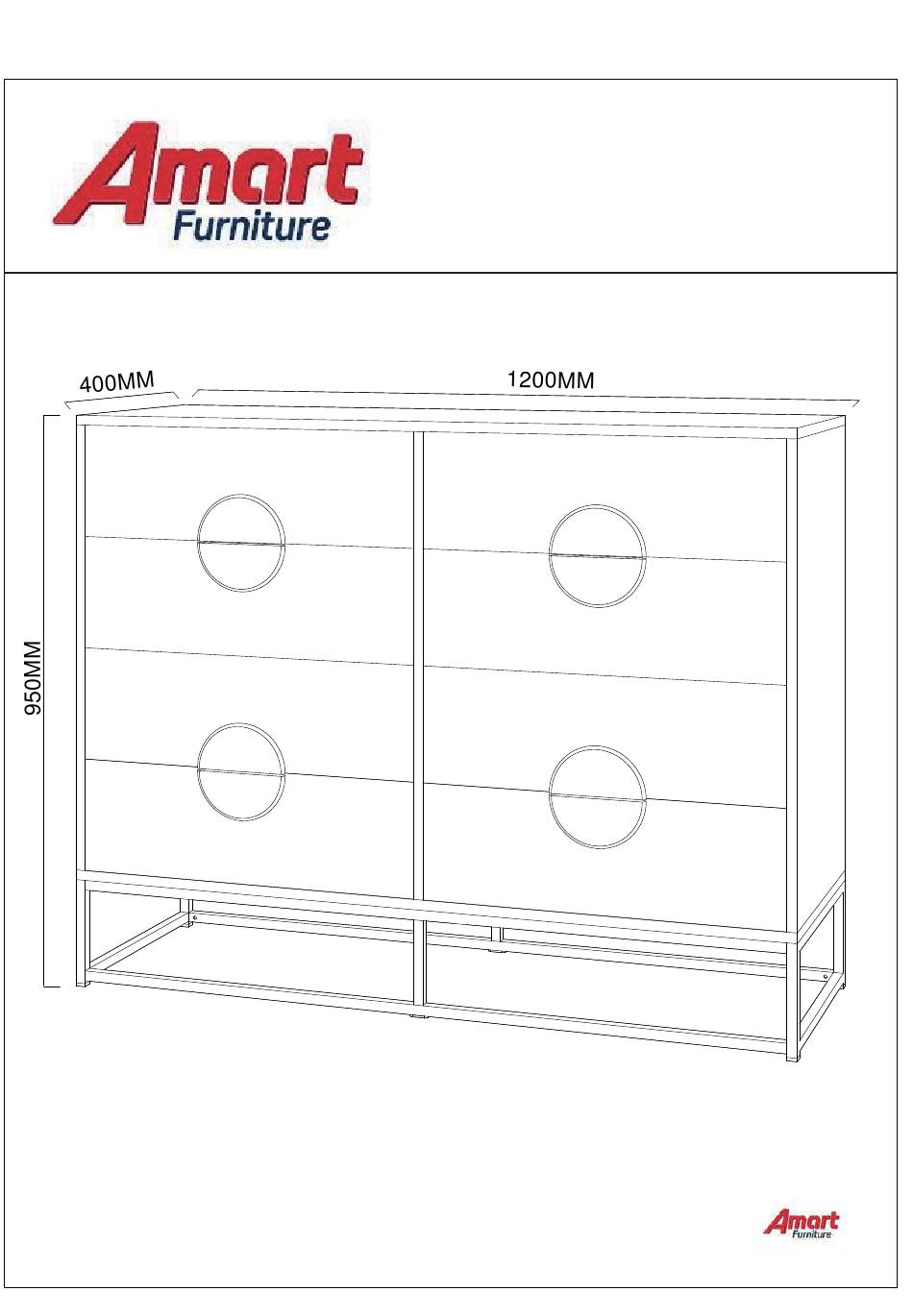

ASSEMBLY INSTRUCTION
VALKYRIE DRESSER
76055
ITEM CODE
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture , Customer Service Free call 1800 351 084
1
76055
Item Code:
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Amart Furniture VALKYRIE 76055
Summary of Contents for Amart Furniture VALKYRIE 76055
- Page 1 ITEM CODE Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture , Customer Service Free call 1800 351 084 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
- Page 2 76055 2022-07-20 Item Code:...
- Page 3 TOP PANEL DRAWER BACK PANEL x 8 LEFT SIDE PANEL DRAWER RIGHT SIDE PANEL x 8 RIGHT SIDE PANEL 1st/3rd DRAWER FRONT PANEL x 4 BOTTOM PANEL 2nd/4th DRAWER FRONT PANEL x 4 BACK PANEL x 4 WOODEN HANDLE x 8 TOP METAL BAR x 2 METAL SUPPORT BAR x 2 BOTTOM METAL BAR x 2...
- Page 4 CHECKLIST Before you start..1.Choose a clean,level,spacious assembly area. Avoid hard surfaces that may damage the product. 2.Check and ensure that you have all required contents for complete assembly. 3.Always read the assembly instructions carefully before beginning assembly. 4.The packaging and contents can be a choking hazard. Please keep out of reach of small children at all times.
- Page 5 CAM LOCK INSTALL METHOD AS FOLLOWS 1.1cm Step 1 Step 2 Step 3 Lock Fix cam nut into the bottom of hole then tighten it. 76055 2022-07-20 Item Code:...
- Page 6 Fix cam bolts (A) to top panel①. STEP 1: 24xL 2、Fix runners(K) to left side panel② and right side panel③ using STEP 2: screws(L).Fix cam bolts(A) to left side panel② and right side panel③. K(CL) K(CR) K(CR) K(CL) K(CL) K(CR) K(CR) K(CL) 76055...
- Page 7 24xL Fix runners(K) to middle panel using screws(L). STEP 3: K(CR) K(CL) K(CR) K(CL) K(CR) K(CL) K(CR) K(CL) 4、Attach crossing bars to middle panel using cam bolts(P), STEP 4: cam locks(B) and dowels(S). 76055 Item Code: 2022-07-20...
- Page 8 STEP 5: Attach left side panel② to the existing unit using cam locks(B) and dowels(C). Attach right side panel③ to the existing unit using cam locks(B) STEP 6: and dowels(C). 76055 Item Code: 2022-07-20...
- Page 9 Attach bottom panel④ to the existing unit using dowels(C) and STEP 7: screws(D). 8、Join four back panels⑤ with fillers(Q).Then insert back panels to STEP 8: the existing unit. 76055 Item Code: 2022-07-20...
- Page 10 STEP 9: Attach top panel① to the existing unit using cam locks(B) and dowels(C). Attach top metal bar⑥,bottom metal bar⑦ and metal support bar STEP 10: using screws(T) and allen key(I). 76055 Item Code: 2022-07-20...
- Page 11 Paste stickers(R) to cover the screws. STEP 11: STEP 12: Attach metal legs⑧ to the existing metal frame using screws(M) and allen key(I). 76055 Item Code: 2022-07-20...
- Page 12 12xN 12xO Attach bottom metal frame to the body using allen key(I),screws(N) STEP 13: and washers(O). 24xF 20xB 20xA STEP 14: Assemble drawers as shown in below diagram using screws(J),screws (F),cam locks(B) and cam bolts (A) . 76055 Item Code: 2022-07-20...
- Page 13 24xF 20xB 20xA STEP 15: Assemble drawers as shown in below diagram using screws(J),screws (F),cam locks(B) and cam bolts (A) . 24xL STEP 16: Fix runners(K) to the drawers using screws(L). K(DL) K(DR) 76055 Item Code: 2022-07-20...
- Page 14 24xL STEP 17: Fix runners(K) to the drawers using screws(L). K(DL) K(DR) Place drawers to the existing unit. STEP 18: 76055 Item Code: 2022-07-20...
- Page 15 16xG 16xH STEP 19: Fix plastic brackets(G) to back panel using screws(H). STEP 20: Fix wall anchor(E) onto the wall. WALL CAUTION：Always Lift Your Furniture When Moving /Relocating - Do Not Drag. Dragging Can Cause The Legs To Bend/Break. 76055 Item Code: 2022-07-20...
-
Page 16: Product Care
PRODUCT CARE: To protect your furniture,we suggest the following: *Avoid placing your furniture in direct sunlight. *Do not place furniture directly under windows. *Do not place sharp materials(knife,fork,etc) directly onto your furniture as sharp material may scrape and damage the finish. Do not place material with high temperature directly onto the surface of your furniture.
