Drawer Divider Installation

In order to make better use of the drawer to store different drinks or fruits, this freezer model is
equipped with two sets of drawer dividers.
1. Please find the divider accessories in the accessory plastic bag, the details of the accessories
are as follows:
Permanent divider seat (Left)
Permanent divider seat (Right)
Movable divider
(2 rotators, 2 U-shaped tubes)
Upper drawer S.S. pipe
Lower drawer S.S. pipe

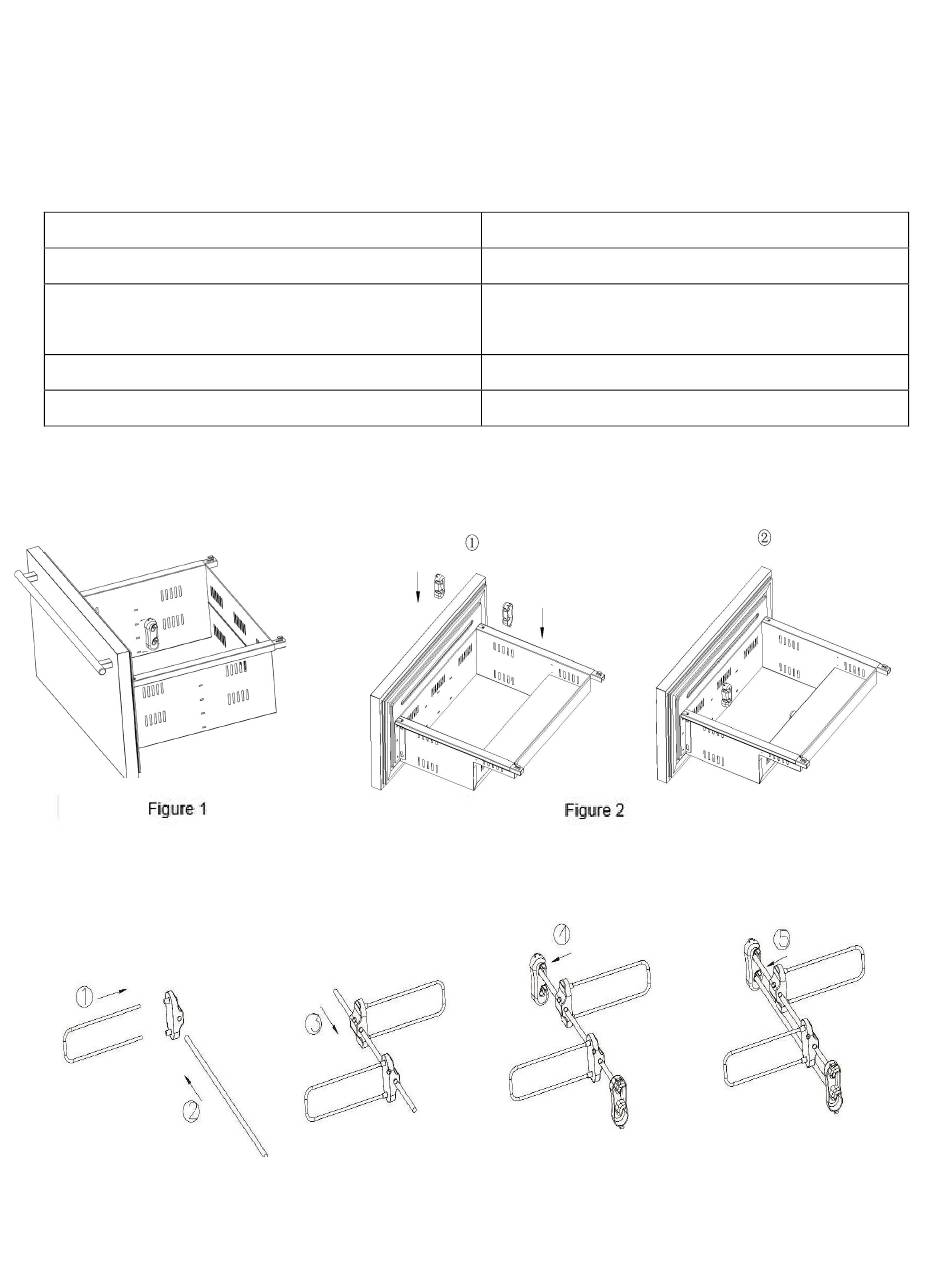

Follow these steps to install the left and right permanent divider seats on the upper
2.
drawer (figure 1) and lower drawer (figure 2)
Step 1: To assemble the movable divider, the parts that need to be prepared are: 2pcs
upper drawer pipe, 2 U-shaped tubes and 2 rotators, please follow below figure 3.
2pcs
2pcs
2 sets
2pcs
2pcs
Figure 3
