Forest Dental DentalEZ Installation Instruction

Routing Tubing and Wires to Utility Center

Tubings and
wires
Chair spiral
flex retaining
bracket

Reinstall Chair Covers

Wire connector
2. Reconnect the memory button wire
1. Lift up resting upper rear cover on chair
connector.
platform to reinstall lower cover. Using
both hands, spread the plastic cover and
push inward over bolts.
4. Using an 5/32" hex key, reinstall the screws
(2) on the sides of the upper rear cover.
Wire connector
6. Reinstall cantilever cover on the chair lift frame. Reconnect the indicator
wire connector (refer to step 2).
Forest Dental Equipment
Phone 800 . 423 . 3555  503 . 640 . 3012 | Fax 503 . 693 . 9715
1. Thread chair retaining bracket onto spiral
Utility center
flex tubing.
spiral flex
retaining 2. Thread spiral flex tubing through utility
bracket
center retaining bracket.
3. Route tubing and wires through spiral flex
tubing into utility center.
Release clip
3. Reinstall upper rear cover.
5. Turn rear side covers (2) clockwise to
reinstall.
Screws (2)
7. Reinstall pump cover using a 1/8" hex key.
8. Reconnect chair to mains power and verify operation.
DTE Oregon, Inc.
Address 6200 ne cherry drive hillsboro oregon 97124
| Digital sales@forestdental.com  forestdental.com
6.24.19 0097-026 Rev. -
 

Alert Symbols

The safety notices associated with the following should be given special attention when they appear in maintenance,
operating and emergency procedures in the guide.
CAUTION indicates that a particular procedure or precaution must be followed to avoid system irregularity or possible damage to the product.
NOTE indicates special information to improve the ease of maintaining the product, or to clarify important information.
WARNING indicates that the personal safety of the patient, end user or technician could be compromised by disregarding the WARNING.
Not following instructions may result in an injury.
CAUTION: Field modifications that alter the electrical and/or mechanical safety of Forest products conflict with agency construction file
requirements and are not sanctioned by Forest.
CAUTION: To avoid electrostatic discharge (ESD) damage to electronics, always wear grounded wrist strap attached to the facility ground
(eg: Banana plug) when handling circuit boards, chair controls and cables or working in the area of the electrical circuits.
NOTE: Installation Verification: Refer to Operator's Guide or Service Manual on our website at Forestdental.com; perform all operations.
If operations performing as intended installation complete. If operations not performing as intended, review steps in installation instructions to
confirm correct installation or call Forest Technical Support at 800-423-3555.
Tools Required: Standard and Metric Hex Key Set, Torque Wrench with Sockets, Wrench Set, Flat Head Screwdriver and Nitrile Gloves.

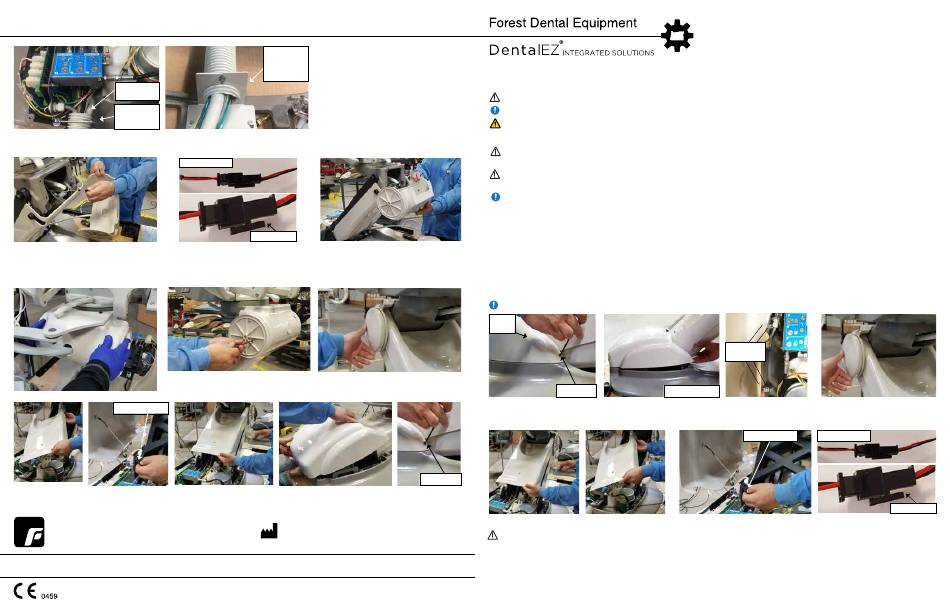

Removing Chair Covers

1. Position the chair's back and base in the fully up position.
2. Disconnect chair from mains power.
NOTE: If covers are already removed proceed to rear pivot mount kit on page 2.
Pump
cover
Screws (2)
3. Using a 1/8" hex key, remove 4. Lift back corner and slide pump cover forward to disengage tabs
the screws (2) on the sides of
the pump cover.
6. Lift upper cantilever cover off the chair lift frame.
CAUTION: A wire is connected to the indicator light. Be sure not to pull cover completely off before performing the next step.
 USA
4 of 4

Fusion Rear Pivot Mount
Installation Instruction
Tabs and
brackets(2)
Lift pump cover
from brackets and remove.
Wire connector
7. Disconnect indicator wire connector by pressing the release clip.
5. Turn rear side covers (2) counter
clockwise to remove and set aside.
Wire connector
Release clip
1 of 4
