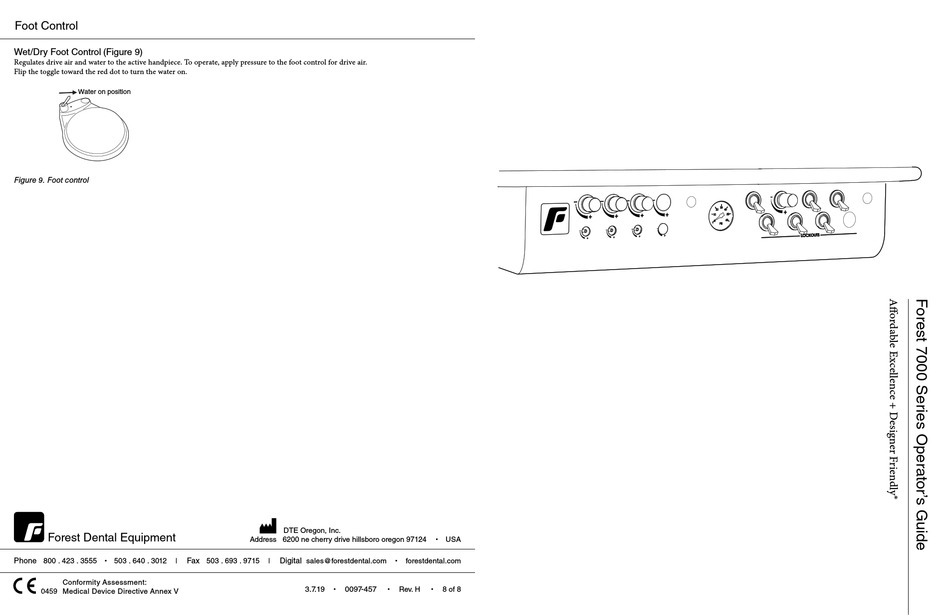

Foot Control

Wet/Dry Foot Control (Figure 9)

Regulates drive air and water to the active handpiece. To operate, apply pressure to the foot control for drive air.

Flip the toggle toward the red dot to turn the water on.

Water on position

Figure 9. Foot control

Forest Dental Equipment

Phone 800 . 423 . 3555  503 . 640 . 3012

Fax 503 . 693 . 9715

Conformity Assessment:

Medical Device Directive Annex V

DTE Oregon, Inc.

Address 6200 ne cherry drive hillsboro oregon 97124

Digital sales@forestdental.com



forestdental.com

3.7.19



0097-457



Rev. H



USA



8 of 8

Need help?

Do you have a question about the 7000 Series and is the answer not in the manual?

Page 1 Flip the toggle toward the red dot to turn the water on. Water on position Figure 9. Foot control DTE Oregon, Inc. Forest Dental Equipment Address 6200 ne cherry drive hillsboro oregon 97124  Phone 800 . 423 . 3555  503 . 640 . 3012 Fax 503 .
Page 2 With proper maintenance and service, Forest Dental products are designed for a defined “service life” under can only be achieved by flushing, monitoring and maintaining the dental unit water lines according to Forest Dental Unit Water Line Maintenance normal use (based on approximately 50 patients per week) of 5 years from the date of manufacture, with the exception of serviceable Operator’s Guide.
Page 3 Alternative water source (option) Allows switching from bottle to city water. WARNING: Refer to Forest Dental Unit Water Line Maintenance Operator’s Guide for monitoring and disinfection of your dental unit water Height Adjustment lines and dental unit reservoir bottle as well the monitoring of source water.
Page 4 The syringe is an instrument powered by a dental unit intended to supply air and water to the oral cavity of dental patients. Press water button to activate water; press air button to activate air. Pressing both buttons will create a mist. WARNING: Refer to Forest Dental Unit Water Line Maintenance Operator’s Guide for detailed procedures on Pressing both = mist maintaining syringe water line.
