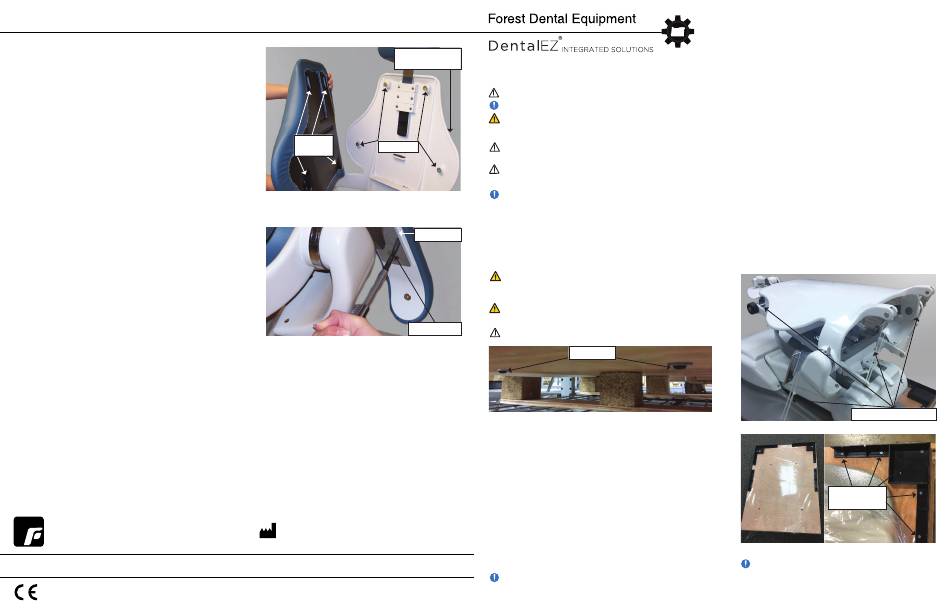

Forest Dental Fusion 3800 Installation Instruction

Upholstery Installation (continued)

Back Upholstery

1. Align the two upper and two lower studs on the chair back casting with
the slide holes on the back of the upholstered chair back.
2. Firmly press the upholstered chair back over the studs and slide the
upholstered chair back down until all four studs are locked into place
(Figure 11).

Armrest Upholstery

1. Place each upholstered armrest onto the chrome-plated arm supports.
2. Apply one drop Loctite 242 to hex screw threads and install underside of
each arm using a 5/32" hex key. (Figure 12).
Forest Dental Equipment
Phone 800 . 423 . 3555  503 . 640 . 3012 Fax 503 . 693 . 9715
|
Slide upholstered
chair back down
Slide
Studs (4)
holes (4)
Figure 11. Install back upholstery
Arm support
Hex screws (2)
Figure 12. Install armrest upholstery
DTE Oregon, Inc.
Address 6200 ne cherry drive hillsboro oregon 97124
Digital sales@forestdental.com
|  forestdental.com
6.24.19 0097-037
  Rev. -
Alert Symbols
The safety notices associated with the following should be given special attention when they appear in maintenance,
operating and emergency procedures in the guide.
CAUTION indicates that a particular procedure or precaution must be followed to avoid system irregularity or possible damage to the product.
NOTE indicates special information to improve the ease of maintaining the product, or to clarify important information.
WARNING indicates that the personal safety of the patient, end user or technician could be compromised by disregarding the WARNING.
Not following instructions may result in an injury.
CAUTION: To avoid electrostatic discharge (ESD) damage to electronics, always wear grounded wrist strap attached to the facility ground
(eg: Banana plug) when handling circuit boards, chair controls and cables or working in the area of the electrical circuits.
CAUTION: Field modifications that alter the electrical and/or mechanical safety of Forest products conflict with agency construction file
requirements and are not sanctioned by Forest.
NOTE: Installation Verification: Refer to Operator's Guide and perform all operations. If operations performing as intended installation complete.
If operations not performing as intended review steps in installation instructions to confirm correct installation or call Forest Technical Support
at 800-423-3555.
Tools Required: Wire Cutters, Adjustable Wrench, Standard Hex Key Set, Loctite 242 and Phillips Screwdriver.

Unpackage and Setup

WARNING: The chair weighs approximately 300 lbs. Use assistance
to remove the chair from the pallet. Failure to do so may result in
serious back injury.
WARNING: Do not connect the chair power cord until all shipping
hardware is removed.
CAUTION: Do not use the chairs arms to move or position chair.
Pallet bolts
Figure 1. Pallet underside
1. Use a 7/32" hex key to remove the four bolts holding the chair to the
pallet. The bolts are located on the underside of the pallet (Figure 1).
2. Remove the outer strapping and plastic, then remove the screws
from the cardboard box, one from each side and two from each end.
3. Remove the outer box top and set aside.
4. Remove the cardboard supports.
5. Remove all plastic wrapping and foam.
6. Use wire cutters to cut the support straps/zip ties located on both
sides of the chair. Two ties at either side secure the chair to the
pallet. The other ties secure the chair to itself (Figure 2).
7. To aid in pallet egress, remove the two corner supports held in
place by 10 screws (Figure 3).
USA 8. Remove the chair from the pallet and place it in the desired

location before doing any other installation.
9. Connect the chair base power cord to a power outlet.
NOTE: The chair base will automatically lift to the highest position.
 4 of 4
Fusion 3800 Operatory Chair
Installation Instruction
Support straps/zip ties
Figure 2. Packaged chair with shipping support straps
Corner support
screws (10)
Figure 3. Plastic pallet corner supports
NOTE: Taking into consideration the chair's specifications
and dimensions position the chair in its permanent location
on a smooth hard and level floor making sure nothing will
interfere with its movement.
