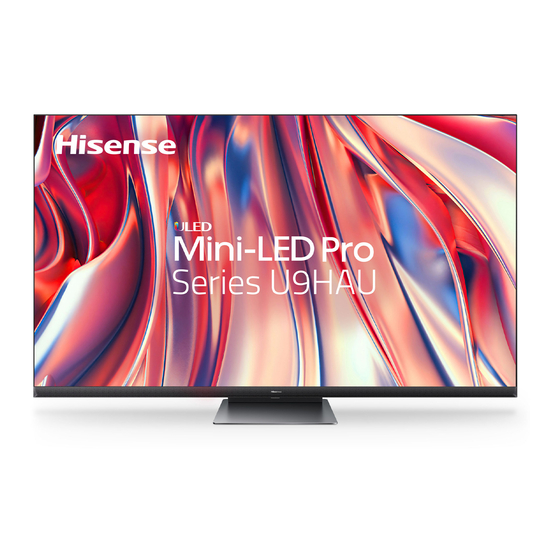

Summary of Contents for Hisense 65U9HAU
- Page 1 Bar code...
- Page 2 65U9HAU 75U9HAU Before using the TV, please read this guide thoroughly and retain it for future reference. English ES-A221008-1...
- Page 3 Find what you want This TV is equipped with a quick setup guide and embedded E-Manual. Before using the TV, please read the following documentation. Quick Setup Guide E-Manual Please read the quick setup guide to To get more information, please check the E-Manual.
- Page 4 Declaration...
- Page 5 Important Safety Precautions This symbol alerts user about the ATTENTION presence of a dangerous voltage not isolated inside the product which can RISK OF SHOCK ELECTRIC be sufficiently powerful to constitute a risk of electrocution. Do not open the back cover. This symbol alerts user about the In no case the user is allowed to operate presence of important operating...
- Page 6 Important Safety Precautions Warning A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: ALWAYS use cabinets or stands or mounting methods recommended by the manufacturer of the television set.
- Page 7 Important Safety Precautions Safeguards Please read the following safeguards for your TV and retain for future reference. Always follow all warnings and instructions marked on the television. 1. A note about safety and operating instructions Read and follow all safety and operating instructions, and retain them safely for future reference.
- Page 8 Important Safety Precautions 9. Power-Cord Protection Power- supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plug, wall outlets, and the point where they exit from the TV. MAIN plug on the power cord is used as the disconnect device, the disconnect device and socket-outlet shall be easily accessible.
- Page 9 Important Safety Precautions (c) If the TV has been exposed to rain or water. (d) If the TV does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the TV to its normal operation.
-
Page 10: Table Of Contents
Contents Figures and illustrations in this manual are provided for reference only and may differ from actual product appearance. Parts of the software function changes with the system upgrade. Contents Accessories List......................1 Installing the Stand ......................2 Installing the Wall Mount Bracket ...................6 TV Front..........................7 TV Rear ..........................8 Making Connections .....................10... -
Page 11: Installing The Stand
Installing the Stand or Wall Mount Bracket CAUTION Be sure to disconnect the AC power cord before removing a base stand or installing wall mount brackets. The display on your TV is fragile. Make sure the TV screen is not scratched or damaged by hard objects or from pressure. - Page 12 Installing the Stand or Wall Mount Bracket 5. Hook Part B to Part a1 as the illustration shows. Please note that the side with 4 pads should placed outward. Part B 6 Screws: M5×16 6. Then, secure Part B with 6 screws (M5×16).
- Page 13 Installing the Stand or Wall Mount Bracket 10. Slightly push the centre of the Part a2, then slightly pinch the both sides. Part a2 Part a2 11. Now, you can place the TV on a surface, and tear off all protective film on TV. For 75"...
- Page 14 Installing the Stand or Wall Mount Bracket 4. Use your hand to hold the Base Stand Part A and B together. Then use 7 screws (M5×16) to assemble Base Stand Part A and B. 7 Screws (M5×16) 5. Place all the 4 upper and side cushions into the box as the illustration shows. Assembled box 6.
-
Page 15: Installing The Wall Mount Bracket
Installing the Stand or Wall Mount Bracket 9. Use four screws(M5×16) to secure the assembled Base Stand to the TV tightly. 4 Screws (M5×16) 10. Now, the installation is finished. You can place the TV on a flat surface, and tear off all protective film on TV. -
Page 16: Tv Front
TV Front TV Front Remote sensor/Light sensor/Power indicator/Single button (Standby/Source) Item Description Receive remote signals from the remote control. Remote sensor Do not put anything near the sensor, as its function may be affected. Power indicator The light is white in standby mode. Press the button to turn the TV on. -
Page 17: Tv Rear
TV Rear TV Rear For 65" AC INPUT DIGITAL AUDIO OUT USB 2 DC 5V 0.5A(MAX) NOTES ANT2 Jack supports power supply for satellite antenna. (13/18V, 0.5A max.) Check the jacks for position and type before making any connections. Loose connections can result in image or color problems. Make sure that all connections are tight and secure. - Page 18 TV Rear For 75" AC INPUT DIGITAL AUDIO OUT USB 2 DC 5V 0.5A(MAX) NOTES ANT2 Jack supports power supply for satellite antenna. (13/18V, 0.5A max.) Check the jacks for position and type before making any connections. Loose connections can result in image or color problems. Make sure that all connections are tight and secure.
-
Page 19: Making Connections
Making Connections Connect an outdoor antenna or cable. Outdoor Antenna TV JACK Cable ANT OUT DVB-T/T2/C (not included) Antenna Cable (75Ω) VHF/UHF Antenna DVB-S/S2 (not included) Satellite antenna HDMI / AV Connect a HDMI / AV cable from an external AV equipment. No sound connection is needed for HDMI to HDMI connection. - Page 20 Making Connections HEADPHONE Connect Headphone for audio out of the TV. TV JACK ATTENTION Excessive sound pressure from earphones and headphones can cause hearing loss. Headphone (not included) NOTE Please make sure that the headphone you plug in is without microphone function, or it may not be supported.
- Page 21 Making Connections Connect the USB1.1 and USB2.0 devices such as hard drives, USB sticks and digital cameras for browsing photos, listening to music and watching movies. TV JACK DC 5V 1A(MAX) DC 5V 0.5A(MAX) NOTES When connecting a hard disk or a USB hub, always connect the mains adapter of the connected device to the power supply.
- Page 22 Making Connections LAN (Wired setup) Connect your TV to your network by connecting the LAN port on the back of your TV to an external modem or router using a LAN (Ethernet/Cat 5) cable. See the illustration below. · We recommend you to use a modem or router that supports Dynamic Host Configuration Protocol (DHCP).
-
Page 23: Remote Control
Remote Control Select input sources Power on/ Standby Select a channel or input numbers Display the Channel Display the Electronic Program Guide (DTV mode) List on the screen Special function buttons Quick setup Playpad keys OK / Display the on-screen Navigation buttons keyboard (Up/Down/Left/Right) - Page 24 Remote Control Turn on/off the teletext Microphone function Power Standby button: Select input sources Power on / Standby Select a channel or input numbers Display the Electronic Display the channel Program Guide (DTV mode) list on the screen Special function buttons Quick setup Playpad keys OK / Display the on-screen...
- Page 25 Remote Control Power on/ Standby Select input sources Quick access buttons to apps Physical Switch (Side view): Turn on to activate hands-free wake-up feature* Special function buttons Quick setup Playpad keys Navigation buttons OK / Display the on-screen keyboard (Up/Down/Left/Right) Exit the menu or exit Under the Menu or App, the application...
- Page 26 Remote Control Installing Batteries in the Remote Control NOTE: Check information according to the actual remote control in the accessory bag. 1. Slide the back cover to open the battery compartment of the remote control. 2. Insert two AA or AAA size batteries. Make sure to match the (+) and ( - ) ends of the batteries with the (+) and ( - ) ends indicated in the battery compartment.
- Page 27 Remote Control Pairing the Remote Control (only for Bluetooth remote control) Pair the remote to the TV after you power it on. Keep the remote control within 3 metres from the TV. Press any button (except power and mic button) to pair. NOTES In special cases, press and hold [ ] button to pair.
-
Page 28: Turning The Tv On For The First Time
Turning the TV on for the First Time Turning the TV on for the First Time 1. Connect the mains cable to the mains socket after you have completed all the connections. 2. The first time you turn the TV on, it will go straight into the Installation Guide. 3. -
Page 29: Specifications
Specifications Features, appearance and specifications are subject to change without notice. If you encountered difficulty when setting up your TV, we suggest you refer to the troubleshooting tips in the User Manual or the E-Manual. 65" 75" Item Without Stand 1452 ×... -
Page 30: Other Information
Other Information What is Freeview Plus? Freeview Plus is a new television service delivered via broadband providing a state of the art Electronic Program Guide (EPG) and seamless access to catch-up TV across the free-to-air networks with the simple press of a button. How does it work? First ensure the TV is connected to internet and an antenna system. - Page 31 ® Manufactured under license from IMAX Corporation. IMAX is a registered trademark of IMAX Corporation in the United States and/or other countries. For DTS patents, see http://patents. dts.com. Manufactured under license from DTS Licensing Limited. DTS and the DTS logo are registered trademarks or trademarks of DTS, Inc.
