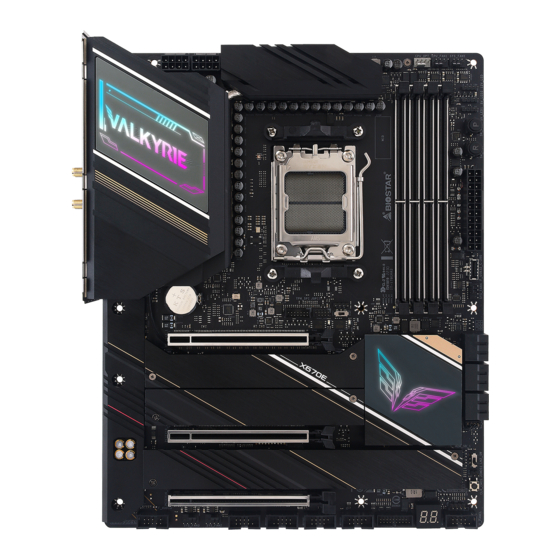

Biostar X670E VALKYRIE User Manual
Hide thumbs Also See for X670E VALKYRIE:

Advertisement

Quick Links

BIOS User Guide
X670E VALKYRIE
BIOS Update �������������������������������������������������������������������������������������� 2
UEFI BIOS Setup ��������������������������������������������������������������������������������� 6
EZ Mode �������������������������������������������������������������������������������������������� 7
A�I FAN Control ���������������������������������������������������������������������������������� 8
VIVID LED Control ������������������������������������������������������������������������������ 9
1� Main Menu ���������������������������������������������������������������������������������� 10
2� Advanced Menu ��������������������������������������������������������������������������� 11
3� Chipset Menu ������������������������������������������������������������������������������� 28
4� Boot Menu ����������������������������������������������������������������������������������� 31
5� Security Menu ������������������������������������������������������������������������������ 33
6� Tweaker Menu ����������������������������������������������������������������������������� 34
7� Save & Exit Menu ������������������������������������������������������������������������� 41

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X670E VALKYRIE and is the answer not in the manual?

Questions and answers

Summary of Contents for Biostar X670E VALKYRIE

  • Page 1: Table Of Contents

    BIOS User Guide X670E VALKYRIE BIOS Update �������������������������������������������������������������������������������������� 2 UEFI BIOS Setup ��������������������������������������������������������������������������������� 6 EZ Mode �������������������������������������������������������������������������������������������� 7 A�I FAN Control ���������������������������������������������������������������������������������� 8 VIVID LED Control ������������������������������������������������������������������������������ 9 1� Main Menu ���������������������������������������������������������������������������������� 10 2� Advanced Menu ��������������������������������������������������������������������������� 11 3� Chipset Menu ������������������������������������������������������������������������������� 28 4�...
  • Page 2: Bios Update

    The BIOS can be updated using either of the following utilities: •  BIOSTAR BIOS-FLASHER: Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM.
  • Page 3 X670E VALKYRIE 7. A dialog pops out after BIOS flash is completed, asking you to restart the system. Press the <Y> key to restart system. 8. While the system boots up and the full screen logo shows up, press <DEL> key to enter BIOS setup.
  • Page 4 Then, the BIOS Update is completed. BIOS Update Utility (through a BIOS file) 1. Installing BIOS Update Utility from the DVD Driver. 2. Download the proper BIOS from http://www.biostar.com.tw/ 3. Launch BIOS Update Utility and click the “Update BIOS” button on the main screen.
  • Page 5 X670E VALKYRIE 5. Choose the location for your BIOS file in the system. Please select the proper BIOS file, and then click on “Open”. It will take several minutes, please be patient. 6. After the BIOS Update process is finished, click on “OK”...
  • Page 6: Uefi Bios Setup

    UEFI BIOS Setup Introduction The purpose of this manual is to describe the settings in the AMI UEFI BIOS Setup program on this motherboard. The Setup program allows users to modify the basic system configuration and save these settings to NVRAM. UEFI BIOS determines what a computer can do without accessing programs from a disk.
  • Page 7: Ez Mode

    X670E VALKYRIE EZ Mode In EZ mode, it allows you to quickly operate the basic system setting. Press <F7> to display the EZ Mode menu. 1� System Time: Display the system clock. 2� Boot Priority Bar: you can move the device icons to change the boot priority.
  • Page 8: A�I Fan Control

    A�I FAN Control Press <F5> to display the A.I FAN Control menu. 1� CPU FAN/ CPU OPT/ System1/ System2/ System3/ MOS FAN: Click button to set the status value of CPU FAN, SYSTEM FAN and MOS FAN. 2� PWM/ Temperature Panel: According to the fan PWM value corresponding to CPU and system temperature to adjust the fan speed.
  • Page 9: Vivid Led Control

    X670E VALKYRIE VIVID LED Control Press <F6> to display the VIVID LED DJ Control menu. 1� LED SPARKLE: Allows to you choose sparkle of the LEDs. •  Permanent: LEDs are constantly lit. •  Breath: LEDs gradually flash on and off.
  • Page 10: 1� Main Menu

    1� Main Menu Once you enter AMI UEFI BIOS Setup Utility, the Main Menu will appear on the screen providing an overview of the basic system information. 1-1 BIOS Information It shows system information including UEFI BIOS version, Project Code, Model Name, Build Date and etc.
  • Page 11: 2� Advanced Menu

    X670E VALKYRIE 2� Advanced Menu The Advanced Menu allows you to configure the settings of CPU, Super I/O, Power Management, and other system devices. Note »  » Beware of that setting inappropriate values in items of this menu may cause system to malfunction. 2. Advanced Menu | 11...
  • Page 12 2-1 Trusted Computing Trusted Computing Settings. 2-1-1 Security Device Support This item enables or disables BIOS support for security device. O.S will not show Security Device. TCG EFI protocol and INT1A interface will not be available. 2-1-2 TPM Type This item allows you to selects TPM device: PTT or dTPM. PTT - Enables PTT in SkuMgr dTPM 1.2 - Disables PTT/ dTPM will be disabled and all data saved on it will be lost.
  • Page 13 X670E VALKYRIE 2-2 ACPI Settings/WakeUp Event control System ACPI Parameters and Wakeup event control. 2-2-1 Enable Hibernation This item enables or disables system ability to Hibernate (0S/S4 sleep state). This option may not be effective with some 0Ss. 2-2-2 ErP Control When ErP Enabled.
  • Page 14 2-3 SATA Configuration SATA Devices Configuration. 2-3-1 OnChip SATA function Enable/Disable OnChip SATA function. 2-3-2 OnChip SATA Type Select OnChip SATA Type. 2-3-3 NVMe RAID mode Enable or disable NVMe RAID mode. 14 | 2. Advanced Menu...
  • Page 15 X670E VALKYRIE 2-4 AMD CBS AMD CBS Setup Page. 2. Advanced Menu | 15...
  • Page 16 2-4-1 UMC Common Options UMC Common Options. DDR Options DDR Options DDR RAS DDR RAS DDR Security Disable Memory Error Injection DDR ECC Configuration DDR Addressing Options Chipselect Interleaving Address Hash Bank Address Hash CS Address Hash Subchannel BankSwapMode DDR Training Options DFE Read Training DRAM PDA Enumerate ID Programming Mode TX DFE Taps...
  • Page 17 X670E VALKYRIE DDR Memory Features Memory Context Restore 2-4-2 NBIO Common Options NBIO Common Options. IOMMU Enable/Disable IOMMU PCIe ARI Support Enable/Disable ARI PCIe All Port ECRC Enable/Disable PCIE all port ECRC Advanced Error Reporting (AER) Enable/Disable support for Advanced Error Reporting (AER)
  • Page 18 2-5 IT8625 Super IO Configuration System Super IO Chip Parameters. 2-5-1 Super IO Chip 2-5-2 Serial Port 2 Configuration Serial Port This item enables or disables serial Port. Change Settings This item allows you to select an optimal settings for Super IO Device. 18 | 2.
  • Page 19 X670E VALKYRIE 2-6 Hardware Monitor Monitor hardware status. 2-6-1 A�I TP Control This item enables or disables A.I TP Control. 2-6-2 Shutdown Temperature This item allows you to set up the CPU shutdown Temperature. 2. Advanced Menu | 19...
  • Page 20 2-7 CPU Configuration CPU Configuration Parameters. 2-7-1 PowerNow Enable/Disable the generation of ACPI _PPC, _PSS, and _PCT objects. 2-7-2 NX Mode Enable/Disable No-execute page protection Function. 2-7-3 SVM Mode Enable/Disable CPU Virtualization. 2-7-4 CPB Mode Specifies the method of core performance boost enablement. 2-7-5 Global C-state Control Controls IO based C-state generation and DF C-states.
  • Page 21 X670E VALKYRIE 2-8 PCI Subsystem Settings PCI Subsystem Settings 2-8-1 Above 4G Decoding Globally Enables ro Disables 64bit capable Devices to be Decoded in Above 4G Address Space (only if system Supports 64bit PCI Decoding). 2-8-2 Re-Size BAR Support If system has Resizable BAR capable PCIe Devices, this option Enables or Disables Resizable BAR Support.
  • Page 22 2-9 USB Configuration USB Configuration Parameters. 2-9-1 Legacy USB Support The item allows you to enable Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications. 2-9-2 Legacy USB3.0 Support Enable/Disable legacy USB3.0 support.
  • Page 23 X670E VALKYRIE 2-10 Network Stack Configuration Network Stack Settings. 2-10-1 Network Stack Enable/Disable LEFI Network Stack. 2. Advanced Menu | 23...
  • Page 24 2-11 CSM Configuration CSM configuration: Enable/Disable, Option ROM execution settings, etc. 2-11-1 CSM Support Enable/Disable CSM Support. 24 | 2. Advanced Menu...
  • Page 25 X670E VALKYRIE 2-12 NVMe Configuration NVMe Device Options Settings. 2-13 Thunderbolt Configuration Thunderbolt Configuration 2-13-1 Thunderbolt Add-in Card Enable Thunderbolt Add-in Card Support 2. Advanced Menu | 25...
  • Page 26 2-14 AMD Overclocking AMD Overclocking Setup Page. 2-15 Intel(R) Ethernet Controller (3) I225-V Configure Gigabit Ethernet device parameters. 26 | 2. Advanced Menu...
  • Page 27: 3� Chipset Menu

    X670E VALKYRIE 3� Chipset Menu This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system which allows I/O devices to operate at speeds nearing the speed of the CPU itself uses when communicating with its own special components.
  • Page 28 3-3 North Bridge North Bridge Parameters. 3-3-1 GFX Configuration GFX Configuration. 3-3-2 Above 4GB MMIO Limit Select Above 4GB MMIO Limit to 38~43 bits limit. This option works only when ‘Above 4G decoding’ is enabled. 28 | 3. Chipset Menu...
  • Page 29 X670E VALKYRIE 3-4 Onboard Device Onboard Device Parameters. 3-4-1 Intel PCIE NIC Enable/Disable Intel PCIE NIC 3. Chipset Menu | 29...
  • Page 30: 4� Boot Menu

    4� Boot Menu This menu allows you to setup the system boot options. 4-1 Setup Prompt Timeout This item sets number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting. 4-2 Bootup NumLock State This item selects the keyboard NumLock state. 4-3 Full Screen Logo Display This item enables or disables Full Screen Logo Show function.
  • Page 31 X670E VALKYRIE SATA Support If Last Boot HDD Only, Only last boot HDD device will be available in Post. If All Sata Devices, all SATA devices, all SATA devices will be available in OS and Post. VGA Support If Auto, only install Legacy OpRom with Legacy OS and logo would NOT be shown during post.
  • Page 32: 5� Security Menu

    5� Security Menu 5-1 Administrator Password This item sets Administrator Password. 5-2 User Password This item sets User Password. 5-3 Secure Boot Secure Boot configuration. 5-3-1 Secure Boot Secure Boot feature is active if secure boot is Enabled, when Platform Key(PK) is enrolled and the System is in User mode.
  • Page 33: 6� Tweaker Menu

    X670E VALKYRIE 6� Tweaker Menu This submenu allows you to change voltage and clock of various devices. Note »  » We suggest you use the default setting. Changing the voltage and clock improperly may damage the  device. »  » The options and default settings might be different by RAM or CPU models. »  » Beware of that setting inappropriate values in items of this menu may cause system to malfunction.  - Values in Red: Danger  - Values in Yellow: Warning  - Values in White: Normal 6. Tweaker Menu | 33...
  • Page 34 6-1 CPU Base Clock This item CPU Base Clock. 6-2 Spread Spectrum This item Spread Spectrum can help reduce nosie and interference. (EMI) 6-3 A�I Switch Mode A.I Switch Mode for OC. 6-4 CPU Ratio Set the CPU Ratio. 6-5 GFX Frequency(MHz) GFX frequency in MHz.
  • Page 35 X670E VALKYRIE 6-10 DRAM Timing Configuration DRAM Timing Configuration. CAS latency tRCD RAS to CAS delay Row recharge time tRAS Row active strobe Row cycle time tFAW Specify Tfaw tRFC Auto refresh row cycle time tRFC2 Auto refresh row cycle time...
  • Page 36 tRRD_S Activate to Activate Delay Time, different bank group tRRD_L Activate to Activate Delay Time, same bank group tWTR_S Minimum Write to Read Time, different bank group tWTR_L Minimum Write to Read Time, same bank group DRAM Non-SPD Timing DRAM Non-SPD Timing DRAM Bus Configuration DRAM Bus Configuration Power Down...
  • Page 37 X670E VALKYRIE tRDRDSc Write to write timing same DIMM same chip select tRDRDSd Write to write timing same DIMM same chip select tRDRDDd Write to write timing same DIMM same chip select tRDWR This sets the tWRTTO time tWRRD Specify the write to read delay when different DIMMs...
  • Page 38 DRAM Rtt Park Select the DRAMs On-die Termination impedance for RTT_PARK DRAM DQS Rtt Park Select the DRAMs On-die Termination impedance for DQS_RTT_PARK 6-11 CPU Vcore Voltage CPU Vcore Voltage Contril. 6-12 CPU SOC Voltage CPU SOC Voltage Control. 6-13 CPU MISC Voltage CPU MISC Voltage Control.
  • Page 39 X670E VALKYRIE 6-21 Memory Insight Memory Insight. 6. Tweaker Menu | 39...
  • Page 40: 7� Save & Exit Menu

    7� Save & Exit Menu This menu allows you to load the optimal default settings, and save or discard the changes to the BIOS items. 7-1 Discard Changes and Exit Abandon all changes made during the current session and exit setup. 7-2 Save Changes and Reset Reset the system after saving the changes.
