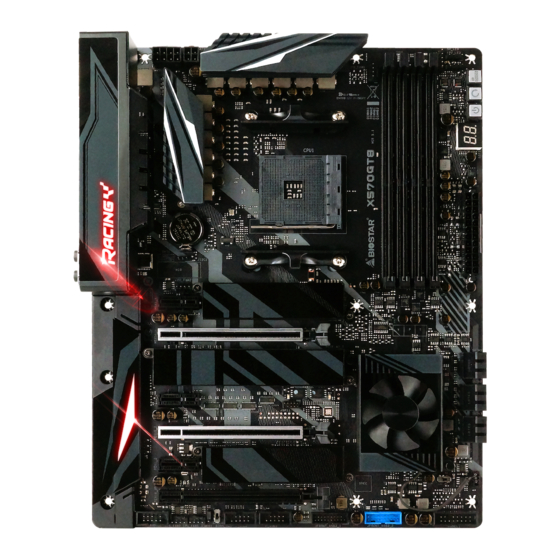

Biostar X570GT8 Manual
Hide thumbs Also See for X570GT8:
Table of Contents

Advertisement

Quick Links

This equipment has been tested and found to comply with the limits of a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. There is no guarantee that interference
will not occur in a particular installation.
The vendor makes no representations or warranties with respect to the contents here and
specially disclaims any implied warranties of merchantability or fitness for any purpose. Further
the vendor reserves the right to revise this publication and to make changes to the contents here
without obligation to notify any party beforehand.
Duplication of this publication, in part or in whole, is not allowed without first obtaining the
vendor's approval in writing.
The content of this user's manual is subject to be changed without notice and we will not be
responsible for any mistakes found in this user's manual. All the brand and product names are
trademarks of their respective companies.
Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
il tuo prodotto tra le
migliori offerte di Schede Madri

FCC Information and Copyright

Dichiarazione di conformità sintetica
Ai sensi dell'art. 2 comma 3 del D.M. 275 del
30/10/2002
Si dichiara che questo prodotto è conforme
alle normative vigenti e soddisfa i requisiti
essenziali richiesti dalle direttive
2004/108/CE, 2006/95/CE e 1999/05/CE
quando ad esso applicabili
Biostar X570GT8
Short Declaration of conformity
We declare this product is complying with the
laws in force and meeting all the essential
requirements as specified by the directives
2004/108/CE, 2006/95/CE and 1999/05/CE
whenever these laws may be applied
o cerca

Advertisement

Chapters

Table of Contents
loading

Summary of Contents for Biostar X570GT8

  • Page 1: Fcc Information And Copyright

    Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Biostar X570GT8 o cerca il tuo prodotto tra le migliori offerte di Schede Madri FCC Information and Copyright This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 2: Table Of Contents

    Table Of Contents FCC Information and Copyright ������������������������������������������������������������������������������� 1 Chapter 1: Introduction ������������������������������������������������������������������������������������������� 3 1.1 Before You Start ........................3 1.2 Package Checklist ........................ 3 1.3 Specifications ........................4 1.4 Rear Panel Connectors ......................6 1.5 Motherboard Layout ......................7 Chapter 2: Hardware installation �����������������������������������������������������������������������������...
  • Page 3: Chapter 1: Introduction

    X570GT8 Chapter 1: Introduction 1�1 Before You Start Thank you for choosing our product. Before you start installing the motherboard, please make sure you follow the instructions below: •  Prepare a dry and stable working environment with sufficient lighting. •  Always disconnect the computer from power outlet before operation.
  • Page 4: Specifications

    Socket AM4 supports AMD® A-series APU / Ryzen APU / Ryzen CPU CPU Support Maximum CPU TDP (Thermal Design Power): 95Watt * Please refer to www.biostar.com.tw for CPU support list. Chipset AMD® X570 Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2667 Supports Dual Channel DDR4 2933(OC)/ 3200(OC)/ 3600(OC)/ 4000(OC)/ 4400(OC) 4 x DDR4 DIMM Memory Slot, Max.
  • Page 5 2x LED Header (12V/ 5V) Form Factor ATX Form Factor, 305 mm x 244 mm Windows 10(64bit) OS Support Biostar reserves the right to add or remove support for any OS with or without notice. Chapter 1: Introduction | 5...
  • Page 6: Rear Panel Connectors

    1.4 Rear Panel Connectors Note   » DVI-D / HDMI / DP output require an AMD family processor with intedrated graphics.   » Since the audio chip supports High Definition Audio Specification, the function of each audio jack can be defined by software. The input / output function of each audio jack listed above represents the default setting. However, when connecting external microphone to the audio port, please use the Line In and Mic In audio jack.   » Maximum resolution DVI-D: 1920 x 1200 @60Hz DP: 4096 x 2160 @60Hz HDMI: 4096 x 2160 @60Hz, compliant with HDMI 2.0   » The speaker configuration option of Line In / Side: 5.1 channel for Line In / 7.1 channel for Side.   » When using the front HD audio jack and plug in the headset / microphone , the rear sound will be automatically Disabled. 6 | Chapter 1: Introduction...
  • Page 7: Motherboard Layout

    X570GT8 1.5 Motherboard Layout Note »  represents the 1st pin. Chapter 1: Introduction | 7...
  • Page 8: Chapter 2: Hardware Installation

    Chapter 2: Hardware installation 2.1 Install Central Processing Unit (CPU) Step 1: Locate the CPU socket on the motherboard Step 2: Pull the socket locking out from the socket and then raise the lever up to a 90-degree angel. Step 3: Look for the white triangle on socket, and the gold triangle on CPU should point towards this white triangle.
  • Page 9: Install A Heatsink

    X570GT8 Step 4: Hold the CPU down firmly, and then close the lever to locked the position Note »  Please turn off the Power Supply before remove the CPU socket. 2.2 Install a Heatsink <TypeA> Step 1: Place the heatsink and fan assembly onto the retention frame. Match the heatsink clip with the socket mounting-lug.
  • Page 10 <TypeB> Step 1: Remove the heatsink and fan assembly bracket on the motherboard and keep the cooler backplane under the motherboard. Step 2: Place the heatsink and fan assembly on top of the installed CPU and make sure that the fan cable is closest to the CPU fan connector.
  • Page 11: Connect Cooling Fans

    X570GT8 2.3 Connect Cooling Fans These fan headers support cooling-fans built in the computer. The fan cable and connector may be different according to the fan manufacturer. CPU_FAN1/ 2: CPU Fan Header PWM Mode DC Mode Pin Assignment Pin Assignment...
  • Page 12: Install System Memory

    2.4 Install System Memory DDR4 Modules Step 1: Unlock a DIMM slot by pressing the Step 2: Insert the DIMM vertically and retaining clips outward. Align a DIMM on the firmly into the slot until the retaining clips slot such that the notch on the DIMM matches snap back in place and the DIMM is properly the break on the slot.
  • Page 13: Expansion Slots

    X570GT8 2.5 Expansion Slots PEX16_1: PCI-Express (Gen3/ Gen4) x16 Slot •  PCI-Express 3.0 compliant. Theoretical maximum bandwidth using two slots simultaneously is 16GB/s for each slot, a total of 32GB/s. •  PCI-Express 4.0 compliant. Theoretical maximum bandwidth using two slots simultaneously is 32GB/s for each slot, a total of 64GB/s.
  • Page 14 PCIE-M2_2: M.2 (Key M) Slot •  The M.2 slot supports M.2 Type 2242/2260/2280/22110 SSD module. When installing M.2 SSD module, please place the screw and hex pillar to correct position. •  Support M.2 SATA III (6.0 Gb/s) module and M.2 PCI Express module up to Gen4 x4 (64Gb/s), which depends only on Ryzen 3rd Gen Matisse.
  • Page 15: Jumper & Switch Setting

    X570GT8 2.6 Jumper & Switch Setting The illustration shows how to set up jumpers. When the jumper cap is placed on pins, the jumper is “close”, if not, that means the jumper is “open”. Pin opened Pin closed Pin 1-2 closed JCMOS1: Clear CMOS Jumper The jumper allows users to restore the BIOS safe setting and the CMOS data.
  • Page 16 BIOS_SW1: Dual BIOS Switch The Dual BIOS Switch allows you to choose one of the BIOS ROMs (ROM1A/ROM2A) for boot Main BIOS (ROM1A) Enabled The LED indicator (ROM1_LED1) will light and the Main BIOS is enabled. Backup BIOS (ROM2A) Enabled The LED indicator (ROM2_LED1) will light and the Backup BIOS is enabled.
  • Page 17: Headers & Connectors

    X570GT8 2.7 Headers & Connectors ATXPWR1: ATX Power Source Connector For better compatibility, we recommend to use a standard ATX 24-pin power supply for this connector. Make sure to find the correct orientation before plugging the connector. Assignment Assignment +3.3V +3.3V...
  • Page 18 Note »  Before you power on the system, please make sure that both ATXPWR1/ ATXPWR2/ ATXPWR3 connectors have been plugged-in. »  Insufficient power supplied to the system may result in instability or the peripherals not functioning properly. Use of a PSU with a higher power output is recommended when configuring a system with more power-consuming devices. PANEL1: Front Panel Header This 16-pin header includes Power-on, Reset, HDD LED, Power LED, and speaker connection. Pin Assignment Function Pin Assignment Function Speaker Connector Speaker Power LED (+) Power HDD LED (+) Hard drive 10 Power LED (+) 11 HDD LED (-) 12 Power LED (-)
  • Page 19 X570GT8 JFRONT_USB3_1/ 3_2: Header for USB 3.1 Gen1 (5Gb/s) Ports at Front Panel This header allows user to add additional USB ports on the PC front panel, and also can be connected with a wide range of external peripherals. •  JFRONT_USB3_2 connector : Support Lightning Charger up to 12V/1.5A output and APPLE mode (5V/2.4A).
  • Page 20 F_AUDIO1: Front Panel Audio Header This header allows user to connect the chassis-mount front panel audio I/O which supports HD and AC’97 audio standards. HD Audio AC’97 Assignment Pin Assignment Mic Left in Mic In Ground Ground Mic Right in Mic Power GPIO Audio Power...
  • Page 21: Buttons, Indicators, Leds

    X570GT8 Note »  Ensure proper pin connecting to your LED device, wrong connection may damage your LED device or motherboard.   » The 12V_LED connector supports to 5050 RGB LED strips with the maximum power rating of 3A (12V).   » The 5V_LED connector supports up to 300 LEDs WS2818B individually Addressable RGB LED strips with the maximum power rating of 3A (5V).   » Please use the Vivid LED DJ software to control the LEDs. For detailed software setting information, refer to chapter 3.3 . 2.8 Buttons, Indicators, LEDs On-Board Buttons CLR_CMOS_BTN: Press the button 1~2 seconds to load the BIOS defaults. Reset: Touch this button to reboot the system.
  • Page 22 LEDs Below LEDs are controlled by RACING GT EVO program. Please refer to Chapter 3.3 for more detail software setting. 1. RGB LED Device Header (5V/12V) 2. Racing ARMOR LED 22 | Chapter 2: Hardware installation...
  • Page 23: Chapter 3: Uefi Bios & Software

    The BIOS can be updated using either of the following utilities: •  BIOSTAR BIOS Flasher: Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM.
  • Page 24 6. Select the proper BIOS file, and a message asking if you are sure to flash the BIOS file. Click “Yes” to start updating BIOS. 7. A dialog pops out after BIOS flash is completed, asking you to restart the system. Press the <Y> key to restart system.
  • Page 25 Then, the BIOS Update is completed. BIOS Update Utility (through a BIOS file) 1. Installing BIOS Update Utility from the DVD Driver. 2. Download the proper BIOS from http://www.biostar.com.tw/ 3. Launch BIOS Update Utility and click the “Update BIOS” button on the main screen.
  • Page 26 5. Choose the location for your BIOS file in the system. Please select the proper BIOS file, and then click on “Open”. It will take several minutes, please be patient. 6. After the BIOS Update process is finished, click on “OK” to reboot the system. 7.
  • Page 27: Software

    X570GT8 3.3 Software Installing Software Insert the Setup DVD to the optical drive. The driver installation program would appear if the Auto-run function has been enabled. Select Software Installation, and then click on the respective software title. Follow the on-screen instructions to complete the installation.
  • Page 28 RACING GT EVO RACING GT EVO is an easy-to-use program that integrates several BIOSTAR utilities and allows users to configure these utilities simultaneously and seamlessly. Note »  Menu contents of RACING GT EVO will be different slightly, depending on different motherboard of users’ computers. System Information This System Information tab provides you an overview of the basic system information.
  • Page 29 X570GT8 SmartEAR Smart EAR allows you to control system volume and adjust impedance setting (Low/High Gain) to optimize your headphone performance. You can easily enjoy high-quality and awesome sound. Requirements: 1. A chassis with front audio output jacks 2. An earphone or a headphone 3.
  • Page 30 GT Touch GT Touch allows you to adjust Normal, ECO and Sport mode when running RACING GT EVO program in Windows environment. 1. Normal Mode: It balances energy consumption and system performance. 2. ECO Mode: It saves energy by slightly reducing system performance. 3.
  • Page 31 X570GT8 Vivid LED DJ Vivid LED DJ can adjust your color scheme of Racing ARMOR , RGB LED Device. 1. LED COMMANDER: Allows you to select the LED mode. •  Default : Default LED illuminations. (Blue light) •  RAZER : Allows you to connect to the RAZER app to sync the motherboard lights.
  • Page 32 8. LED SPARKLE: Allows to you choose sparkle of the LEDs. •  Permanent: LEDs are constantly lit. •  Shine: LEDs flash at a specific frequency. •  Breath: LEDs gradually flash on and off. •  Shine & Music: LEDs will flash according the music played on your system.   »...
  • Page 33 X570GT8 A�I Fan A.I FAN utility smartly allows PC users to have more customizability of fan operating modes and automatically detects different temperatures to make fan operating at defined speed for optimal cooling performance. 1. Temperature: Shows the current CPU and system temperature.
  • Page 34 H/W Monitor The HW Monitor tab allows you to monitor hardware voltage, fan speed, and temperature. 1. CPU Temperature/System Temperature: Shows the current CPU and system temperature. 2. Fan: Shows the current fans’ speed. 3. Voltage: Shows the current voltages of CPU and memory. 34 | Chapter 3: UEFI BIOS &...
  • Page 35 X570GT8 OC/OV The OC/OV tab allows you to save or load the OC/OV setting profiles, change system frequency and voltage settings. 1. OC: Allows you to adjust overclocking profile values. 2. OV: Allows you to adjust voltage profile values. 3. Default: Restore defaults your changes.
  • Page 36 About The About menu to display the Racing GT EVO Utility version information. 36 | Chapter 3: UEFI BIOS & Software...
  • Page 37 X570GT8 LIGHTNING CHARGER (Quick Charge 2.0) Quick Charge 2.0 (QC 2.0) software function provides the user with quick charge and file transfer. LIGHTNING CHARGER UI: 1. TYPE: Allows users to select a Port. •  All (Default): Enable Front USB3.1 Gen1 Port1 & Front USB3.1 Gen1 Port2 to transfer files or quick charge.
  • Page 38: Chapter 4: Useful Help

    Chapter 4: Useful help 4.1 Driver Installation After you installed your operating system, please insert the Fully Setup Driver DVD into your optical drive and install the driver for better system performance. You will see the following window after you insert the DVD The setup guide will auto detect your motherboard and operating system.
  • Page 39: Ami Bios Beep Code

    X570GT8 4.2 AMI BIOS Beep Code Boot Block Beep Codes Number of Beeps Description Continuing Memory sizing error or Memory module not found POST BIOS Beep Codes Number of Beeps Description Success booting. Display memory error (system video adapter) 4.3 AMI BIOS post code...
  • Page 40 Code Description South Bridge DXE initialization is started South Bridge DXE SMM initialization is started South Bridge devices initialization South Bridge DXE Initialization (South Bridge module specific) ACPI module initialization Boot Device Selection (BDS) phase is started Driver connecting is started PCI Bus initialization is started PCI Bus Hot Plug Controller Initialization PCI Bus Enumeration...
  • Page 41: Troubleshooting

    X570GT8 4.4 Troubleshooting Probable Solution 1. There is no power in the system. Power LED does 1. Make sure power cable is securely plugged in. not shine; the fan of the power supply does not work 2. Replace cable. 2. Indicator light on keyboard does not shine.
  • Page 42: Raid Functions

    4.5 RAID Functions RAID Definitions In a RAID 0 system data are split up in blocks that get written across all the drives in the array. By using multiple disks (at least 2) at the same time, this offers superior I/O performance.
  • Page 43 X570GT8 RAID 10 combines the advantages (and disadvantages) of RAID 0 and RAID 1 in one single system. It provides security by mirroring all data on a secondary set of disks (disk 3 and 4 in the drawing below) while using striping across each set of disks to speed up data transfers.
  • Page 44: Appendix I: Specifications In Other Languages

    APU ‫ﺳﻠﺴ � ��������ﻠﺔ‬ AMD® ‫دﻋﻢ‬ ‫اﻟﻤﺄﺧﺬ‬ ‫ﻗﺎﻋﺪة وﺣﺪة اﻟﻤﻌﺎﻟﺠﺔ‬ ‫واط‬ thermal design power – ‫اﻟﺤﺪ اﻷﻗﺼﻰ ﻟﻠﻄﺎﻗﺔ اﻟﺤﺮارﻳﺔ ﻓﻲ ﺗﺼﻤﻴﻢ اﻟﻤﻌﺎﻟﺞ‬ ‫اﻟﻤﺮآﺰﻳﺔ‬ ‫ﻟﻘﺎﺋﻤﺔ دﻋﻢ اﻟﻤﻌﺎﻟﺞ‬ www.biostar.com.tw ‫ﻳﺮﺟﻰ اﻟﺮﺟﻮع إﻟﻰ اﻟﻤﻮﻗﻊ‬ AMD® X570 ‫اﻟﺸﺮاﺋﺢ‬ ‫ﻣﺠﻤﻮﻋﺔ‬ 2667 2400 2133 1866 DDR4 ‫. ار‬...
  • Page 45 X570GT8 ‫اﻟﻤﻮاﺻﻔﺎت‬ (6.0Gb/s) SATA III ‫ﺳﺎﺗﺎ‬ ‫وﺻﻠﺔ‬ ‫آﻞ ﻣﻮزع ﻳﺘﺤﻤﻞ ﻓﺘﺤﺘﻴﻦ ﻧﺎﻗﻞ ﻣﺘﺴﻠﺴﻞ ﻋﺎم‬ ‫ﻧﺎﻗﻞ ﻣﺘﺴﻠﺴﻞ ﻋﺎم‬ ‫ﻣﻮزع‬ Gen1 USB3.1 ‫آﻞ ﻣﻮزع ﻳﺘﺤﻤﻞ ﻓﺘﺤﺘﻴﻦ ﻧﺎﻗﻞ ﻣﺘﺴﻠﺴﻞ ﻋﺎم‬ (5Gb/s) Gen1 USB3.1 ‫ﻧﺎﻗﻞ ﻣﺘﺴﻠﺴﻞ ﻋﺎم‬ ‫ﻣﻮزع‬ ‫دﺑﺎﺑﻴﺲ‬ ‫وﺻﻠﺔ ﻟﻠﻄﺎﻗﺔ‬ ‫دﺑﺎﺑﻴﺲ‬ ‫وﺻﻠﺔ ﻟﻠﻄﺎﻗﺔ‬...
  • Page 46: German

    Jedes DIMM unterstützt nicht-ECC und ECC Un-gepuffert 8/16 GB DDR4-Module * DDR4 - 2667 nur für Ryzen CPU. * Bitte konsultieren Sie www.biostar.com.tw für für Speicherunterstützung Liste. 6x SATA III 6Gb-Verbindung : Unterstützt AHCI & RAID 0,1,10 2x M.2 (Key M) - [PCIE-M2_1/ PCIE-M2_3] : Unterstützt M.2 Typ 2242/2260/2280 SSD-Modul...
  • Page 47 1x Header für klares CMOS 2x Header LED (12V/5V) Formfaktor ATX Formfaktor, 305 mm x 244 mm Windows 10(64bit) OS-Unterstützung Biostar reserves the right to add or remove support for any OS with or without notice APPENDIX I: Specifications in Other Languages | 47...
  • Page 48: Russian

    Сокет AM4 для процессоров AMD серии A - APU / Ryzen APU / Ryzen CPU центрального Максимальный термопакет центрального процессора (TDP): 95 ватт процессора * Перечень поддержки центрального процессора смотрите на www.biostar.com.tw. Набор микросхем AMD® X570 Поддерживает двухканальный DDR4 1866/2133/2400/2667 Поддерживает...
  • Page 49 1 контакт микросхемы Clear CMOS 2 контакт LED (12V/5V) Конструктив Форм-фактор ATX, 305 мм x 244 мм Windows 10(64bit) Поддержка ОС Biostar оставляет за собой право добавлять или удалять поддержку любой ОС, с уведомлением или без. APPENDIX I: Specifications in Other Languages | 49...
  • Page 50: Spanish

    Ranura AM4 Soporta AMD® serie - A - APU / Ryzen APU / Ryzen CPU Compatibilidad con el Alimentación de Proyección Térmica (TDP – Thermal Design Power): 95Watt procesador *Por favor consultar con www.biostar.com.tw para la lista de compatibilidad con el procesador. Tipo de Placa AMD® X570 Soporta DDR4 1866/2133/2400/2667 Doble Canal...
  • Page 51 Factor de Forma Factor de Forma ATX, 305 mm x 244 mm Windows 10(64bit) Soporte OS Biostar reserva su derecho de añadir o retirar el soporte para cada OS con o sin notificación. APPENDIX I: Specifications in Other Languages | 51...
  • Page 52: Thai

    CPU TDP (Thermal Design Power) สู ง สุ ด : 95Watt * เข้ า ชมได้ ท ี ่ www.biostar.com.tw สำ า หรั บ รายการซี พ ี ย ู ท ี ่ ส นั บ สนุ น ชิ พ เซ็ ต...
  • Page 53 สนั บ สนุ น OS Biostar ขอสงวนสิ ท ธิ ์ ใ นการเพิ ่ ม หรื อ ถอดการสนั บ สนุ น สำ า หรั บ ระบบปฏิ บ ั ต ิ ก าร OS ต่ า งๆ โดยไม่ ต ้ อ งแจ้ ง ให้ ท ราบล่ ว งหน้ า...
  • Page 54: Appendix Ii: Quick Charger 2.0 Compatible Devices

    APPENDIX II: Quick Charge 2.0 Compatible Devices Mobile Phone / Tablet Mobile Phone / Tablet Mobile Phone / Tablet Alcatel ldol 4 Moto G Turbo Edition Sony Xperia X Alcatel ldol 4S Moto X Force Smartron SRT Asus Transformer T100 Moto X Pure Edition Sony Xperia X Performance Asus Zenfone 2...
  • Page 55 FCC条款 依照FCC条款第15部分的规定,本装置已经通过测试并且符合Class B级数字装置的限制。 此条款限制了在安装过程中可能造成的有害射频干扰并提供了合理的防范措施。本装置在 使用时会产生无线射频辐射,如果没有依照本手册的指示安装和使用,可能会与无线通讯 装置产生干扰。然而,并不保证在特定的安装下不会发生任何干扰。 如果关闭和重新开启本设备后,仍确定本装置造成接收广播或电视的干扰,用户可以使用 以下列表中的一种或多种方法来减少干扰: • 重新安装或调整接收天线。 • 增加本设备与接收设备之间的距离。 • 连接设备连接到不同的插座以便于两个设备使用不同的回路。 • 咨询经销商或富有经验的无线电工程师, 以获得更多资讯 。 本用户手册内容的变更,恕不另行通知,制造商没有解释的义务。 本用户手册的所有内容若有任何错误,制造商没有义务为其承担任何责任。所有商标和产 品名称均有其各自所有权。 未经过书面许可,不得以任何形式(部分或全部)复制此手册信息。 免责说明 本手册内容系BIOSTAR 知识产权,版权归BIOSTAR 所有。我们本着对用户负责的态度, ® ® 精心地编写该手册,但不保证本手册的内容完全准确无误。BIOSTAR 有权在不知会用户 ® 的前提下对产品不断地进行改良、升级及对手册内容进行修正,实际状况请以产品实物为 准。本手册为纯技术文档,无任何暗示及影射第三方之内容,且不承担排版错误导致的用 户理解歧义。本手册中所涉及的第三方注册商标所有权归其制造商或品牌所有人。 CE符合性简短声明 我们声明此产品符合现行标准,并满足2004/108/CE, 2006/95/CE 和1999/05/CE指令规定的所有基本要求。 防静电操作规则 静电可能严重损坏您的设备,在处理主板以及其它的系统设备的时候要特别注意,避免和...
  • Page 56 目录 第一章: 主板介绍 ������������������������������������������������������������������������������������������������������� 3 1.1 前言 ............................... 3 1.2 包装清单 ............................3 1.3 主板特性 ............................4 1.4 后置面板接口 ..........................6 1.5 主板布局图 ..........................7 第二章: 硬件安装 ������������������������������������������������������������������������������������������������������� 8 2.1 中央处理器(CPU) ........................8 2.2 散热片 ............................9 2.3 风扇接头 ............................. 11 2.4 系统内存...
  • Page 57: 第一章: 主板介绍

    X570GT8 第一章: 主板介绍 1�1 前言 感谢您选购我们的产品,在开始安装主板前,请仔细阅读以下安全指导说明: • 选择清洁稳定的工作环境。 • 操作前请确保计算机断开电源。 • 从抗静电袋取出主板之前 ,先轻触安全触地器或使用触地手腕带去除静电以确保安 全。 • 避免触摸主板上的零件。手持电路板的边缘 ,不要折曲或按压电路板。 • 安装之后 ,确认没有任何小零件置于机箱中,一些小的零件可能引起电流短路并可能 损坏设备。 • 确保计算机远离危险区域 ,如: 高温 、 潮湿、靠近水源的地方 。 • 计算机的工作温度应保持在0-45℃之间 • 为避免受伤,请注意以下幾點: 主板或連接器上尖銳的針腳 机箱上的粗糙边缘和尖角 破损的线缆可能引起短路 1�2 包装清单 • Serial ATA数据线 x4 •...
  • Page 58: 主板特性

    4个DDR4 DIMM插槽,最大内存容量为64GB 内存 每个DIMM支持非ECC 和 ECC Un-buffered 8/ 16 GB DDR4内存模组 * DDR4 - 2667仅限于Ryzen CPU。 * 请访问 www.biostar.com.tw 获取内存的支持列表。 6个SATA III接口 (6Gb/s):支持 AHCI & RAID 0,1,10 2个M.2 (Key M)插槽 (PCIE-M2_1/ PCIE-M2_3) : 支持 M.2 Type 2242/ 2260/ 2280 SSD模块...
  • Page 59 X570GT8 规格 6个SATA III接口 (6Gb/s) 2个USB2.0接头(每个接头支持2个USB2.0端口) 2个USB 3.1 Gen1 (5Gb/s)接头(每个接头支持2个USB3.1 Gen1端口) 1个电源接口(4针) 1个电源接口(8针) 1个电源接口(24针) 板载接口 2个CPU风扇接头 2个系统风扇接头 1个系统风扇接头(南桥散热器风扇接头 : 此连接器仅适用于南桥散热器风扇) 1个前置面板接头 1个前置音频接头 1个清空CMOS数据接头 2个LED接头(12V/5V) 主板尺寸 ATX Form Factor,305 mm x 244 mm Windows 10(64bit) 操作系统支持 * 如有增加或减少任何OS支持,Biostar保留不预先通知的权利。 第一章: 主板介绍 | 5...
  • Page 60: 后置面板接口

    1�4 后置面板接口 » 带集成显卡的AMD系列处理器才支持DVI-D / HDMI / DP输出端口。 » 由于音频芯片支持高保真音频规格,各音频插座的功能由软件定义 , 上面所列出的各音频插孔的 输入/输出功能表示其默认设置。当连接外部麦克风到音频接口时 , 请使用Line In 和Mic In 插 孔。 » 最高分辨率: DVI-D: 1920 x 1200 @60Hz DP: 4096 x 2160 @60Hz HDMI: 4096 x 2160 @60Hz ,符合HDMI 2.0规范 » Line In / Side的扬声器配置选项:Line In仅限于5.1声道 / Side仅限于7.1声道。 »...
  • Page 61: 主板布局图

    X570GT8 1�5 主板布局图 » 标示为针脚1 第一章: 主板介绍 | 7...
  • Page 62: 第二章: 硬件安装

    第二章: 硬件安装 2�1 中央处理器(CPU) 步骤1: 找到主板上的CPU插槽。 步骤2: 将固定拉杆从插槽处水平拉起至90度。 步骤3: 找到插槽上的白色三角,CPU上的金点应指向此白色三角,CPU必须按正确的方 向放入。 8 | 第二章: 硬件安装...
  • Page 63: 散热片

    X570GT8 步骤4: 固定CPU,将拉杆闭合。 » 请于拔除CPU插槽之前,关闭电源。 2�2 散热片 <类型A> 步骤 1: 将散热片和风扇组件放置在支架上。散热片夹对准插座固定凸耳,再将弹簧夹扣 到固定凸耳上。 步骤2: 将另一边的固定夹向下压,扣住支架上的塑胶凸耳。然后固定,使风扇和散热片 扣住支架底座。 第二章: 硬件安装 | 9...
  • Page 64 <类型B> 步骤 1: 取下主板上的散热片和风扇组件支架, 并保留散热风扇的铁背板于主板下方。 步骤2: 将散热片和风扇组件放置于CPU上方,调整方向使风扇电缆最靠近CPU风扇连接 器,参照示意图之顺序将螺丝锁入,完成散热片风扇的安装。 » 请务必连接CPU风扇接口。 » 请参照CPU散热片的安装手册获取正确的安装信息。 10 | 第二章: 硬件安装...
  • Page 65: 风扇接头

    X570GT8 2�3 风扇接头 此风扇接头支持电脑内置的冷却风扇,风扇引线和插头可能因制造商而异。 CPU_FAN1/2: CPU 风扇接头 PWM 模式 DC 模式 针 定义 针 定义 接地 接地 +12V Voltage Control Sense Sense Speed Control Signal SYS_FAN1/2: 系统风扇接头 PWM 模式 DC 模式 针 定义 针 定义 接地 接地 +12V Voltage Control...
  • Page 66: 系统内存

    2�4 系统内存 DDR4内存模组 步骤1: 向外推开固定夹,打开DIMM插槽。 步骤2: 垂直插入DIMM并固定好,直到 将DIMM按顺序放在插槽上, DIMM上的切 固定夹跳回原位,DIMM就位。 口须与插槽凹口匹配。 » 如果DIMM未顺利插入 , 请勿强行按压。将DIMM拔出,再重插一次。 内存容量 DIMM插槽位置 模组 总内存 DIMMA1 8GB/16GB DIMMA2 8GB/16GB 最大为 64GB. DIMMB1 8GB/16GB DIMMB2 8GB/16GB 双通道内存安装 为激活主板双通道功能,使用内存模组必须符合以下要求: 成对安装相同密度的内存模 组。如下表所示 双通道状态 DIMMA1 DIMMA2 DIMMB1 DIMMB2 Enabled Enabled Enabled (“O”表示内存已安装,“X ”表示内存未安装。) »...
  • Page 67: 扩展槽

    X570GT8 2�5 扩展槽 PEX16_1: PCI-Express (Gen3/Gen4) x16 插槽 • 符合PCI-Express 3.0规范 ,同步单向最大理论带宽为16GB/s, 总带宽为32GB/s。 • 符合PCI-Express 4.0规范,同步单向最大理论带宽为32GB/s, 总带宽为64GB/s。(仅 限Matisse) • 支持使用AMD Ryzen™ 第1/ 2/ 3代处理器x16(x16, x8)通道。 ® • 支持使用AMD Ryzen™ 和带有Radeon Vega Graphics处理器x8通道。 ® PEX16_2: PCI-Express (Gen3/Gen4) x16 插槽 x8 通道...
  • Page 68 » PCIe 4.0仅适用于AMD ® Ryzen™ 第3代Matisse。 安装扩展卡 请参照以下步骤安装扩展卡: • 安装扩展卡前请阅读扩展卡的相关指示说明。 • 打开电脑机箱后盖,移除螺丝和插槽支架。 • 将扩展卡按照正确的方向插入插槽, 直到扩展卡完全就位。 • 用螺丝将扩展卡的金属支架固定到机箱后置面板。 • 还原电脑机箱后盖。 • 开机 。如有必要, 可为扩展卡更改BIOS设置。 • 安装扩展卡的驱动。 安装M�2 COOLING 散热片 移除M.2 COOLING 散热片步骤: 步骤 1: 步骤 2: 步骤 3: 在M.2 COOLING散热片的 将M.2 SSD卡插入M.2插 安装M.2 SSD卡后,将M.2 边缘有两个螺丝,并在插入...
  • Page 69: 跳线设置

    X570GT8 2�6 跳线设置 下图展示如何设置跳线。当跳帽放置在针脚上时,跳线为闭合(close)状态。否则跳线为 断开(open)状态。 打开 闭合 闭合 Pin 1-2 JCMOS1: 清空CMOS 跳线 用户可清空CMOS数据并恢复BIOS安全设置,请按照以下步骤操作以免损坏主板。 Pin 1-2 闭合: 正常操作(默认) Pin 2-3 闭合: 清空CMOS数据 清空CMOS数据过程: 1. 断开AC电源。 2. 将跳线设置成2-3接脚闭合。 3. 等待5秒钟。 4. 将跳线设置成1-2接脚闭合。 5. 接通AC电源。 6. 开机然后按下<Del>键进入BIOS设置。 第二章: 硬件安装 | 15...
  • Page 70 BIOS_SW1: 双BIOS切换开关 此开关让你从双BIOS (ROM1A/ROM2A) 中选择其一作为开机之用。 主BIOS (ROM1A)运作中 LED指示燈(ROM1_LED1)將会点 , 亮 顯示主BIOS正运作中。 备用BIOS (ROM2A)运作中 LED指示燈(ROM2_LED1)將会点 , 亮 顯示备用BIOS正运作中。 » 当你的系统開機時,不要使用此开关。 » 在刷新BIOS之前, 请确保该开关设置为你想要刷新的BIOS ROM。 LN2_SW1: LN2模式跳线 当启用LN2模式时,CPU将在其最低频率运行(例如,800MHz)以避免系统意外的当 机。 关闭OFF(默认) 启用ON » 我们不负责超频造成的损失或风险。 16 | 第二章: 硬件安装...
  • Page 71: 接口和插槽

    X570GT8 2�7 接口和插槽 ATXPWR1: ATX电源接口 为了更好的兼容性,我们建议使用标准的ATX24-pin电源供应此接口的电源。 针 定义 针 定义 +3.3V +3.3V -12V +3.3V 接地 接地 PS_ON 接地 接地 接地 接地 接地 PW_OK 唤醒电压+5V +12V +12V 接地 +3.3V ATXPWR2: ATX电源接口 此接口给CPU电路提供+12V电压。 针 定义 +12V +12V 接地 接地 ATXPWR3: ATX电源接口 此接口给CPU电路提供+12V电压。若CPU电源插头为4针脚,请将其插入ATXPWR2的...
  • Page 72 PANEL1: 前置面板接头 此16针脚接口包含开机,重启,硬盘指示灯,电源指示灯和扬声器接口。 针 定义 功能 针 定义 功能 扬声器 接口 Power 扬声器 LED (+) 电源指 HDD LED Power 示灯 LED (+) 硬盘指 HDD LED 示灯 Power LED (-) 13 接地 14 电源按钮 重启按 开机按 Reset 钮 16 接地 钮 control SATA1/2/3: 串行ATA 6�0 Gb/s 接口...
  • Page 73 X570GT8 » 请注意 , 充电电压会随着电池电压的变化而跟着改变。 » 请注意 , 充电电流取决于前置面板USB3.1 Gen1电缆。(传统电缆只有900mA) » 闪电充电功能仅适用与JFRONT_USB3_2接头连接,并且此JFTONT_USB3_2连接器不支持 ACPI - S3 / S4功能。 » 有关详细信息 , 请参阅第3.3章照明充电器(Quick Charge 2.0)软件设置。 F_USB1/2: 前置面板USB 2�0接头 PC前置面板支持附加的USB数据线,也可连接即插即用外围设备。 针 定义 +5V (fused) +5V (fused) USB- USB- USB+ USB+ 接地 接地 F_AUDIO1: 前置面板音频接头...
  • Page 74 12V_LED: RGB LED装置 (5050 SMD) 接头 此接头提供12V电源与RGB控制讯号,可连接RGB LED装置(5050 SMD)。 针 电缆颜色 定义 12V (黑色) VCC12 G (绿色) LED_GREEN R (红色) LED_RED B (蓝色) LED_BLUE 5V_LED: Addressable RGB LED装置 (WS2818B) 接头 此接头提供5V电源与数据控制讯号,可连接RGB LED装置 (WS2818B)。 针 定义 VCC5 数据 接地 » 确保正确將针脚连接到LED装置 ,错误的连接可能会损坏您的LED装置或主板。 »...
  • Page 75: 智能开关/指示器/ Led灯

    X570GT8 2�8 智能开关/指示器/LED灯 触控按钮 CL_CMOS_BTN: 板载清空CMOS数据按钮。将按钮按1~2秒加载BIOS默认值。 Reset: 轻触此按钮以重启系统。 Power: 轻触此按钮以开启或关闭系统。 » 如果电源关闭,则无法使用CLR_CMOS_BTN按钮。 指示器 BIOS开机自检代码指示器: 当系统启动时此指示器会显示开机自检代 码。若要获取更多详情,请参考4.3章节的 BIOS开机自检代码。 LED灯 下面的LED灯由RACING GT EVO软件控制。请参考3.3章节的软件设置。 1. RGB LED 裝置接头 (5V/12V) 2. Racing 盔甲LED灯 第二章: 硬件安装 | 21...
  • Page 76: 第三章: Uefi Bios和软件

    3�1 UEFI BIOS设置 • BIOS设置程序可用于查看和更改计算机的BIOS设置。开机自检时 ,按<DEL>键可进入 BIOS设置程序。 • 更多相关UEFI BIOS设置信息 , 请参考网站上的UEFI BIOS手册。 3�2 刷新BIOS 以下任意一种工具都可以刷新BIOS: • BIOSTAR BIOS Flasher: 使用此工具 ,BIOS可通过硬盘上的文件刷新 ,USB驱动刷新 , 或者CD-ROM 刷新。 • BIOSTAR BIOS刷新工具: 能够在Windows 环境下自动刷新。使用此工具,BIOS可通 过硬盘上的文件刷新 , USB驱动刷新 ,CD-ROM 刷新或者从网站上的文件地址刷新。 BIOSTAR BIOS Flasher » 此工具仅允许可使用FAT32/16格式化或单个分区的存储设备。...
  • Page 77 X570GT8 7. BIOS刷新后会弹出是否重启系统的对话框。 按<Y>重启系统 8. 系统引导并出现相关标识信息时,按<DEL>键进入BIOS设置。 选择<Save & Exit>,使用<Restore Defaults>功能加载系统默认值,然后选择<Save Changes and Reset>来重启系统,完成BIOS刷新。 BIOS刷新工具(通过网络) 1. 用DVD驱动安装BIOS Update Utility。 2. 使用此功能时,请确保电脑联网。 3. 打开BIOS刷新工具,然后点击”Online Update”按钮。 4. 屏幕弹出是否执行刷新BIOS程序的对话请 求,点击”Yes”开始刷新BIOS。 5. 如果BIOS有新版本,屏幕会弹出提示您下 载最新版本的对话框。点击”Yes”下载。 6. 完成下载后,屏幕弹出提示您刷新 BIOS的对话框,点击”Yes”开始刷新。 第三章: UEFI BIOS和软件 | 23...
  • Page 78 7. 刷新程序结束后,屏幕弹出提示您重启系 统的对话框。点击”OK”重启系统。 8. 系统引导并出现相关标识信息时,按<DEL>键进入BIOS设置。 选择<Save & Exit>,使用<Restore Defaults>功能加载系统默认值,然后选择<Save Changes and Reset>来重启系统,完成BIOS刷新。 BIOS刷新工具(通过BIOS文件) 1. 用DVD驱动安装BIOS刷新工具。 2. 从我们的网站www.biostar.com.tw 下载合适的BIOS. 3. 在主页面打开BIOS Updat Utility,然后点 击”Update BIOS”按钮。 4. 屏幕弹出是否执行刷新BIOS程序的对话请 求,点击”OK”开始刷新BIOS。 24 | 第三章: UEFI BIOS和软件...
  • Page 79 X570GT8 5. 选择BIOS文件的存放目录。然后选择合适的 BIOS文件,点击”Open”。 刷新BIOS要花几分钟时间,请耐心等待。 6. BIOS刷新过程结束后,点击”OK”重启系 统。 7. 系统引导并出现相关标识信息时,按<DEL>键进入BIOS设置。 选择<Save & Exit>,使用<Restore Defaults>功能加载系统默认值,然后选择<Save Changes and Reset>来重启系统,完成BIOS刷新。 BIOS备份 点击BIOS备份按钮,选择存储备份文件的合适 目录,然后点击”Save”。 第三章: UEFI BIOS和软件 | 25...
  • Page 80 3�3 软件 安装软件 1. 将光盘放入光驱,若Autorun功能已激活,驱动安装程序将会出现。 2. 选择Software Installation,然后点击各软件图标。 3. 根据屏幕上的指令完成安装。 启动软件 安装程序完成后,桌面上将出现软件图标。请双击图标启动软件工具。 » 所有软件的相关信息和内容若有变更 ,恕不另行通知。为使系统性能更佳,软件会不断升级。 » 下面的图片和信息仅供参考, 此主板的实际信息和设置可能与手册稍有差异。 BIOScreen 工具 此实用工具可以将开机画面个性化。您可以选择BMP格式来自定义计算机开机画面。 请参照以下步骤来更新开机画面: • 加载画面(Load Image):选择图片作为开机画面。 • 转换(Transform):转换图片并预览 。 • 更新BIOS(Update Bios): 将图片写入BIOS内存,然后完成更新。 26 | 第三章: UEFI BIOS和软件...
  • Page 81 X570GT8 RACING GT EVO Utility RACING GT EVO軟件集成几个映泰的实用程序並十分易于使用,允许用户同时无缝地 配置这些实用程序。 » RACING GT EVO軟件之选单内容将略有不同,具体项目配置取决于用户所使用的主板。 系统信息 提供您的基本系统信息的概述。 1� 时钟频率:显示核心频率,倍频和总线速度。 2� 主板:显示主板信息。 3� 处理器:显示处理器信息。 4� 内存:显示内存信息。 第三章: UEFI BIOS和软件 | 27...
  • Page 82 耳放调控 耳放调控允许您控制系统音量,调整阻抗设置(低/高增益),以优化您的耳机性能。 讓您可以轻松享受高品质的声音。 设置需求: 1. 带有前置音频输出插孔的机箱。 2. 耳机或头戴式耳机。 3. Windows 7 (32/64bit)/ 8.1(64bit) / 10(64bit)操作系统。 安装指南: 1. 确保机箱前置音频线正确连接至主板上的前置音频接头。 2. 从驱动DVD上安装RACING GT EVO软件。 3. 将耳机或头戴式耳机连接至机箱前置或后部的音频输出接口,並启用RACING软 件。 » 如果您想使用AC’ 97前置音频输出线, 请禁用 “前置面板插孔检测功能” 。此功能在系统音频工 具中可见。 1� 音量:可调节音量大小。 2� 静音:可切换到静音状态。 3� 增益开关:使用低阻抗耳机时调至低(LO),使用高阻抗耳机时调至高(HI)。 28 | 第三章: UEFI BIOS和软件...
  • Page 83 X570GT8 能效控制 GT Touch允许您在Windows环境中运行RACING GT EVO程序时调整正常,ECO和运 动模式。 1� 常规模式:自动平衡系统性能与电源消耗。 2� 节能模式:稍微地降低系统性能以节省能源。 3� 高性能模式:以最大限度地提高系统性能。 第三章: UEFI BIOS和软件 | 29...
  • Page 84 炫彩灯控 炫彩LED可供调整Racing 盔甲LED灯、RGB LED装置的灯光模式。 1� LED灯效指挥官:允许您选择LED模式。 • 默认:所有设置都恢复为默认。(蓝光) • RAZER:允许您连接到RAZER应用程序以同步主板灯。 » 使用RAZER模式时 ,关闭RACING GT软件,LED照明将返回默认状态。 » RAZER模式是通过与RAZER软件的连接实现LED照明同步。 » 必须安装RAZER软件才能使用RAZER模式 。 RAZER相关信息请到RAZER官方网站下载。 » 使用RAZER模式时 ,必须与RAZER相关设备和外围设备一起使用。 • RGB灯效同步:允许您同步LED类型项目设置。 2� LED类型:选择LED开启区块。 • 系统:显示系统LED灯。(Racing ARMOR灯) • 12V LED:显示12V LED接头区块LED灯。(12V_ LED 装置) • 5V LED:显示5V LED接头区块LED灯。(5V_LED 装置) •...
  • Page 85 X570GT8 • 流星:LED灯以特定频率滑动。 • 浪花:LED灯以水波纹节奏呈现。 • 星空:LED灯以特定的节奏闪烁。 • 闪电:LED灯闪烁并以特定频率滑动。 • 彩虹:LED灯以炫丽多彩的节奏律动。 • 极光:LED灯显示柔和的光线并轻微闪烁。 9� 速度慢/快:允许您控制闪烁速度。 » 使用VIVID LED DJ, 可独立控制四种LED类型区块,不同的LED类型将配置不同的闪烁模式 。 第三章: UEFI BIOS和软件 | 31...
  • Page 86 智能风扇 A.I FAN实用程序允许使用者具有更多调整风扇操作模式的智能性,并自动检测不同的 温度,使风扇以规定的速度运行,以获得最佳的冷却性能。 1� 温度:显示当前CPU和系统温度。 2� CPU1/2 RPM & SYSTEM1/2/3/4 RPM: 单击按钮提供您设置CPU风扇和系统风扇的状态值。 3� Default:恢复默认您单个项目的更改值。 4� PWM/Temperature Panel: 根据风扇PWM值对应CPU和系统温度来调节风扇转速。 » 此项目允许您根据自己的喜好进行调整。 5� 用户选择:设置风扇属性的选择操作。 • 自动:允许您调整自动检测模式 。 • DC:允许您调整直流(直流)模式 。 • PWM:允许您调整脉宽调制(PWM)模式 。 6� 控制模式:允许您控制风扇的转动模式。 • 积极:启用进取模式 。 • 安静:启用安静模式 。 •...
  • Page 87 X570GT8 硬件监测 允许您监控硬件电压,风扇转速和温度。 1� 处理器温度/系统温度:显示当前CPU和系统温度。 2� 风扇转速:显示当前风扇速度。 3� 电压:显示CPU和内存的当前电压。 第三章: UEFI BIOS和软件 | 33...
  • Page 88 超频超压 允许您保存或加载超频的设定参数值,以及更改系统的频率与电压设置。 1� 超频:您可以调节超频参数值。 2� 超压:您可以调节电压参数值。 3� Default:所有设置都恢复为默认。 4� 应用:应用当前的参数值。 5� 读取:从文件载入参数值。 6� 储存:存储参数值以供将来使用。 » 并非所有类型的CPU性能都能超出理想的超频设置 ,因CPU类型而异。 » 超频是一个可选程序,而并非必须的; 不建议无经验用户使用。因此,由于超频导致的任何硬件 损坏我们不予负责。 对超频性能我们也不做任何担保。 34 | 第三章: UEFI BIOS和软件...
  • Page 89 X570GT8 关于 此选单显示Racing GT EVO Utility版本信息。 第三章: UEFI BIOS和软件 | 35...
  • Page 90 LIGHTNING CHARGER (Quick Charge 2�0) Quick Charge 2.0 (QC 2.0)软件功能为用户提供快速充电和文件传输。 LIGHTNING CHARGER 使用者界面: 1� TYPE: 供选择全部或单一端口,并为选择的端口做使用设定。 • 全部(预设值) :同时设定前置面板USB 3.1 Gen1接头端口1和前置面板USB 3.1 Gen1接头端口2并选择充电或资料传输模式 。 • Port 1 / 2: 设定前置面板USB 3.1 Gen1接头端口1 / 2 ,并选择充电或资料传输模式 。 » 所有的端口设定均无法同时选择充电及资料传输功能。 » 如重新选择端口后,则设定模式将持续保留先前的设置。 2�...
  • Page 91: 第四章:帮助信息

    X570GT8 第四章:帮助信息 4�1 驱动程序安装注意事项 为获得更好的系统性能,在操作系统安装完成后,请插入您的系统驱动到光驱并安装。 插入DVD后,将出现如下所示窗口。 此设置向导将自动检测您的主板和操作系统。 A� 驱动程序安装 安装驱动程序,请点击驱动器图标。设置向导将列出主板兼容驱动和操作系统。点击各 设备驱动程序,以开始安装进程。 B� 软件安装 安装软件,请点击软件图标。设置向导将列出系统可用软件,点击各软件名称,以开始 安装进程。 C� 使用手册 除了书本形式的手册,我们也提供光盘形式的使用指南。点击Manual图标,浏览可用 相关使用指南。 » 在插入驱动之后,如此窗口未出现, 请用文件浏览器查找并执行SETUP.EXE文件。 » 若需要Acrobat Reader打开manual文件。请从网站http://get.adobe.com/reader/下载最新 版本的Acrobat Reader软件。 第四章:帮助信息 | 37...
  • Page 92: Ami Bios 哔声代码

    4�2 AMI BIOS 哔声代码 引导模块哔声代码 哔声次数 含义 持续哔声 持续哔声 BIOS 开机自检哔声代码 哔声次数 含义 系统引导成功 显存错误(系统视频适配器) 4�3 AMI BIOS 开机自检代码 代码 含义 PEI核心启动 CPU Pre-memory初始化启动 北桥Pre-memory初始化启动 南桥Pre-memory初始化启动 内存初始化,读取SPD数据 内存初始化,检测Memory presence 2D 内存初始化,编程内存时序信息 内存初始化,配置内存 内存初始化(其他) 内存安装完成 CPU post-memory初始化启动 CPU post-memory初始化,Cache初始化 CPU post-memory初始化,应用处理器初始化 CPU post-memory初始化,选择BSP CPU post-memory初始化,系统管理模式初始化...
  • Page 93 X570GT8 代码 含义 南桥DXE初始化启动 南桥DXE SMM初始化启动 南桥设备初始化 南桥DXE初始化 ACPI模组初始化 引导设备选择阶段启动 驱动连接启动 PCI总线初始化启动 PCI总线热拔插控制器初始化 PCI总线列举 PCI总线请求资源 PCI总线分配资源 控制台输出设备连接 控制台输入设备连接 高级IO初始化 USB初始化启动 USB复位 USB检测 9D USB启用 IDE初始化启动 IDE复位 IDE检测 IDE启用 SCSI初始化启动 SCSI复位 SCSI检测 SCSI启用 设置校对密码 设置开始 设置输入等待 AD 准备启动环境 传统启动环境 退出启动环境 虚拟地址图开始...
  • Page 94: 问题解答

    4�4 问题解答 问题 解决方法 1. 系统没有电,电源指示灯不亮,电源风 1. 确定电源线是否接好。 扇不转动。 2. 更换线材。 2. 键盘上的指示灯不亮。 3. 联系技术支持。 系统不起作用。键盘指示灯亮,电源指示 用力按压内存两端,确保内存安置于插槽 灯亮,硬盘正常运作。 中。 1. 检查硬盘与主板的连线,确定各连线是 否确实接好,检查标准CMOS设置中的驱 系统不能从硬盘启动,能从光盘启动。 动类型。 2. 硬盘随时都有可能坏掉,所以备份硬盘 数据是很重要的。 1. 备份数据和应用程序。 系统只能从光盘启动。硬盘能被读,应用 2. 重新格式化硬盘。用后备盘重新安装应 程序能被使用,但是不能从硬盘启动。 用程序和数据。 屏幕提示“Invalid Configuration” 或 “CMOS Failure”。 再次检查系统设备,确定设定是否正确 再次检查系统设备,确定设定是否正确...
  • Page 95: Raid 功能

    X570GT8 4�5 RAID 功能 RAID 定义 创建带区集,在同一时间内向多块磁盘写入数据,通 过把数据分成多个数据块(Block)并行写入/读出多 个磁盘以提高访问磁盘的速度分散到所有的硬盘中同 时进行读写,在整个磁盘阵列建立过程中,以系统环 境为基础,指数的大小决定了每块磁盘的容量。此技 术可减少整个磁盘的存取时间和提供高速带宽。 性能及优点 • 驱动器: 最少2块硬盘 , 最多达6块或8块, 取决于平台。 • Uses: 使用RAID 0来提高磁盘的性能和吞吐量 ,但没有冗余或错误修复能力。 • 优点: 增加磁盘的容量。 • 缺点: 整个系统是非常不可靠的,如果出现故障, 无法进行任何补救.整个数据都会丢 失。 • 容错: 否。 每次读写实际上是在磁盘阵列系统中(RAID 1),通过2 个磁盘驱动器并行完成的。RAID 1或镜像模式能够自 动对数据进行备份,通过将一块硬盘中的数据完整复...
  • Page 96 RAID 10模式是对RAID 0/ RAID 1两种不同 模式的结合,可以同时支持带区集和镜像, 这样既可以提升速度又可以加强数据的安全 性。 性能及优点 • 驱动器: 最少4块硬盘 , 最多6或8块。 • 优点: 容量和性能的优化允许冗余的自动化。在一个阵列, 可以同时使用其它的RAID, 并允许剩余的磁盘。 • 缺点: 数据冗余需要两倍可用磁盘空间,与RAID1相同。 • 容错: 是。 42 | 第四章:帮助信息...
  • Page 97: 附录I:产品中有毒有害物质或元素的名称及含量

    X570GT8 » 附录I:产品中有毒有害物质或元素的名称及含量 有毒有害物质或元素 部件名称 六价铬 多溴联苯 多溴二苯醚 铅 (Pb) 汞 (Hg) 镉 (Cd) (Cr(VI)) (PBB) (PBDE) PCB板 结构件 芯片及其它 主动零件 连接器 被动电子元 器件 焊接金属 线材 助焊剂,散 热 膏,标签 及其它耗材 O:表示该有毒有害物质在该部件所有均质材料中的含量在SJ/T11363-2006标准规定的限量要求以下。 X:表示该有毒有害物质至少在该部件的某一均质材料中的含量超出SJ/T11363-2006标准规定的限量要求。 备注:在芯片及其它主动零件、连接器、被动电子元器件Pb栏位中有打X,表示Pb在该部件的某一均质材料中的含量超出 SJ/T11363-2006标准规定的限量要求,但均符合欧盟ROHS指令豁免条款。 第四章:帮助信息 | 43...
  • Page 98: 附录Ii:quick Charge 2�0(快速充电2�0)兼容设备列表

    附录II:Quick Charge 2�0(快速充电2�0)兼容设备列表 手机 / 平板 手机 / 平板 手机 / 平板 Alcatel ldol 4 Moto G Turbo Edition Sony Xperia X Alcatel ldol 4S Moto X Force Smartron SRT Asus Transformer T100 Moto X Pure Edition Sony Xperia X Performance Asus Zenfone 2 Moto X Style Sony Xperia Z2 (Japan)
