SpyCentre Security® Since 1993

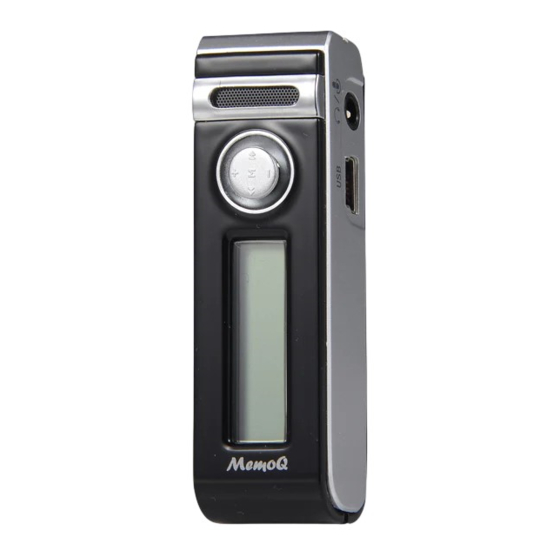

1759 – Mini Micro Stick Voice Activated Recorder
How to charge the battery:
● Connect the audio recorder to a PC or USB power supply using the provided USB cable
● It takes 2 hours to charge fully
● The battery indicator bar on the LCD screen will show three dots in the battery icon
when fully charged
How to use battery pack:
● Load 4 AAA batteries into the battery pack
● Before turning the device on, plug the battery pack into the unit via the 3.5 mm jack input
● The battery pack will allow the device to run for 72 hours
How to record a audio file:

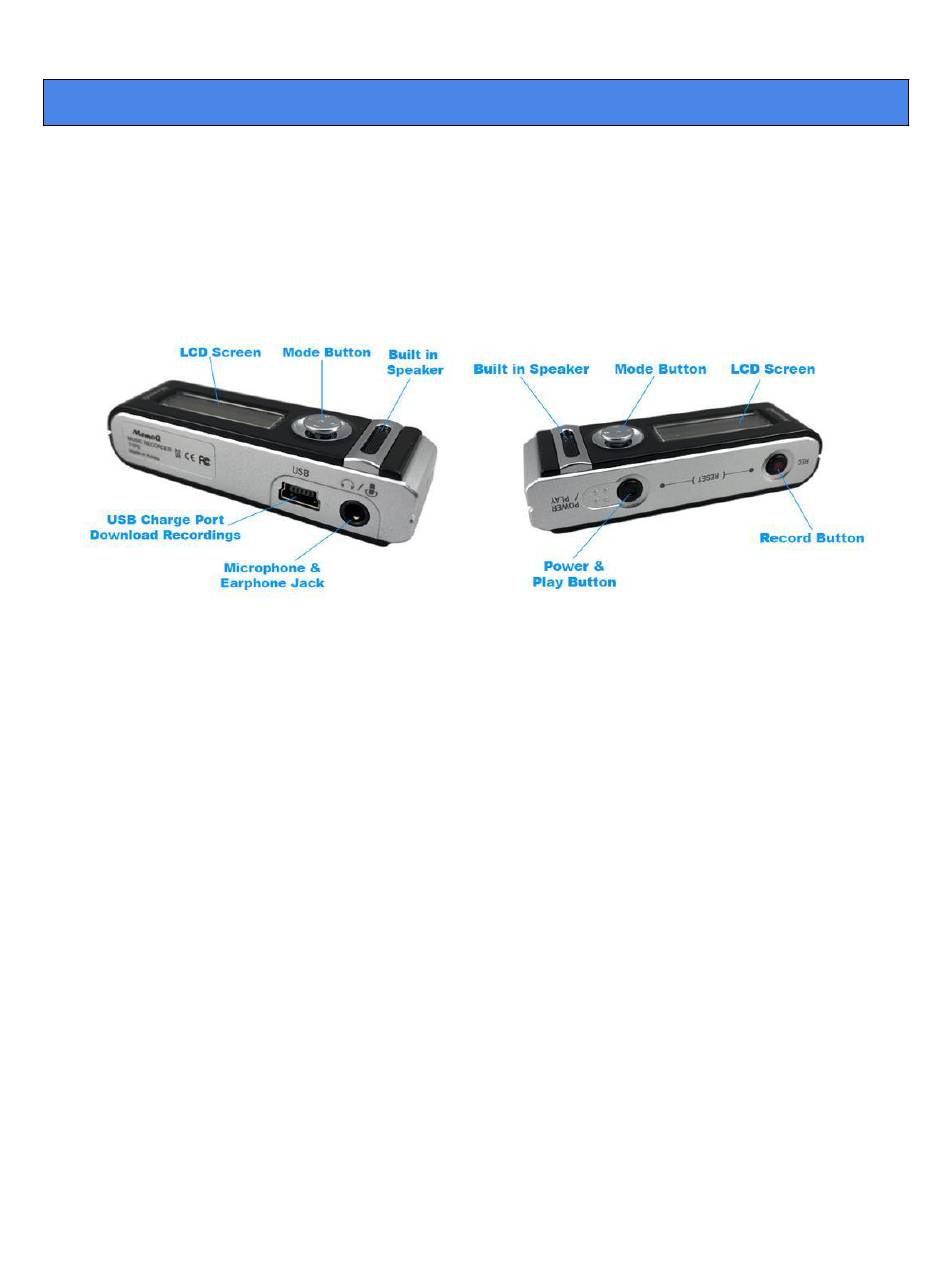

● On one side of the device are the power, play and the record buttons
● Press and hold the record button for 3 seconds
● The device will turn on and immediately begin recording
● Press the record again to stop the recording and save the file
● Hold the power and play button till 1, 2, and 3 are highlighted in black to turn the device
off
How to record a standard audio file:
● Hold the power and play button to turn the device on. The device is now in standby
mode
● Press the record button to begin a recording
● Press the record again to stop the recording and save the file
● Hold the power and play buttons till 1, 2, and 3 are highlighted in black to turn the device
off
1-800-292-7748
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Spycentre Security 1759
Summary of Contents for Spycentre Security 1759
- Page 1 SpyCentre Security® Since 1993 1-800-292-7748 1759 – Mini Micro Stick Voice Activated Recorder How to charge the battery: ● Connect the audio recorder to a PC or USB power supply using the provided USB cable ● It takes 2 hours to charge fully ●...
- Page 2 How to set the device for voice activation: ● Turn on the device with the power and play button ● Hold and push on the joystick button for a couple of seconds until you see “VOS on” ● Hold and push on the joystick until you reach “VOS off” ●...
- Page 3 How to playback recordings from the device: ● You can use the included headphones or the built-in speaker ● Turn the device on with the power and play button ● Navigate to the file you wish to play by pressing left or right on the joystick. The files are numbered ●...
- Page 4 How to adjust voice activation sensitivity on a Windows computer: ● Connect the device to the USB port of the computer ● Double-click the “TimeSetup.exe” file. The “Date_Time.cfg” creator will open ● Under VOS level is a drop-down menu where you can select +2, +1, 0, -1, and -2, with +2 being the highest sensitivity level and -2 being the lowest level ●...
- Page 5 ○ Voice Folder ○ Time Setup Program ○ Date_Time.cfg Note: If the time setup program is not present, the time will not work. ● Safely eject the device from the computer and create a new recording to import the corrected time and date stamp ●...
- Page 6 ● Select the “Removable Drive”. If unsure of this step, disconnect the device from the Chromebook and see what is no longer available under “Google Drive: from step 4 ● After selecting the “Removable Drive,” you can view the device’s memory ●...
- Page 7 ● Select the “Date_Time.cfg” file again and choose move/transfer so the file can be moved to the recorder ● Open the files App and open the connected device ● Move the “Date_Time.cfg” file into the folder directly next to the time setup program ●...
- Page 8 VLC Media Player (Recommended for optimal usage) How to download VLC Media Player on a Mac computer ● Go to www.videolan.org and click the “Download VLC” ● It will open a new window and begin downloading ● If it does not automatically start downloading, press the “Click Here” and select one of the mirrored sites ●...
- Page 9 Note: If the memory folder of the recorder does not automatically open when connected to a PC, disconnect the device and perform the following. 1. Open the control panel by typing “control panel” in the search bar 2. Select programs 3.
