SpyCentre Security® Since 1993
How to charge the battery:
● Connect the recorder to a PC or USB power supply with the provided AUX to USB cable
● The device can communicate with the PC and charge in either on or off position
●
Flashing red light
●
Blue light
= Fully Charged
How to record a voice-activated audio file:

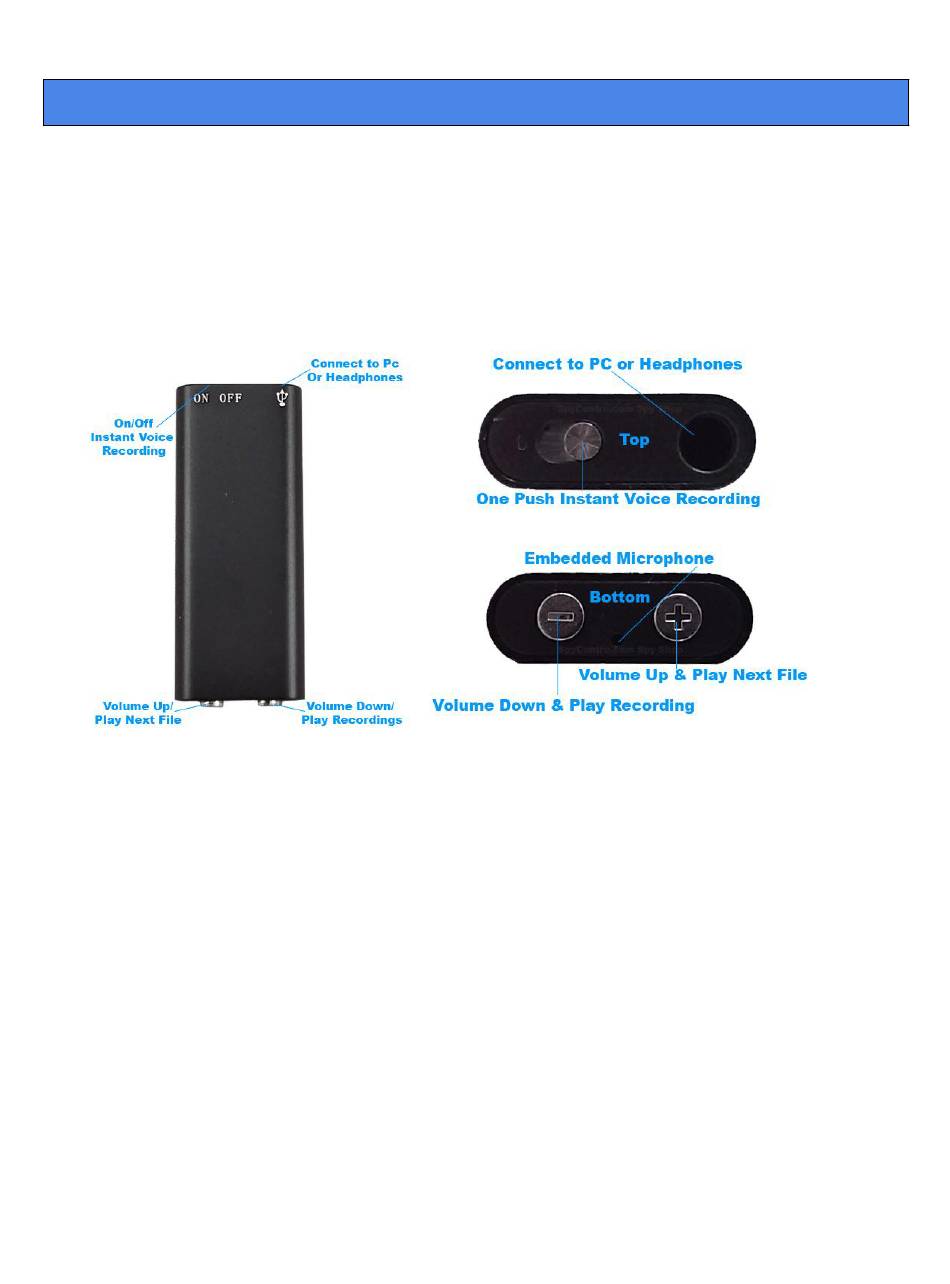

● On the top of the device is an on and off switch
● Slide the switch into the on position
● Voice-activated recording: A blue LED light will turn on and flash before disappearing,
indicating a recording has begun
● When finished, slide the switch into the off position
● Please wait about 10 seconds before the next recording
Note: The device cannot record an audio file if something is connected to the Aux
headphone port. Make sure nothing is plugged into the device. The device will record
30-minute audio files one after another while the device is recording. Voice activation will
not extend the device's battery life.

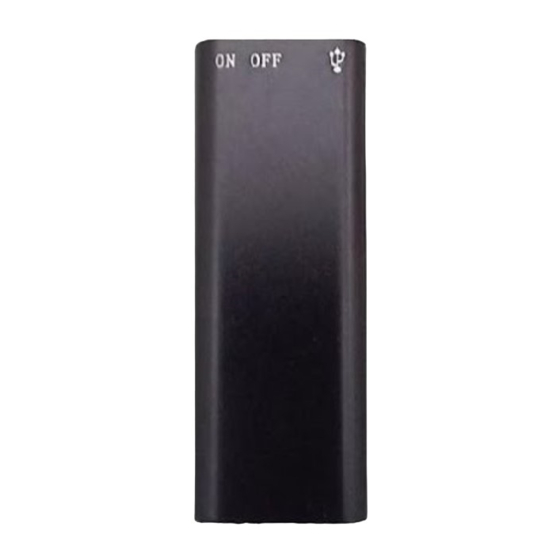

1758-1 - World's Smallest Micro Voice Recorder
= Charging
1-800-292-7748
Advertisement
Table of Contents
Related Manuals for Spycentre Security 1758-1
Summary of Contents for Spycentre Security 1758-1
- Page 1 SpyCentre Security® Since 1993 1-800-292-7748 1758-1 - World’s Smallest Micro Voice Recorder How to charge the battery: ● Connect the recorder to a PC or USB power supply with the provided AUX to USB cable ● The device can communicate with the PC and charge in either on or off position ●...
- Page 2 How to record a continuous audio file: ● Connect the device to a computer and open the “UserConfig” file ● Change the “VOR” to 0 and save ● Disconnect the device and make a recording ● On the top of the device is an on and off switch. Slide the switch into the on position ●...
- Page 3 How to set the date and time, VOX, Gain, Bitrate, and Maximum File Length: ● Plug the recorder into a computer using the included USB cable ● Open the USB drive to view the files. ● Open the text file titled “UserConfig” ●...
- Page 4 ● Adjusting maximum file length: Next to part, you may put a range of numbers extending from 10 to 240 to represent 10 minutes up to 240 minutes of maximum recording lengths ● Save the “UserConfig” file Note: Within “TextEdit” settings, ensure that the “UserConfig.txt” file is saved as a plain text file, not in a rich text format, and disable the option to wrap to page.
- Page 5 ● After selecting the “Removable Drive,” you can now navigate the folders in the main folder to find the recorded files ● Double click to play How to playback files on an Android smartphone or tablet (No Apple Products): ● An OTG cable is required for this process. For all other steps, refer to the OTG cable guide at https://spycentre.com/products/dual-android-otg-cable , scroll to the bottom of...
- Page 6 How to download VLC Media Player on a Mac computer ● Go to www.videolan.org and click the “Download VLC” ● It will open a new window and begin downloading ● If it does not automatically start downloading, press the “Click Here” and select one of the mirrored sites ●...
