AGROWtEK
Technology to Help You Grow
Speci cations
Power
Max Cable Distance
Aspirator
Temperature Range
Temperature Accuracy
Humidity Range
Humidity Accuracy
Light Irradiance Range
Light Accuracy
CO2 Range (optional)
CO2 Accuracy
Wind Speed Range
Wind Speed Accuracy
Wind Direction Range
Wind Angle Precision
4-20mA DAC Resolution
Interface
Contents
1
Weather Station Sensor & Data Logger
24Vdc, ~5W
1000ft
6cfm Fan with Foam Filter
-20 - 60°C
±0.2°C typical
±0.4°C maximum
0-100% RH (non condensing)
±2% 0-80% typical
±4% maximum
0 - 1000W/m2
±10%
0-2,000ppm
±50ppm +3%
0 - 125 mph
±1mph
0 - 359°
±1°
12 bit, 0.005mA
GrowNET, MODBUS
© Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™
© Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™

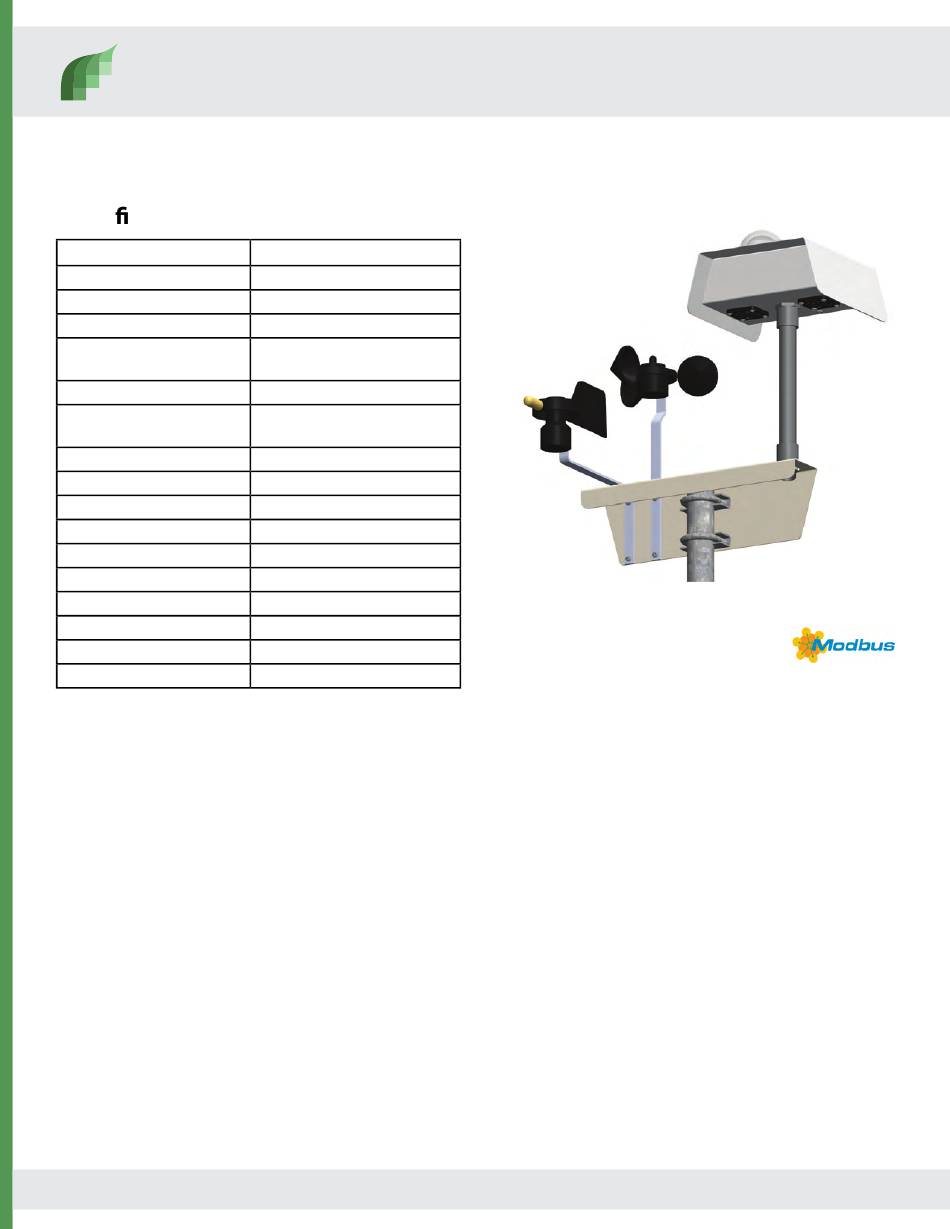

Shown with optional sensors and mounting kit.
Connection to MODBUS RTU
2
3
4
5
6
6
7
INSTRUCTION MANUAL
SXW
7
8
8
8
8
8
9
10
10
10
11
11
