Agrowtek SXC Instruction Manual

Climate sensor & data logger
Hide thumbs Also See for SXC:
Table of Contents

Advertisement

Quick Links

Download this manual
AGROWtEK
Technology to Help You Grow
Specifications
Power
Max Cable Distance
Aspirator
Temperature Range
Temperature Accuracy
Humidity Range
Humidity Accuracy
Light Irradiance Range
Light Accuracy
CO2 Range
CO2 Accuracy
4-20mA DAC Resolution
Interface
Contents
1
Climate Sensor & Data Logger
24Vdc, ~5W
1000ft
6cfm Fan with Foam Filter
-20 - 60°C
±0.2°C typical
±0.4°C maximum
0-100% RH (non condensing)
±2% 0-80% typical
±4% maximum
0 - 1000W/m2
±10%
0-2000ppm
(10.000ppm Modbus)
±50ppm + 3% of reading
12 bit, 0.005mA
GrowNET, MODBUS or WiFi
10
10
© Agrowtek Inc. | www.agrowtek.com
2
3
3
4
4
5
5
5
6
6
6
6
7
8
9
9
9

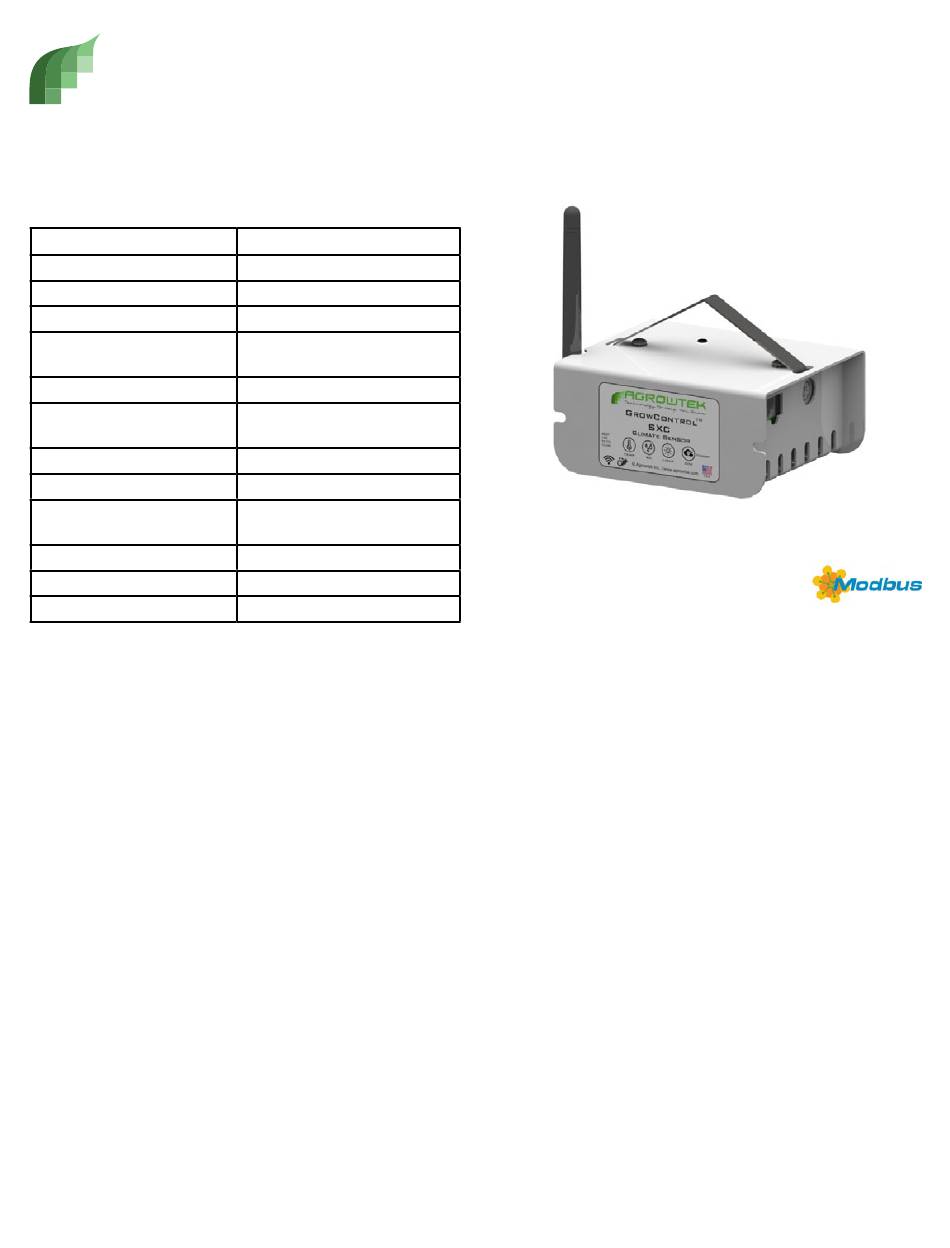

INSTRUCTION MANUAL
Shown with optional WiFi
SXC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SXC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Agrowtek SXC

Summary of Contents for Agrowtek SXC

  • Page 1: Table Of Contents

    Connection to MODBUS RTU HX8 8-Port Hubs Serial Speed & Format Supported Commands Register Types Sensor Value Registers Calibration Registers MODBUS Register Map CO2 ppm Sensor Upgrade Maintenance & Service Cleaning Fan Filter Storage and Disposal Warranty © Agrowtek Inc. | www.agrowtek.com...

  • Page 2: Installation Instructions

    © 2016 Agrowtek Inc. U.S.A. www.agrowtek.com Slost WiFi AP Mode Reset Intake Fan GrowNET/MODBUS Port & Filter RS-485 Disconnect power while making connections to Do NOT connect the GrowNET port to Ethernet networks. prevent damage to any components. © Agrowtek Inc. | www.agrowtek.com...

  • Page 3: Connection To Gc-Pro Or Gc-Proxl Controller

    | www.a growte © Agrow tek Inc. Sensors with analog output connect to Agrowtek’s GC-Pro and GC-ProXL controllers using the standard MINI-DIN 6 analog sensor cable. Power is provided to the sensor through this cable. Plug the cable firmly into the analog port on the sensor and into the desired sensor port inside the GC-Pro/ XL controller.

  • Page 4: Connection To Usb Agrowlink

    Ag row tek © 20 16 wte k.c om ww w.a gro 24Vdc 12W Power Supply LX1 USB AgrowLINK connects Agrowtek’s devices to a computer’s USB port for: • Firmware Updates • Calibration • Configuration • Data Logging Download • More Visit www.agrowtek.com for free software applications.

  • Page 5: Connection To Modbus Rtu

    Disconnect all power sources before opening cover. Link Port U.S.A. Read manual before installing or operating. © 2016 Agrowtek Inc. | www.agrowtek.com 3.3/5Vdc Serial Bus Compatible. Include required bus terminating resistors per EIA standard. HX8 8-Port Hubs HX8 GrowNET ™ Hubs allow multiple GrowNET™ sensors, relays and dosing pumps to be connected to a single LX1 or LX2 interface.

  • Page 6: Supported Commands

    (DAC.) The DAC has a resolution of 0.005mA/bit. ±1 calibration bit = ±0.005mA adjustment For example: to shift the analog output up by 0.1mA, set the analog offest value to +20. ( 0.1 / 0.005 = 20) © Agrowtek Inc. | www.agrowtek.com...

  • Page 7: Modbus Register Map

    16 bit 41301 Sensor 2 Analog Cal Calibration Input Signed Int 16 bit 41302 Sensor 3 Analog Cal Calibration Input Signed Int 16 bit 41303 Sensor 4 Analog Cal Calibration Input Signed Int 16 bit 41304 © Agrowtek Inc. | www.agrowtek.com...

  • Page 8: Co2 Ppm Sensor Upgrade

    CO2 ppm Sensor Upgrade The SXC sensor may be upgrade to sense and control CO2 ppm with a precision NDIR type CO2 sensor. 1. Disconnect cables from the sensor. 2. Remove the hanging bracket (1). 3. Take note the orientation of the light sensor on the cover.

  • Page 9: Maintenance & Service

    3. Check for proper fan operation while the filter is removed. If fan is not spinning or is making noise, replace the fan. 4. Re-install the foam filter (2) and grate (1) into the base (3) gently snapping the grate back into place. © Agrowtek Inc. | www.agrowtek.com...

  • Page 10: Storage And Disposal

    Warranty Period. In no event or circumstance shall Agrowtek Inc. be liable to any third party or the claimant for damages in excess of the price paid for the product, or for any loss of use, inconvenience, commercial loss, loss of time, lost profits or savings or any other incidental, consequential or special damages arising out of the use of, or inability to use, the product.
