AGROWtEK
Technology to Help You Grow

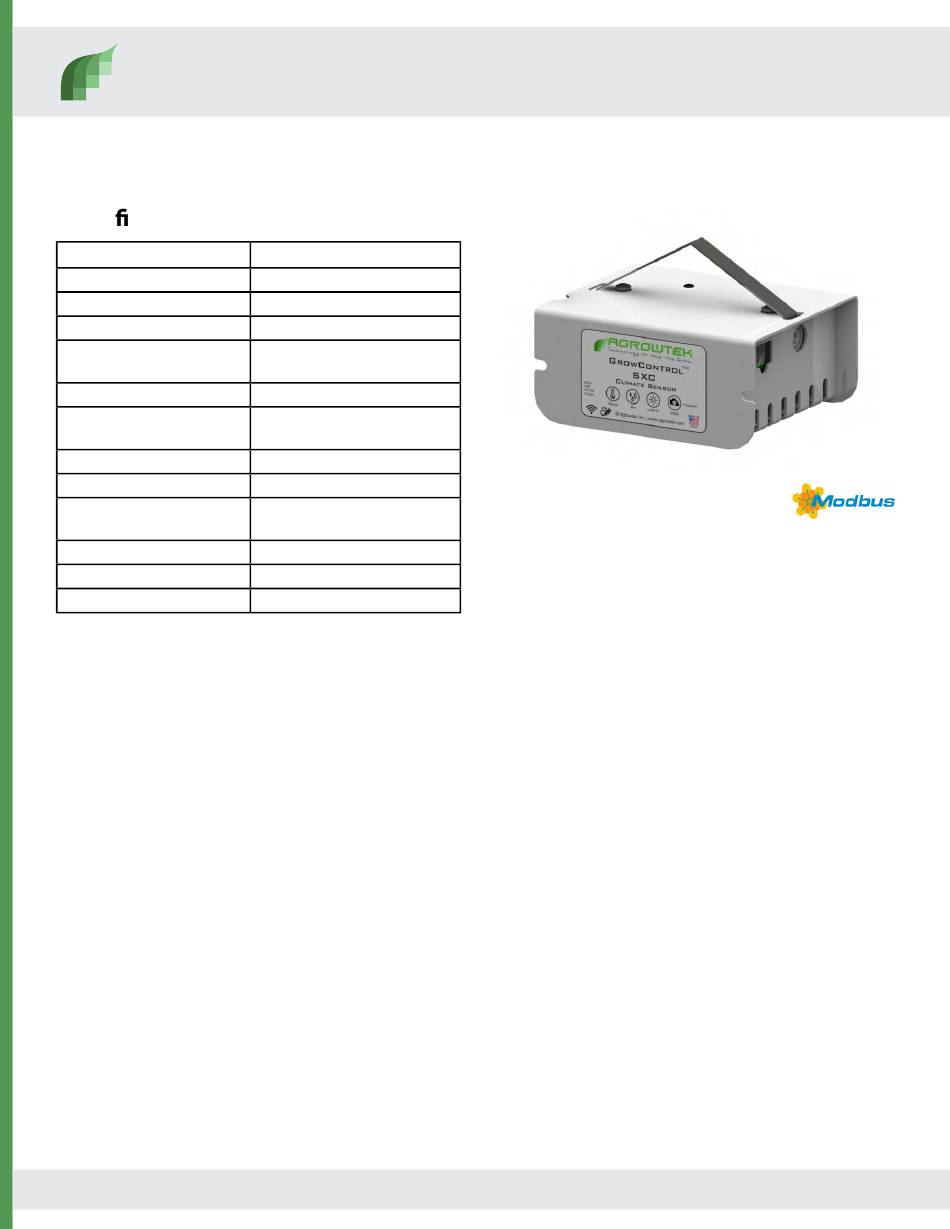

Speci cations
Power
Max Cable Distance
Aspirator
Temperature Range
Temperature Accuracy
Humidity Range
Humidity Accuracy
Light Irradiance Range
Light Accuracy
CO2 Range
CO2 Accuracy
4-20mA DAC Resolution
Interface
Contents
CO2 ppm Sensor Upgrade
Maintenance & Service
Cleaning
Fan Filter
Storage and Disposal
Warranty
1

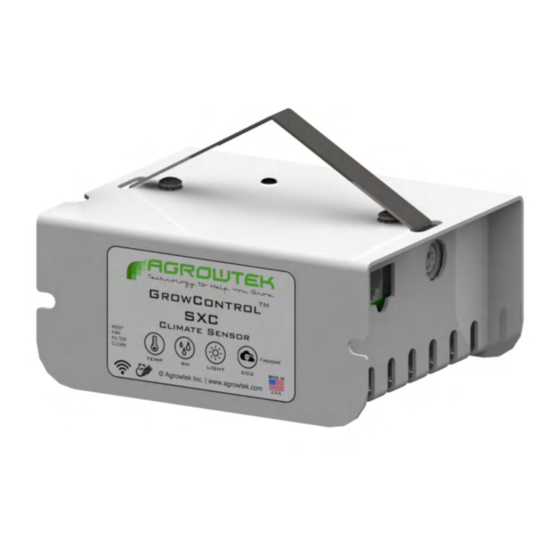

Climate Sensor & Data Logger
24Vdc, ~5W
1000ft
6cfm Fan with Foam Filter
-20 - 60°C
±0.2°C typical
±0.4°C maximum
0-100% RH (non condensing)
±2% 0-80% typical
±4% maximum
0 - 1000W/m2
±10%
0-2000ppm
(10.000ppm Modbus)
±50ppm + 3% of reading
12 bit, 0.005mA
GrowNET, MODBUS or WiFi
© Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™
© Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™
2
3
3
4
4
5
5
6
6
6
6
6
7
8
9
9
9
10
10
