  • Page 1 INSTRUCTION MANUAL REVEALCELLCAM.COM...
  • Page 2 D O W N L O A D T H E TACTACAM REVEAL APP V I S I T Y O U R A P P S T O R E T O D O W N L O A D...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS INTRODUCTION What is in the Box? What you will need QUICK START GUIDE Setting Up Your Account Downloading the App Add Camera to the App Sending a Test Picture Leaving Your Camera in the Field SETTINGS &...

  • Page 4: Introduction

    • (1) Antenna Lexar, SanDisk • (1) Verizon & AT&T SIM Card (Other brands that are lower end SD cards are incompatible with the Reveal X-Pro and will yield unexpected results) • (12) AA Batteries Required - Lithium Batteries recommended...

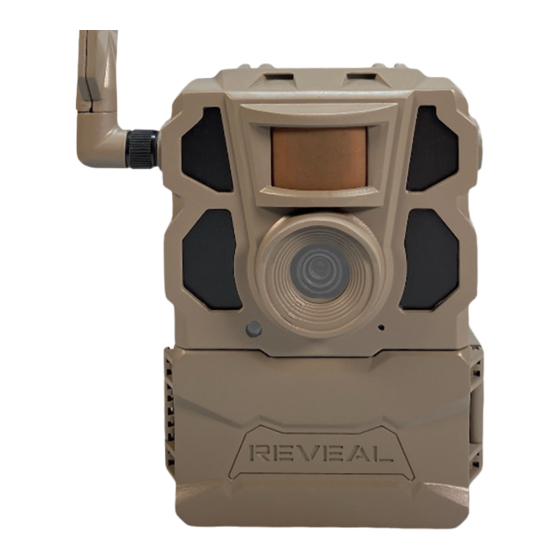

  • Page 5 INTRODUCTION Lens Antenna IR LEDs Camera Working Status Indicator Device Status Indicator Light (Green/Blue) SD Card Indicator (Red/Green) SIM Slot (do not mix SIM’s with other cameras) Power Switch (ON/SETUP/OFF) PIR Motion Sensor Wi-Fi Indicator Light (Blue) Microphone Battery Level Indicator 4G Signal Indicator SD Card Slot Test Button...

  • Page 6: Quick Start Guide

    2. Install a Class 10 U3 SD card (16GB or 32GB). • Recommended brands are: SanDisk, Lexar and Tactacam 3. Install 12 AA batteries. • To eject the battery tray, press the EJECT button on the Reveal. When inserting AA batteries correctly orientate + and - on the front and back of the tray.

  • Page 7: Setting Up Your Account

    8. DOWNLOADING THE APP In your Apple or Google Play Store, download the Tactacam Reveal app and sign in using the same email and password you created on the website. https://account.revealcellcam.com...

  • Page 8: Add Camera To The App

    2. Click the camera icon at the top. 3. From the camera page click the (+) in the bottom right hand corner. 4. Select Reveal X and continue. 5. Follow the in-app prompts to activate your Reveal. Ensure the SIM selected (Verizon or AT&T) mirrors (or is the same as) the SIM card already inserted in the camera.
  • Page 9 Wi- Fi. This will not work unless you are next to the camera. 1. Turn Reveal X to SETUP mode. 2. When the Wi-Fi light is blinking blue, it is ready to pair to your phone or tablet.

  • Page 10: Sending A Test Picture

    QUICK START GUIDE REMOTELY CHANGE THE CAMERA SETTINGS FROM THE APP From the camera page click the tool icon ( ) to make changes to the cameras settings. Make sure to select “Apply Settings” when done to save your changes. Note: In cameras SETTINGS >...

  • Page 11: Leaving Your Camera In The Field

    START USING THE REVEAL X SENDING A TEST PICTURE (CONTINUED) 2. Refer to the app to be sure the picture has successfully sent. 3. While your camera is connected to your phone with Wi-Fi, you will be able to access a live preview to help with camera setup and proper placement.

  • Page 12: Settings & Specifications

    SETTINGS / SPECIFICATIONS Camera Mode Photo; Photo+Video Day/Night Mode Daytime: Color, Nighttime: B+W IR Range 96+ Feet PIR Angle Flash No Glow IR Technology effectively eliminates all visible flash Operating Keys (2) 1x Power button; Navigation arrows Lens F=6mm; F/No=2.0; FOV=60* Auto IR-Cut-Remove (at night) SD Card Class 10, U3, 16GB-32GB, minimum 90MB/Sec...
  • Page 13 SETTINGS / SPECIFICATIONS Camera Mode Photo; Photo+Video Day/Night Mode Daytime: Color, Nighttime: B+W IR Range 96+ Feet PIR Angle Flash No Glow IR Technology effectively eliminates all visible flash Operating Keys (2) 1x Power button; Navigation arrows Lens F=6mm; F/No=2.0; FOV=60* Auto IR-Cut-Remove (at night) SD Card Class 10, U3, 16GB-32GB, minimum 90MB/Sec...

  • Page 14: Best Practices

    3. Expected picture count with the proper batteries (in greater than freezing temps) are: • Lithium: 4,000+ pictures • Alkaline: 2,500+ pictures 4. If connecting the Tactacam External Solar Panel (sold separately), the lithium batteries would act as a backup power source.

  • Page 15: Troubleshooting

    TROUBLESHOOTING CAMERA SENDS PICTURES OF NOTHING Motion sensors (PIR sensors) are actually heat and motion sensors. This is why on a hot and windy day, people get false triggers. People and animals are not the only objects that will trigger your camera; vegetation and precipitation can act as a moving target as well.

  • Page 16: Camera Stops Taking Images Or Won't Take Images

    TROUBLESHOOTING CAMERA STOPS TAKING IMAGES OR WON’T TAKE IMAGES 1. Make sure that the SD card is not full. If the SD card is full, the camera will stop taking images. Users can turn on SD Loop to avoid such problems.

  • Page 17: Warranty

    LIMITED WARRANTY HOW LONG DOES THIS COVERAGE LAST? 1. One year from the date of purchase. 2. Be sure to register your Reveal under warranty at https://www.revealcellcam.com/warranty-registration WHAT IS COVERED? 1. This limited warranty covers: manufacturer defects in materials and workmanship including but not limited to: •...
  • Page 18 FCC REGULATIONS Federal Communications Commission - Part 15 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the Federal Communications Commission rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 19 DO NOT RETURN THIS PRODUCT TO YOUR RETAILER For any warranty issues or questions on how to film your hunts with Tactacam: CALL 218-282-5650 EMAIL SUPPORT@REVEALCELLCAM.COM 110 N Sunset Blvd, Caledonia, MN 55921 www.revealcellcam.com...
