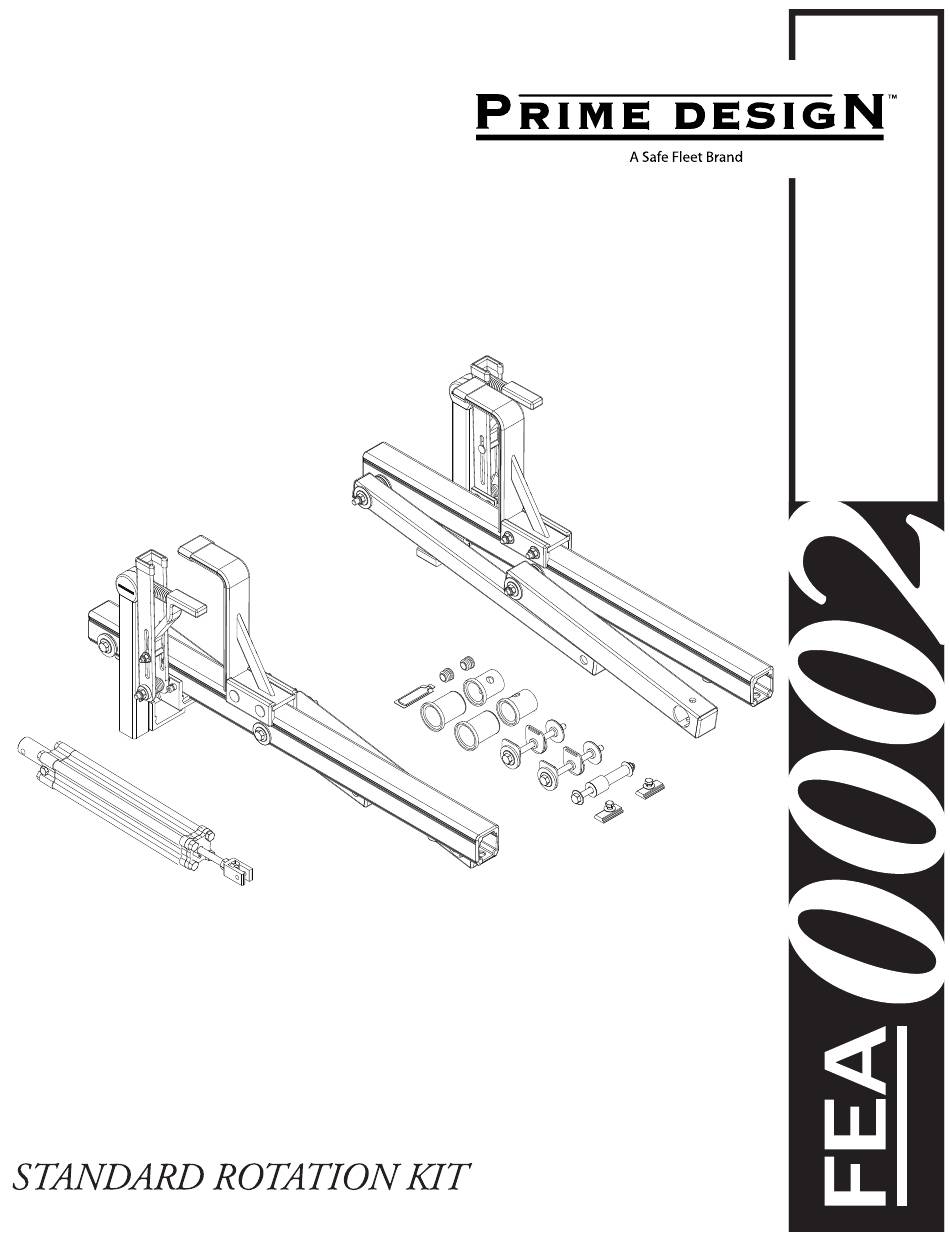

- Page 1 PRIME DESIGN, A SAFE FLEET BRAND ▪ Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 Toll Free: 1.8.PRIME.RACK ▪ Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net...
-
Page 2: Contents Overview
CONTENTS OVERVIEW 1—Right Front/Left Rear Rotation Assembly ..(Qty 1) 2—Right Rear/Left Front Rotation Assembly ..(Qty 1) 3—Cylinder ............. (Qty 1) 4—Z Post ..............(Qty 2) Adjustable, 7.25” 5—Z Post Mounting Clamp Assembly....(Qty 2) 6—L Post..............(Qty 2) With Roller Cap, 9.25”... - Page 3 7—HKT-8401............(Qty 1) Modular Rotation Hardware Kit Bushing, White (2X) Bushing, Black (2X) Cylinder Bolt Assy (1X) Rotation Arm Bolt Assy (2X) L Post Flat Washer L Post Lock Washer L Post Bolt L Post Bracket Clamp (2X) (2X) M6 x 20mm (2X) (2X) Anti-Seize (1X) Crossbar Cap, Small (2X)
- Page 4 ROTATION ASSEMBLY SEQUENCE Note: For ease of installation, it’s recommended to assemble any Rotations onto the Crossbars before placing them onto the FBM’s mounting brackets. The use of a helper is recommended when placing built Crossbars onto the vehicle. NOTE: This Rotation Kit fits both Right and Left sides. This Assembly Manual shows right side assembly procedures on Front &...
-
Page 5: Cylinder Assembly
CYLINDER ASSEMBLY NOTE: Ensure Cylinder Bushing is fully seated against Crossbar NOTE: Flow Control Screw faces toward vehicle rear Torque to 55 in-lbs FRONT CROSSBAR ROTATION ASSEMBLY Torque to 55 in-lbs Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”). - Page 6 L POSTS Place an L Post into the bottom groove of the Rear Crossbar SEE QUICK START GUIDE FOR ADJUSTMENTS NOTE: The Auto Clamps come preset from the factory for packaging purposes only. To assemble the L Posts to the Crossbars, the Auto Clamps must be repositioned.
- Page 7 Z POSTS SEE QUICK START GUIDE FOR ADJUSTMENTS Slide the L Post until parallel to the Auto Clamp and the gap between the two is even from top to bottom Install the Z Post Mounting Clamp Assembly onto the Rotation Upper. Do not tighten until Step 5.4.
- Page 8 REAR ROTATION BUSHINGS FRONT ROTATION BUSHINGS White Bushing White Bushing Black Bushing– Align bushing boss to Crossbar notch Black Bushing– Align bushing boss to Crossbar notch Cable tie the bushings if Cable tie the bushings if this is for ship-through. this is for ship-through.
