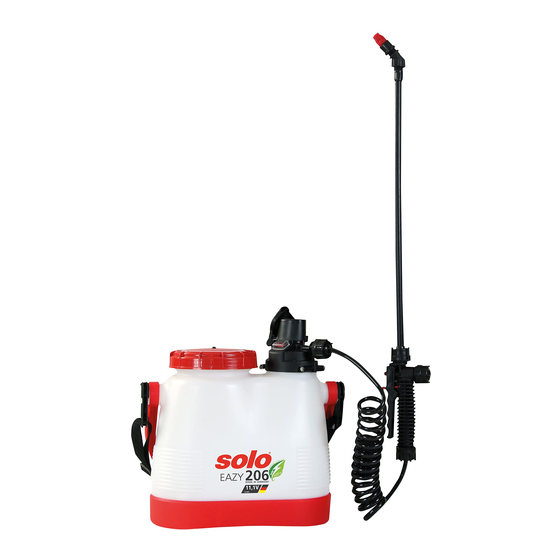

Battery sprayer
Hide thumbs Also See for 206 Eazy:
Table of Contents

Advertisement

Quick Links

Download this manual
206 Eazy
Original instructions
Battery sprayer
Instruction manual
Important!
Read this instruction manual carefully
before first operation and strictly
observe the safety regulations!
70277
01/2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 206 Eazy and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Solo 206 Eazy

Summary of Contents for Solo 206 Eazy

  • Page 1 206 Eazy Original instructions Battery sprayer Instruction manual Important! Read this instruction manual carefully before first operation and strictly observe the safety regulations! 70277 01/2022...
  • Page 2  Use of unapproved chemicals or dilutions. 1 EC declaration of conformity  Damage caused by use in the rental business. SOLO Kleinmotoren GmbH, Industriestraße 9, Any warranty work must be performed by one of D-71069 Sindelfingen, GERMANY our authorised specialist vendors. Cleaning, care...

  • Page 3: Safety Provisions

     Replace damaged parts without delay. Only use  Use the device only for application of liquid SOLO genuine spare parts. herbicides, pesticides and weed killers as well  Only use the genuine battery. Accessories and as liquid fertilisers that are available in batteries must be approved for this device.

  • Page 4: Safe Handling Of The Rechargeable Battery And The Charger

     6.3 Safe handling of spraying liquids Never connect the two terminals of the rechargeable battery (+ / -) with a conducting  Follow suitable procedures and use collection object (short circuit). Make sure there cannot be containers to prevent any contamination of the any short circuit of the contacts when charging environment, the public waterways and/or storm the battery outside of the device.
  • Page 5 6.7 When transporting the sprayer  Always switch off the pump when transporting the device.  Depressurise the device in accordance with chap. 9.2.  The device must be securely strapped down when transported on vehicles.  Prevent leakages of spraying agents. The liquid tank of the sprayer and all liquid carrying hoses must be inspected regularly for leaks.
  • Page 6 7 Work preparation Fig. 1 a. Spray tank b. Tank lid screwed to the filling socket (c) d. Carry handle e. Standing foot f. On/off switch g. Hand valve h. Spray wand i. Nozzle attachment j. Spray tube holder k. Carrying belt l.

  • Page 7: Charging The Battery

    The filter (q), filling screen(r) and intake screen (s) Assembly carrying belt are required when using the device. Fig. 3 7.3 Charging the battery Before removing the rechargeable battery from the device, always switch the on/off switch to "0"! Fig. 6 ...
  • Page 8 Before replacing the battery, make sure that the Fig. 9 battery and unit contacts are clean, dry, and free of foreign bodies. Fig. 8 Fill the tank no further than to the upper-most mark (MAX) of the spray tank. Overfilling the tank or spills can contaminate public waterways, rain- and storm water channel and must be avoided.

  • Page 9: Maintenance, Cleaning And Storage

    Nozzle adjustment: 9.1 Disposal of residual spray volume Residual spray volumes of less than 200 ml Fig. 10 [6.8 oz] are no longer pumped effectively. Either add more spray formula and continue spraying or, when finishing off, dilute the residual volume with 2 litres [68 oz] of clean water and apply to the already treated area.
  • Page 10 10.2 Test run 10.4 Down periods and storage When the spraying season starts and then every Turn off the pump, depressurise the device, month, the following items must be checked in a remove the battery, and store it securely. test run with clean water: Empty and clean the sprayer according to chap.

  • Page 11: Technical Data

    Max. fill volume 6.0 l [1.59 gal] Residual volume, (remaining liquid in tank that cannot be used) < 200 ml [6.8 oz] Pump system SOLO Diaphragm pump Operating pressure 2.5 bar [36 psi] Permissible operating temperature 0–40 °C [32–104 °F] Application volume (with standard spraying nozzle) 0.6 l –...

  • Page 12: Made In Germany

    Made in Germany SOLO Kleinmotoren GmbH Industriestraße 9 D-71069 Sindelfingen Postfach / PO Box 60 01 52 D-71050 Sindelfingen DEUTSCHLAND / GERMANY Tel.: +49 (0)7031 301-0 Fax: +49 (0)7031 301-202 info@solo-germany.com http://solo.global...
