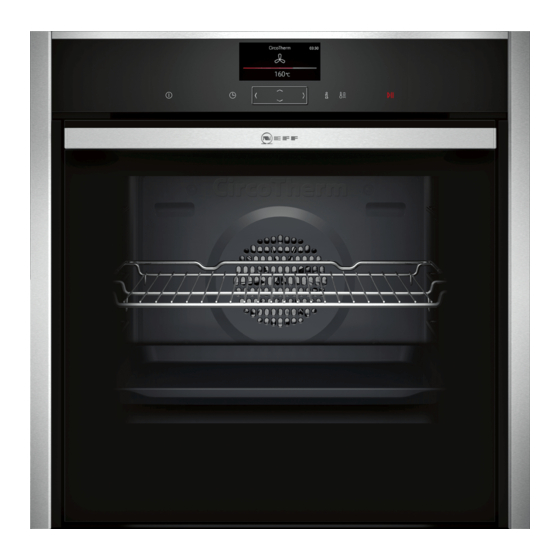

- Page 1 All manuals and user guides at all-guides.com Oven [en] User manual and installation instructions B47CS22.0...
-
Page 2: Table Of Contents
All manuals and user guides at all-guides.com en Safety ¡ Do not connect the appliance if it has been Table of contents damaged in transit. 1.2 Intended use USER MANUAL This appliance is designed only to be built into kitchen units. Read the special installation Safety .............. -
Page 3: Safety
All manuals and user guides at all-guides.com Safety en ▶ If possible, wear protective gloves. Opening the appliance door creates a The hinges on the appliance door move when draught. Greaseproof paper may come into the door is opened and closed, which could contact with the heating element and catch trap your fingers. -
Page 4: Preventing Material Damage
All manuals and user guides at all-guides.com en Preventing material damage 1.5 Halogen bulb WARNING ‒ Risk of suffocation! Children may put packaging material over WARNING ‒ Risk of burns! their heads or wrap themselves up in it and The bulbs in the cooking compartment get suffocate. -
Page 5: Environmental Protection And Saving En- Ergy
All manuals and user guides at all-guides.com Environmental protection and saving energy en 3 Environmental protection and saving energy 3.1 Disposing of packaging When baking multiple dishes, do so in succession or in parallel. The packaging materials are environmentally compat- ¡ The cooking compartment is heated after baking ible and can be recycled. -
Page 6: Rapid Heat-Up
All manuals and user guides at all-guides.com en Familiarising yourself with your appliance Buttons Control element 4.2 Buttons The buttons are touch-sensitive areas. To select a function, press the corresponding button. Symbol Name On/off Switch the appliance on or off Main menu Select operating modes and settings Time-setting options/ ¡... - Page 7 All manuals and user guides at all-guides.com Familiarising yourself with your appliance en Function Name Heating functions Select the required heating function and temperature for your food Baking and roasting Recommended settings for baking and roasting assistant MyProfile Individually adjust the appliance settings Home Connect Connect the oven to a mobile end device and remotely control it.
- Page 8 All manuals and user guides at all-guides.com en Accessories Symbol Heating function Temperature Top/bottom heating 50 - 275 °C For gently cooking selected types of food. Heat is emitted from above and below. This type of heating is most effective between 150 and 250 °C. This type of heating is used to determine the energy consump- tion in the conventional mode.
- Page 9 You will find a comprehensive range of products for your appliance in our brochures and online: www.neff-international.com Accessories vary from one appliance to another. When Baking tray Slide the tray in with the sloping purchasing accessories, always quote the exact E.g.
- Page 10 All manuals and user guides at all-guides.com en Before using for the first time 6 Before using for the first time Configure the settings for initial start-up. Clean the ap- Use the or button to select the correct year. pliance and accessories.
- Page 11 All manuals and user guides at all-guides.com Time-setting options en Use the button to navigate to the next row. 7.4 Setting the type of heating and Use the or button to select the required temperat- temperature ure.
- Page 12 All manuals and user guides at all-guides.com en Baking and roasting assistant time (duration) and specify when you want your food to 8.3 Cooking time be ready. You can only use the delayed start function Once the set cooking time has elapsed, the appliance in conjunction with a heating function.
- Page 13 All manuals and user guides at all-guides.com Childproof lock en Requirement: The cooking compartment must have Use the or button to select the temperature ‒ cooled down. or cooking time. Use the or button to change the setting. Press ...
-
Page 14: Sabbath Mode
All manuals and user guides at all-guides.com en Rapid heat-up Press and hold the button until "Childproof lock 10.6 Deactivating the one-time childproof ▶ deactivated" appears on the display. lock 11 Rapid heat-up You can use the "Rapid heat-up" and "PowerBoost" functions to reduce the heat-up time. Whether the appliance is preheated with the "Rapid heat-up"... - Page 15 All manuals and user guides at all-guides.com Basic settings en 13 Basic settings You can configure the appliance to meet your needs. Basic setting Selection Home Connect Home Connect Settings 13.1 Overview of the basic settings → "Home Connect ", Page 16 Factory settings Restore Here you can find an overview of the basic settings and factory settings.
- Page 16 All manuals and user guides at all-guides.com en Home Connect 14 Home Connect This appliance is network-capable. Connecting your ap- 14.1 Setting up Home Connect pliance to a mobile device lets you control its functions Requirements via the Home Connect app, adjust its basic settings ¡ The appliance is connected to the power supply and and monitor its operating status.
- Page 17 All manuals and user guides at all-guides.com Cleaning and servicing en has been successfully downloaded, you can start in- 14.3 Operating the appliance with the stalling it via the Home Connect app if you are in your Home Connect app WLAN home network (Wi-Fi). The Home Connect app When the Remote start function is activated, you can will inform you once installation is successful.
- Page 18 All manuals and user guides at all-guides.com en Cleaning and servicing Remove all food remnants from the cooking com- Using oven cleaner in a hot cooking compartment ▶ partment and the appliance door before you next damages the enamel. heat up the appliance. Never use oven cleaner in the cooking compartment ▶...
- Page 19 All manuals and user guides at all-guides.com Cleaning and servicing en Area Suitable cleaning agents Information Rails ¡ Hot soapy water Soak any heavily soiled areas and use a brush or steel wool. Note: To clean thoroughly, detach the rails. → "Rails", Page 20 Accessories ¡...
- Page 20 All manuals and user guides at all-guides.com en Cleaning function 16 Cleaning function You can use the cleaning function to clean the appli- Press to switch the appliance on. ance. Press . Use the or button to select "EasyClean" . Use the ...
-
Page 21: Appliance Door
All manuals and user guides at all-guides.com Appliance door en Push the rail into the front socket until the rail 17.2 Attaching the rails also rests against the cooking compartment wall, Notes and then press this downwards . ¡... - Page 22 All manuals and user guides at all-guides.com en Appliance door Open the appliance door approx. 45° wide. ATTENTION! Opening and closing the appliance door when it is in the lock position damages the door hinges. Never force the appliance door open or closed. ▶...
- Page 23 All manuals and user guides at all-guides.com Appliance door en 18.2 Attaching the appliance door WARNING ‒ Risk of injury! If the door locks are unsecured, the appliance door Tip: Ensure that the appliance door is not wedged may become detached. at an angle and that it is properly fitted in place. After attaching the appliance door, close the left- ▶...
- Page 24 All manuals and user guides at all-guides.com en Appliance door Push down on the intermediate pane lightly around Tip: When fitting the door panes, make sure that , and carefully lift the retainer until you are able they are in the original order. to pull it out.
-
Page 25: Troubleshooting
All manuals and user guides at all-guides.com Troubleshooting en Insert the retaining bracket for the inner pane into Screw both screws back in on the left and right of the opening . the appliance door. 19 Troubleshooting You can rectify minor faults on your appliance yourself. - Page 26 Next time, set lower or higher values. ▶ Tip: A lot of information about the food preparation and corresponding setting values can be found on our website www.neff-international.com. Place a tea towel in the cooking compartment to 19.2 Replacing the oven light bulb prevent damage.
-
Page 27: Declaration Of Conformity
G. tomer Service telephone number to find them again quickly. 22 Declaration of Conformity Constructa Neff Vertriebs-GmbH hereby declares that Hereby, Constructa Neff Vertriebs-GmbH declares that the appliance with Home Connect functionality con- the appliance with Home Connect functionality is in forms to the basic requirements and other relevant pro- compliance with relevant statutory requirements. -
Page 28: How It Works
All manuals and user guides at all-guides.com en How it works 23 How it works Here, you can find the ideal settings for various types Baking on two or more levels Shelf position of food as well as the best accessories and cookware. 3 levels We have perfectly tailored these recommendations to ¡... - Page 29 All manuals and user guides at all-guides.com How it works en ¡ To catch any liquids that drip down, place the uni- Roasting in covered cookware versal pan into the cooking compartment at least ¡ Use a suitable lid that seals well. one level below the wire rack.
- Page 30 All manuals and user guides at all-guides.com en How it works Food Accessory/cookware Shelf pos- Heating Temperature in Cooking time in ition function °C mins → Page 6 Biscuits, 3 levels 1 pcs 4+3+1 140–160 15–30 Universal pan 2 pcs Baking tray Bread, without a tin, 750 g Universal pan ...
- Page 31 All manuals and user guides at all-guides.com How it works en Heat 1 litre of whole milk (3.5% fat) to 90 °C on the Place the containers on the cooking compartment hob and then leave it to cool down to 40 °C. floor. It is sufficient to heat UHT milk to 40 °C. Use the recommended settings when configuring Mix 150 g of chilled yoghurt into the milk.
- Page 32 All manuals and user guides at all-guides.com en How it works Keeping food warm ¡ To prevent the food from drying out, you can cover Tips for keeping food warm ¡ Do not keep food warming for longer than 2 hours. ¡...
-
Page 33: Installation Instructions
All manuals and user guides at all-guides.com Installation instructions en Food Accessory/cookware Shelf pos- Heating Temperature in Cooking time in ition function °C mins → Page 6 Hot water sponge cake Springform cake tin, 160 - 170 30 - 40 diameter 26 cm Hot water sponge cake, on Springform cake tin, ... - Page 34 All manuals and user guides at all-guides.com en Installation instructions tronic implants, e.g. pacemakers or insulin 24.2 Appliance dimensions pumps. You will find the dimensions of the appliance here ▶ Wearers of electronic implants must stay at least 10 cm away from the control panel or controls during the installation.
- Page 35 All manuals and user guides at all-guides.com Installation instructions en Hob type a raised in mm a flush in mm b in mm Full-surface induction hob Gas hob Electric hob ¡ Ensure that air exchange is guaranteed in accord- 24.5 Installation in a tall unit ance with the diagram.
- Page 36 All manuals and user guides at all-guides.com en Installation instructions ¡ The power cable must be plugged in at the rear of If required, you can adjust the gap between the ap- the appliance until you hear a clicking sound. A 3 m pliance door and the panels using the adjustment power cable can be obtained from the after-sales screws on the left and right.
- Page 37 All manuals and user guides at all-guides.com Installation instructions en If required, you can adjust the height of the appli- Open the appliance door slightly, then refit the pan- ance door using the adjustment screws on the left els and screw them in place, first at the top and and right.
- Page 38 All manuals and user guides at all-guides.com...
- Page 39 All manuals and user guides at all-guides.com...
- Page 40 All manuals and user guides at all-guides.com Valid within Great Britain: Imported to Great Britain by BSH Home Appliances Ltd. Grand Union House Old Wolverton Road Wolverton, Milton Keynes MK12 5PT United Kingdom *9001680241* 9001680241 BSH Hausgeräte GmbH Carl-Wery-Straße 34 020202 81739 München, GERMANY...
