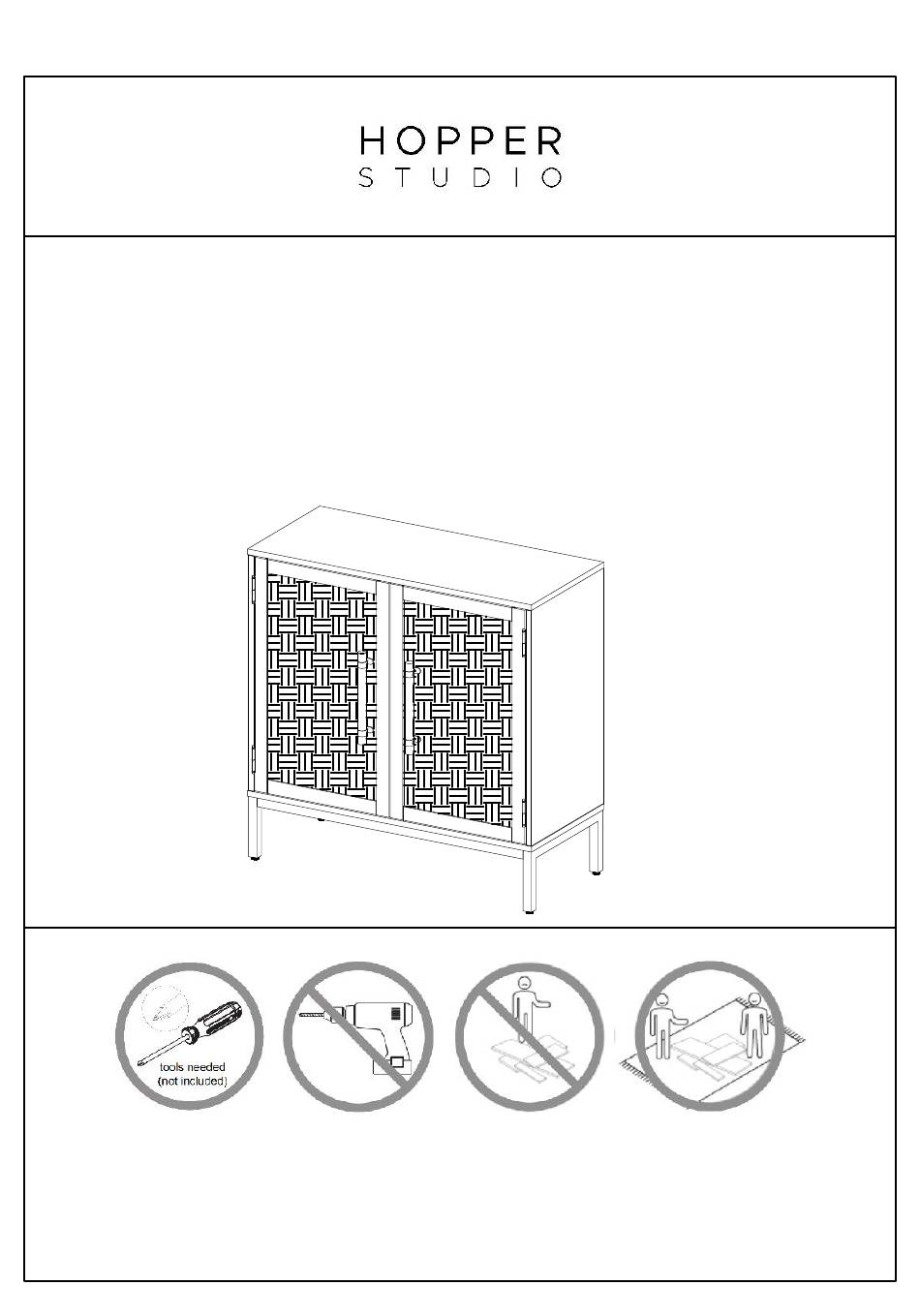

HOPPER STUDIO Sophia 7185AB581BCV63 Assembly Instructions Manual

2 door cabinet

Download this manual

PRODUCT NAME

DIMENSIONS

ITEM NO.

1. Check for damaged or missing parts . Call 1-800-696-8446 to order missing supplies.

2. Use a soft surface or the carton as a working surface to prevent damage during assembly.

3. It is recommended to have 2 adults on hand for assembly.

4. Gather all tools prior to assembly.

5. WARNING! When included, anti-tipping hardware MUST be installed for your safety.

QUESTIONS? Call 1-800-696-8446, or email cs@ptsamerica.com

ASSEMBLY INSTRUCTIONS

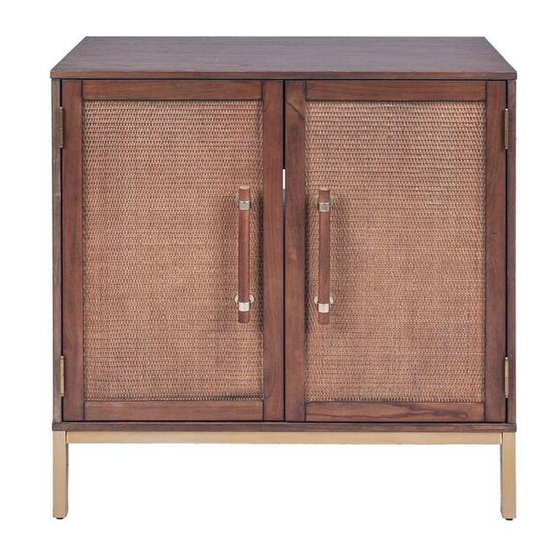

: Sophia 2 Door Cabinet

: 34"L x 15"W x 34"H

: 7185AB581BCV63

7185AW581BCV63

7185GY581BCV63

7185LB581BCV63

7185MC581BCV63

7185TT581AUV63

PAGE 1 OF 12

Need help?

Do you have a question about the Sophia 7185AB581BCV63 and is the answer not in the manual?

Page 1 PAGE 1 OF 12 ASSEMBLY INSTRUCTIONS PRODUCT NAME : Sophia 2 Door Cabinet DIMENSIONS : 34"L x 15"W x 34"H ITEM NO. : 7185AB581BCV63 7185AW581BCV63 7185GY581BCV63 7185LB581BCV63 7185MC581BCV63 7185TT581AUV63 1. Check for damaged or missing parts . Call 1-800-696-8446 to order missing supplies. 2.
Page 3: Parts List
PAGE 3 OF 12 PARTS LIST ： Top Panel Left Side Panel Right Side Panel 2pcs Back Rail Bottom Panel Side Leg 2pcs Back Panel Shelf Panel Left Door Right Door 2pcs Handle QUESTIONS? Call 1-800-696-8446, or email cs@ptsamerica.com © 2022.
Page 4 PAGE 4 OF 12 HARDWARE : 16pcs Wooden Dowel Ø8x40mm 16pcs Cam Lock Bolt 16pcs Cam Lock 8pcs Flat Washer Ø5/16" 8pcs Lock Washer Ø5/16" Hexagonal Nut Ø5/16" 8pcs Wrench for Nut Door Catcher 4set 16pcs Umbrella Screw Ø5/32" x 5/8" 18pcs Screw with Washer Ø5/32"...
Page 12 PAGE 12 OF 12 STEP 13 Note: adjust levelers on an uneven floor. Note: The long screw included is suitable for most wall situations. Use appropriate screw for your application. Do not overtightened the cable. WARNING! Anti-tipping hardware MUST be installed for your safety. QUESTIONS? Call 1-800-696-8446, or email cs@ptsamerica.com ©...
