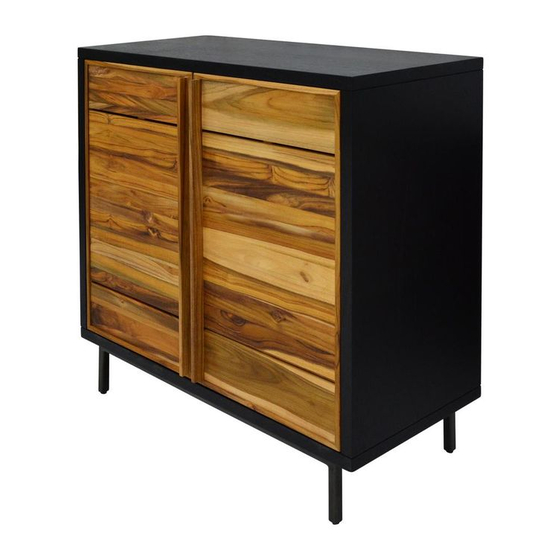

HOPPER STUDIO 7194TK581BUY59 Assembly Instructions Manual

2 door cabinet meridian

Download this manual

PRODUCT NAME

DIMENSIONS

ITEM NO.

1. Check for damaged or missing parts . Call 1-800-696-8446 to order missing supplies.

2. Use a soft surface or the carton as a working surface to prevent damage during assembly.

3. It is recommended to have 2 adults on hand for assembly.

4. Gather all tools prior to assembly.

5. WARNING! When included, anti-tipping hardware MUST be installed for your safety.

QUESTIONS? Call 1-800-696-8446, or email cs@ptsamerica.com

ASSEMBLY INSTRUCTIONS

: 2 Door Cabinet Meridian

: 34"L x 15"W x 34"H

: 7194TK581BUY59

PAGE 1 OF 10

Need help?

Do you have a question about the 7194TK581BUY59 and is the answer not in the manual?

Page 1 : 34"L x 15"W x 34"H ITEM NO. : 7194TK581BUY59 1. Check for damaged or missing parts . Call 1-800-696-8446 to order missing supplies. 2. Use a soft surface or the carton as a working surface to prevent damage during assembly.
Page 4: Parts List
PAGE 4 OF 10 PARTS LIST: Top panel 2pcs Side Panel Bottom panel Assembly 2pcs Back Support Back Panel Shelf Right Door Panel Left Door Panel HARDWARE: 16pcs Cam Lock 16pcs Cam Lock Bolt 18pcs Wooden dowel Ø8x40mm Screw with Washer Ø5/32" x 5/8" 16pcs Pin Shelf 4pcs...
Page 9 PAGE 9 OF 10 STEP 9 STEP 10 10.1 10.2 10.1 Latch the door hing assembly to mounting plate on the side panel. 10.2 Push the door hinge towards the mounting plate secure the hinge. 10.3 Repeat step 1 and 2 for all the hinges. 10.4 Refer to page 3 for intructions on how to adjust the door.
Page 10 PAGE 10 OF 10 STEP 11 Note: The long screw included is suitable for most wall situations. Use appropriate screw for your application. Do not overtightened the cable. WARNING! Anti-tipping hardware MUST be installed for your safety. STEP 12 Note: adjust levelers on an uneven floor. QUESTIONS? Call 1-800-696-8446, or email cs@ptsamerica.com ©...
