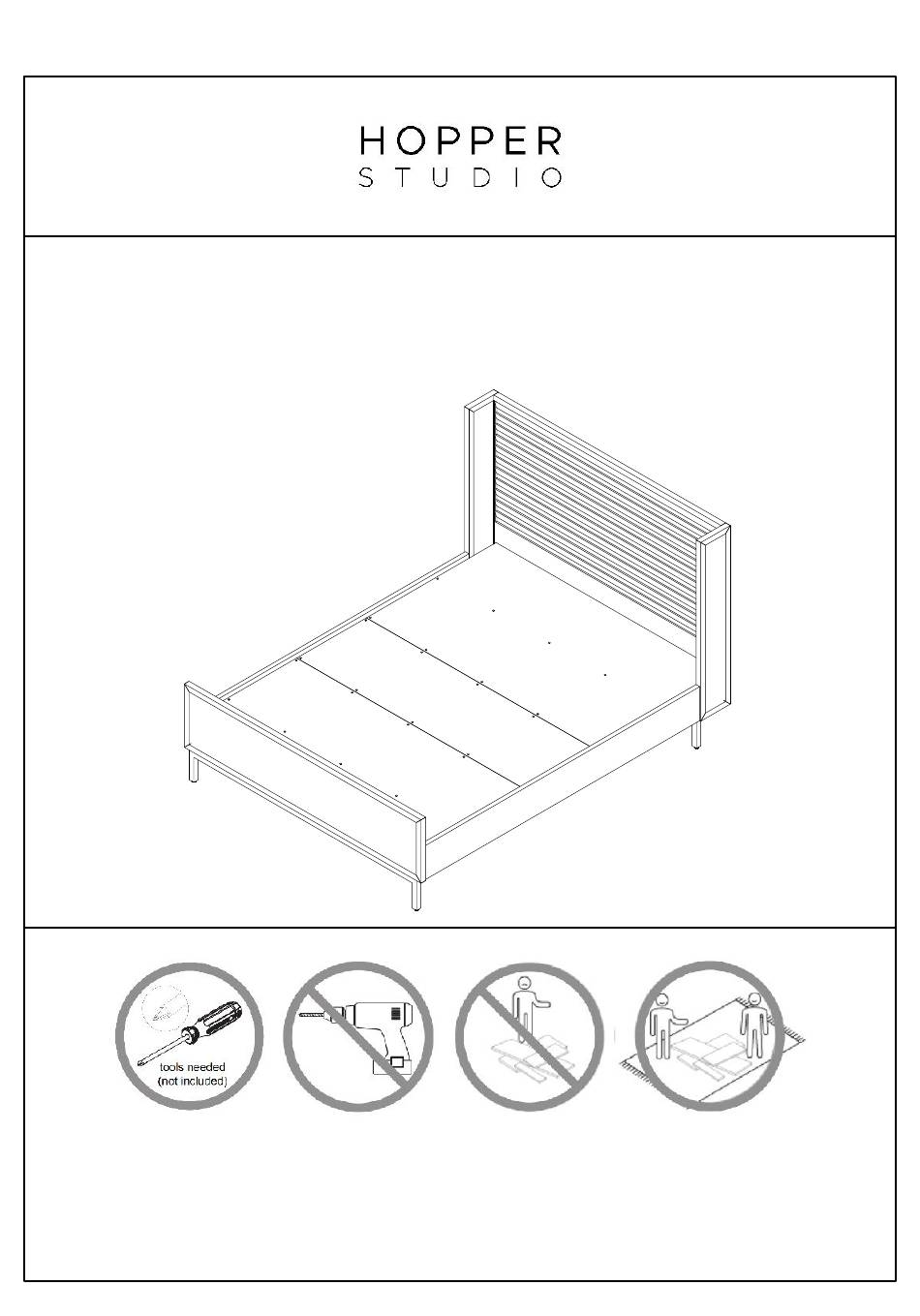

HOPPER STUDIO 7190GY415BUY89 Assembly Instructions

Portland queen bed

PRODUCT NAME

DIMENSIONS

ITEM NO.

1. Check for damaged or missing parts. Call 1-800-696-8446 to order missing supplies.

2. Use a soft surface or the carton as a working surface to prevent damage during assembly.

3. It is recommended to have 2 adults on hand for assembly.

4. Gather all tools prior to assembly.

5. WARNING! When included, anti-tipping hardware MUST be installed for your safety.

QUESTIONS? Call 1-800-696-8446, or email cs@ptsamerica.com

ASSEMBLY INSTRUCTIONS

: Portland Queen Bed

: 64"W x 84"D x 49"H

: 7190GY415BUY89 / 7190GY863BUY90

PAGE 1 OF 5

Table of Contents

Need help?

Do you have a question about the 7190GY415BUY89 and is the answer not in the manual?

Page 1 : 64"W x 84"D x 49"H ITEM NO. : 7190GY415BUY89 / 7190GY863BUY90 1. Check for damaged or missing parts. Call 1-800-696-8446 to order missing supplies. 2. Use a soft surface or the carton as a working surface to prevent damage during assembly.
Page 2 PAGE 2 OF 5 PARTS LIST: Headboard Footboard Side Rail 2pcs Slat 4pcs Middle Leg 4pcs Mattress Panel A Mattress Panel B Mattress Panel C HARDWARE: Long Bolt 5/16" x 4" 8pcs Hexagonal Nut 5/16" 8pcs 8pcs Half Moon Nut 5/16" Wrench for Nut Ø5/16"...
Page 3 PAGE 3 OF 5 STEP 1 1.1 Secure the long bolt (I) into the headboard (A). 1.2 Insert the half moon nut (K) into the slot on the side rail (C), slide the long bolt (I) that was secured on the headboard (A) and tighten with the hex nut (J) using the wrench (L). STEP 2 Repeat step 1 for the footboard (B) installation QUESTIONS? Call 1-800-696-8446, or email cs@ptsamerica.com...
