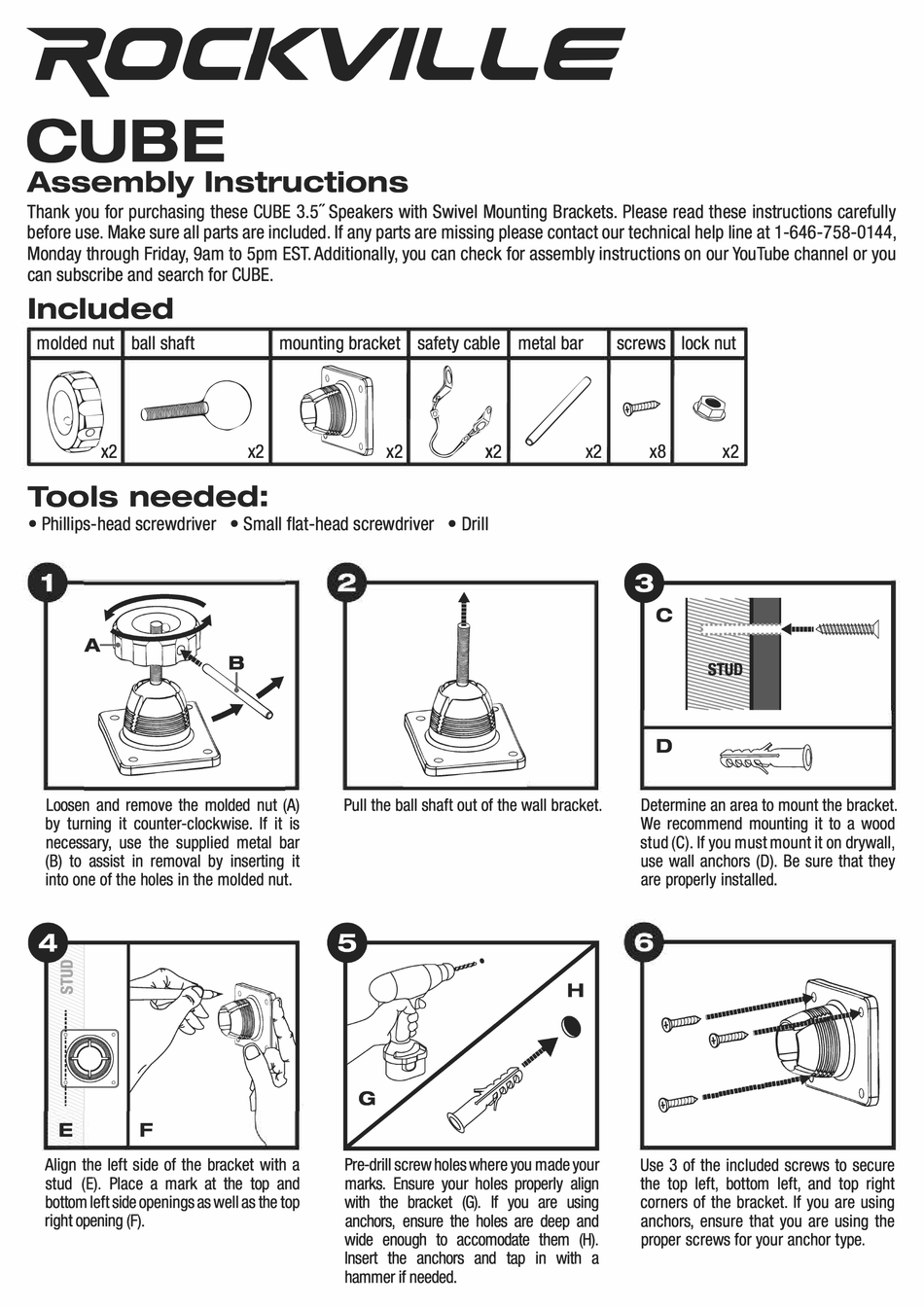

Rockville CUBE Assembly Instructions

r{OC/0//LLE
CUBE
Assembly Instructions

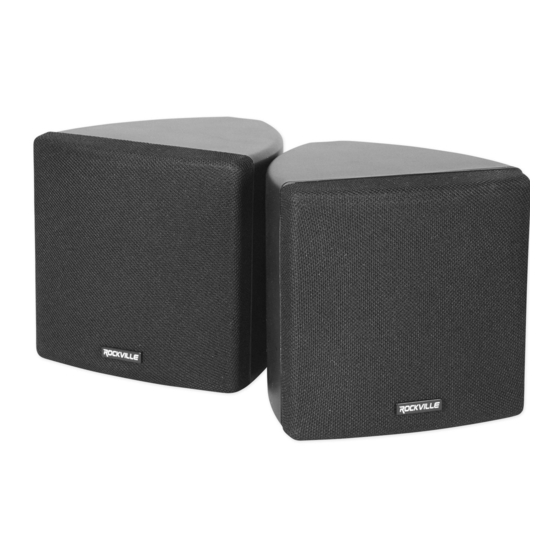

Thank you for purchasing these CUBE 3.5" Speakers with Swivel Mounting Brackets. Please read these instructions carefully
before use. Make sure all parts are included. If any parts are missing please contact our technical help line at 1-646-758-0144,
Monday through Friday, 9am to 5pm EST. Additionally, you can check for assembly instructions on our You Tube channel or you
can subscribe and search for CUBE.
Included
molded nut ball shaft
ij)
�
x2
Tools needed:
• Phillips-head screwdriver • Small flat-head screwdriver • Drill
Loosen and remove the molded nut (A)
by turning it counter-clockwise. If it is
necessary, use the supplied metal bar
(B) to assist in removal by inserting it
into one of the holes in the molded nut.
E F
Align the left side of the bracket with a
stud (E). Place a mark at the top and
bottom left side openings as well as the top
right opening (F).
mounting bracket safety cable metal bar
x2 x2
�
Pull the ball shaft out of the wall bracket.
Pre-drill screw holes where you made your
marks. Ensure your holes properly align
with the bracket (G). If you are using
anchors, ensure the holes are deep and
wide enough to accomodate them (H).
Insert the anchors and tap in with a
hammer if needed.
V�
�2
screws lock nut
�
�
x8 x2
D
Determine an area to mount the bracket.
We recommend mounting it to a wood
stud (C). If you must mount it on drywall,
use wall anchors (D). Be sure that they
are properly installed.
.... .. .. .. .. .. .. . .... .. . .
�,
Use 3 of the included screws to secure
the top left, bottom left, and top right
corners of the bracket. If you are using
anchors, ensure that you are using the
proper screws for your anchor type.
