SCS CTE701 Operating Instructions Manual

USER GUIDE TB-9031
CTE701 Verification Tester
Operation Instructions

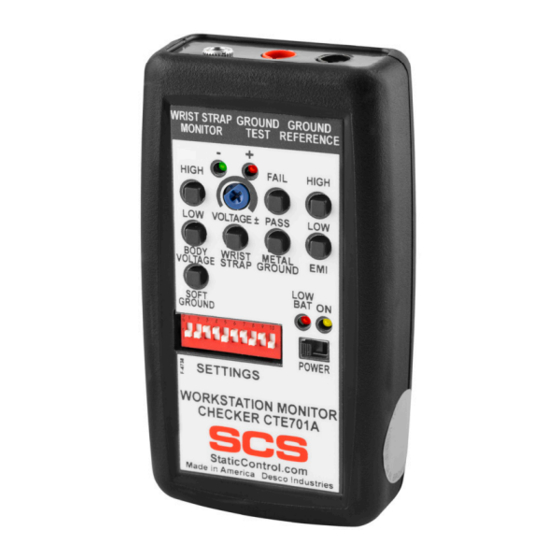

Figure 1. SCS CTE701 Verification Tester
Description
The SCS CTE701 Verification Tester is used to perform
periodic test limit verification of the SCS WS Aware
Monitor, Ground Master Monitor, Iron Man® Plus
Monitor, and Ground Man Plus Monitor. Verification
may be accomplished without removing the monitor
from its workstation. The Verification Tester is National
Institute of Standards and Technology (NIST) traceable.
Frequency of verification is based on the critical
nature of the ESD susceptible items handled. SCS
recommends annual calibration of workstation monitors
and the CTE701 Verification Tester. The CTE701
Verification Tester meets ANSI/ESD S20.20 and
Compliance Verification ESD TR53.
TB-9031 Page 1 of 11 November 2022
SCS - 926 JR Industrial Drive, Sanford, NC 27332
East: (919) 718-0000 | West: (909) 627-9634 • Website:
The SCS CTE701 Verification Tester can be used with
the following items:
Item Description
770067 WS Aware Monitor
770068 WS Aware Monitor
CTC061-3-242-WW WS Aware Monitor
CTC061-RT-242-WW WS Aware Monitor
CTC062-RT-242-WW WS Aware Monitor
770044 Ground Master Monitor
CTC331-WW Iron Man® Plus Monitor
CTC334-WW Ground Man Plus Monitor
CTC337-WW Wrist Strap and Ground Monitor
773 Wrist Strap and Ground Monitor
Packaging
1 CTE701 Verification Tester
1 Black Alligator-to-Banana Test Lead, 3 ft.
1 Red Mini Grabber-to-Banana Test Lead, 3 ft.
1 Black 3.5 mm Mono Cable, 2 ft.
1 9V Alkaline Battery
1 Certificate of Calibration
StaticControl.com
Made in the
United States of America
© 2022 DESCO INDUSTRIES INC
Employee Owned
