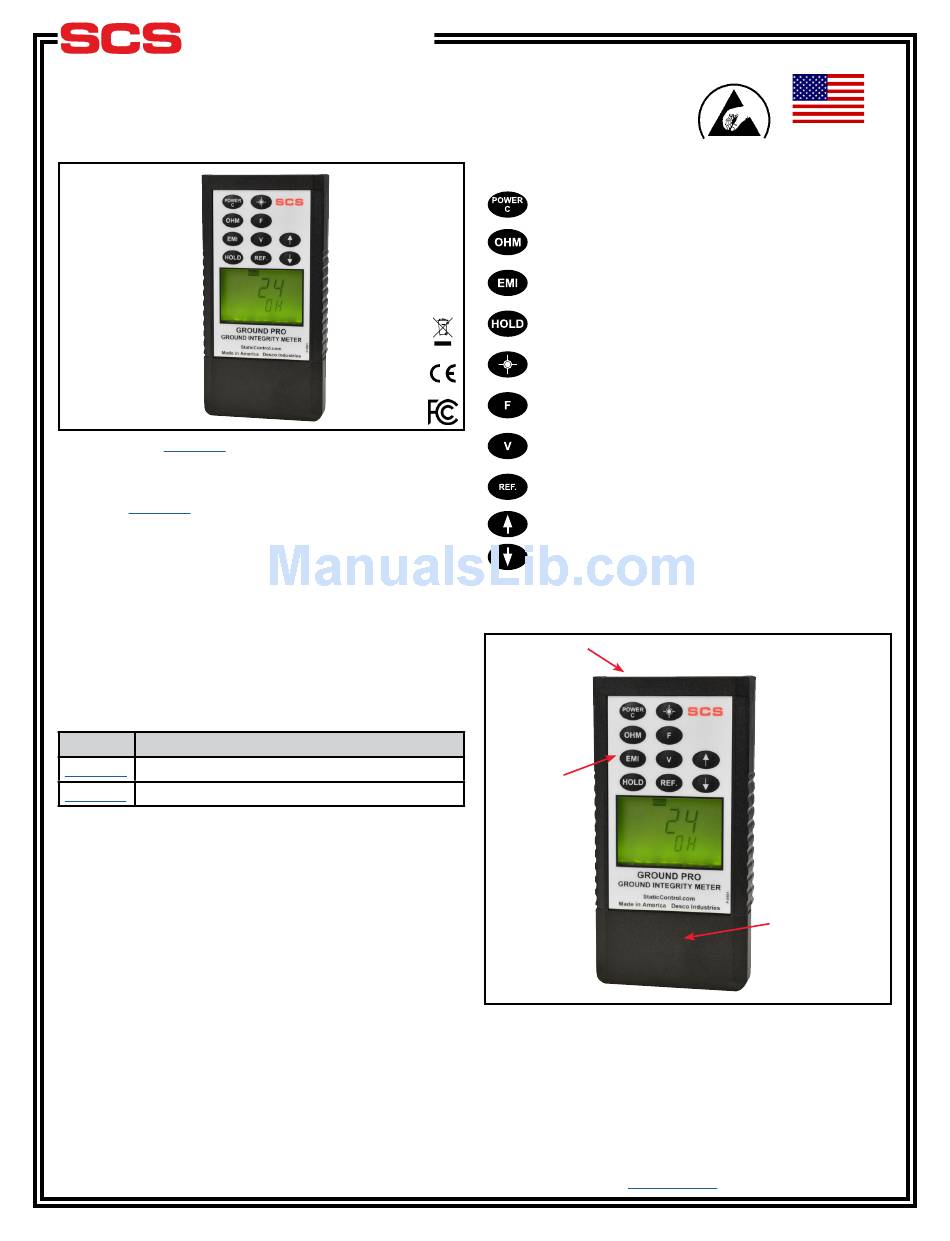

SCS CTM051 User Manual

USER GUIDE TB-9024
Ground Pro Meter
Installation, Operation and Maintenance

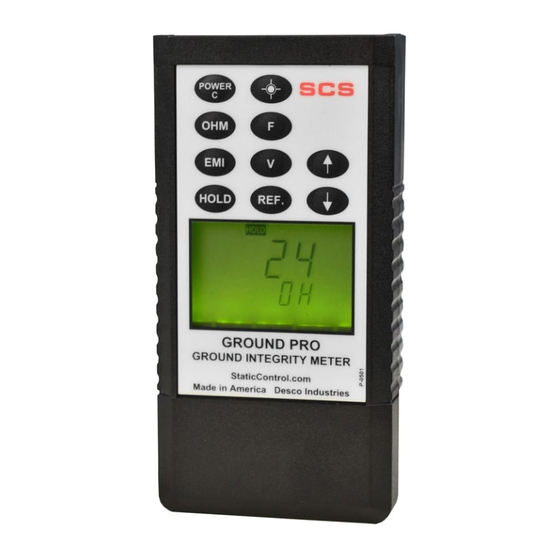

Figure 1. SCS CTM051

Description

The SCS CTM051 Ground Pro Meter is a
comprehensive instrument that measures the
ground connection of your equipment in accordance
with Grounding standard ANSI/ESD S6.1 and
ANSI/ESD S20.20. In addition to measuring ground
impedance, it also measures AC and DC voltage on the
ground as well as the presence of high-frequency noise
or electromagnetic interference (EMI) on the ground,
alerting you to possible functionality problems, such as
tool lockups, erratic behavior and parametric errors.
The Ground Pro Meter and its accessories are available
as the following item numbers:
Item Description
CTM051 Ground Pro Meter
NCA006 Replacement Test Leads, 1 Pair
Packaging
1 Ground Pro Meter
2 Test Leads
1 9V Alkaline Battery
1 Certificate of Calibration
TB-9024 Page 1 of 7 November 2017
Ground Pro Meter
SCS - 926 JR Industrial Drive, Sanford, NC 27332 • (919) 718-0000 • Website:

Controls and Indicators

Turns the power on and off. Hold for a few seconds to
turn the unit off. Also resets some parameters
Switches the unit into impedance measurement mode
Switches the unit into high-frequency noise or
electromagnetic interference (EMI) measurement mode
Freezes the display/and shows the maximum
measurement value
Display backlight on/off
Function button, also checks Battery Voltage
Switches the unit into AC and DC voltage mode
Sets up the reference for measurements and alarms
Adjusts the scale for some parameters and adjusts
reference values
Features and Components
Banana
Jacks
Keypad
Figure 2. Ground Pro Meter features and components
StaticControl.com
Made in the
United States of America
Display
Battery
Compartment
(On the back)
© 2017 DESCO INDUSTRIES, INC.
Employee Owned
