SCS 770760 Installation, Operation And Maintenance Manual

USER GUIDE TB-9091
Resistance Pro Meter Kit
Installation, Operation and Maintenance

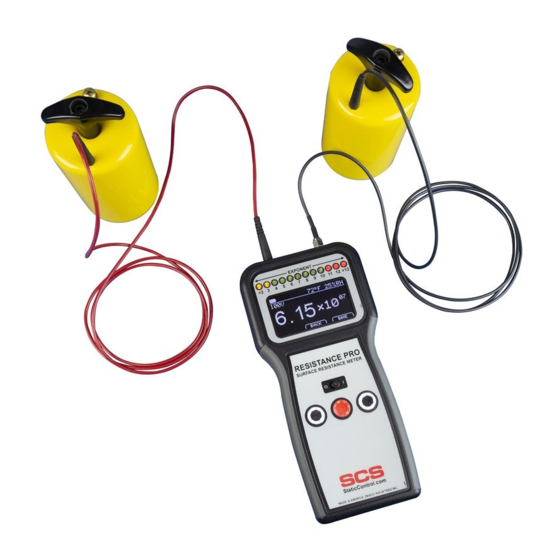

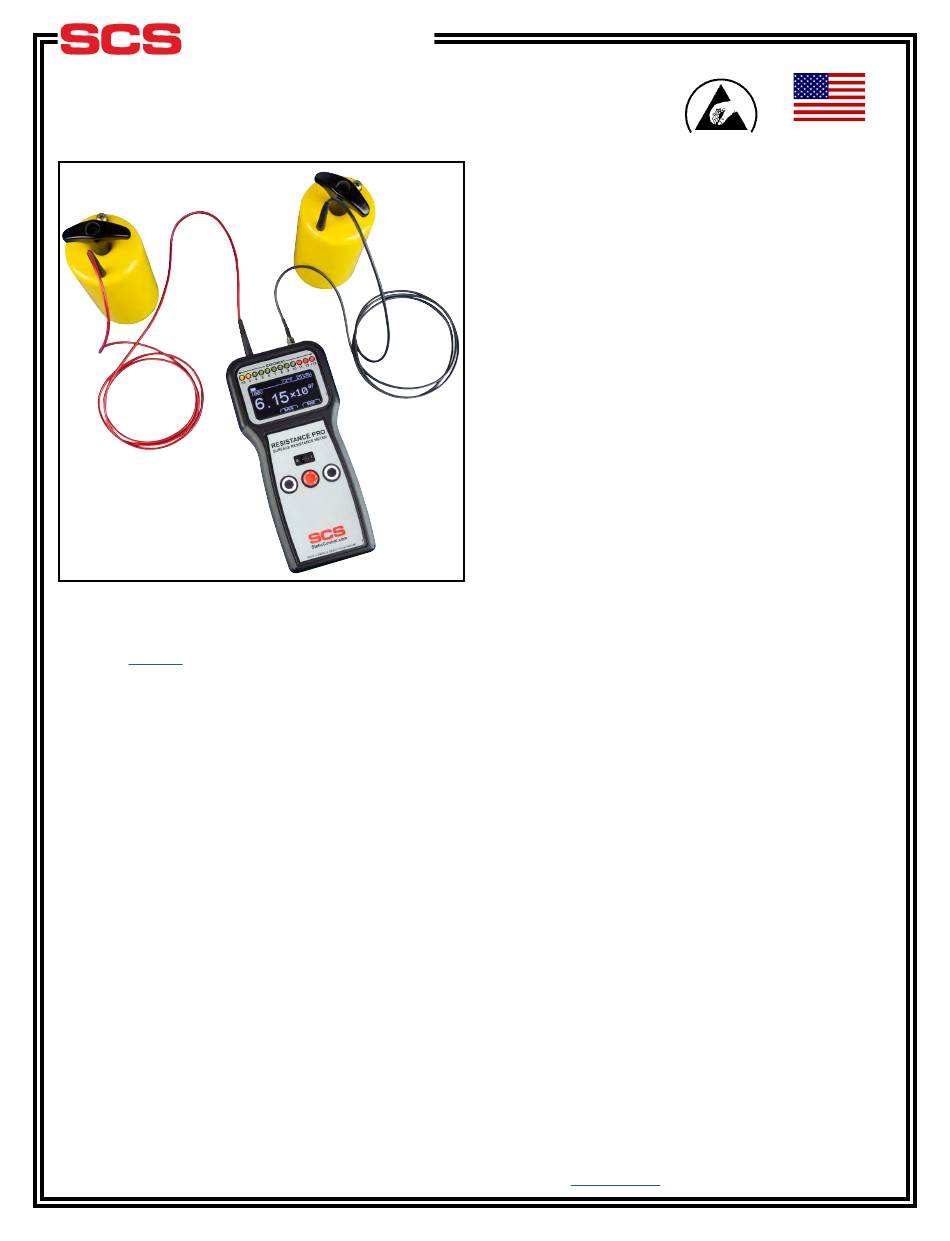

Figure 1. SCS Resistance Pro Meter Kit
Description
The SCS 770760 Resistance Pro Meter Kit is
an instrument designed to measure resistance
point-to-point (Rtt) or surface to ground (Rtg).
Its test functions include:
• Resistance measurement accuracy of ±10%
(±20% accuracy for 1 x 10
• Resistance range of <1 x 10
ohms
• Under load voltages of 10 and 100 volts ±5%
• Electrification period of approximately 15 seconds
The Resistance Pro Meter also measures ambient
temperature and relative humidity. Up to 100
measurements may be stored and recalled from the
meter's internal memory. This includes the resistance
value, temperature, relative humidity and test voltage at
the time of the measurement.
TB-9091 Page 1 of 8 April 2019
ohms and greater)
12
ohms to >1 x 10
3 12
SCS - 926 JR Industrial Drive, Sanford, NC 27332
East: (919) 718-0000 | West: (909) 627-9634 • Website:
The Surface Resistance Meter is referenced and
designed to be used to make measurements in
accordance with the test procedures in:
• Compliance Verification - ESD TR53 - Resistance
Measurements
• Worksurfaces - ANSI/ESD S4.1 Worksurfaces
• Floors - ANSI/ESD S7.1- Resistive Characterization
of Materials Floor Materials
• Foot Grounders - ESD SP9.2 - Foot Grounders
Resistive Characterization
• Garments - ANSI/ESD STM2.1 Garments
Seating - ANSI/ESD STM12.1- Seating - Resistive
Measurement
• Floor/Footwear - ANSI/ESD STM97.1 - Floor
Materials and Footwear- Resistance Measurement
in Combination with a Person
"A Compliance Verification Plan shall be established
to ensure the Organization's fulfillment of the technical
requirements of the ESD Control Program Plan. Process
monitoring (measurements) shall be conducted in
accordance with a Compliance Verification Plan that
identifies the technical requirements to be verified, the
measurement limits and the frequency at which those
verifications shall occur. The Compliance Verification
Plan shall document the test methods and equipment
used for process monitoring and measurements. If the
test methods used by the Organization differ from any
of the standards referenced in this document, then
there must be a tailoring statement that is documented
as part of the ESD Control Program Plan. Compliance
verification records shall be established and maintained
to provide evidence of conformity to the technical
requirements. The test equipment selected shall be
capable of making the measurements defined in the
Compliance Verification Plan." (ANSI/ESD S20.20
section 7.3)
