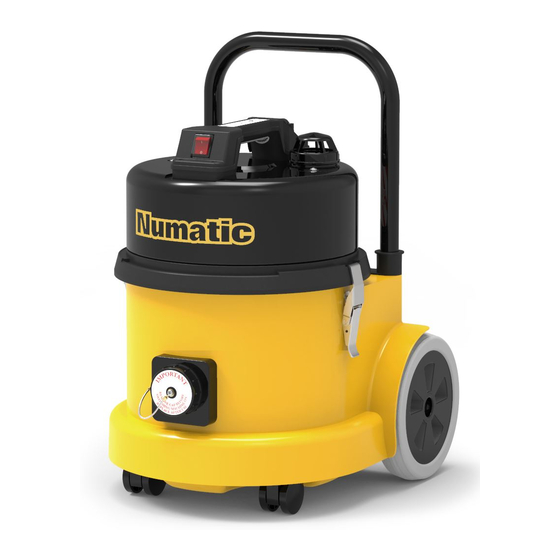

Numatic HZ 190 Original Instructions Manual
  1. Manuals
  2. Brands
  3. Numatic Manuals
  4. Dust Collector
  5. HZ 190
  6. Original instructions manual

Numatic HZ 190 Original Instructions Manual

Hazardous dust machines
Hide thumbs Also See for HZ 190:

Advertisement

Quick Links

Download this manual
HZ 190, 200, 250, 350, 370,
HZ 190, 200, 250, 350, 370,
450, 570, 750, 900
450, 570, 750, 900
HZD 450, 570, 750, 900
HZD 450, 570, 750, 900
Hazardous Dust Machines
Hazardous Dust Machines
Original Instructions
Original Instructions
CAUTION, Read the Instructions before using the machine.
CAUTION, Read the Instructions before using the machine.
numatic.com
numatic.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the HZ 190 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Numatic HZ 190

Summary of Contents for Numatic HZ 190

  • Page 1 HZ 190, 200, 250, 350, 370, HZ 190, 200, 250, 350, 370, 450, 570, 750, 900 450, 570, 750, 900 numatic.com numatic.com HZD 450, 570, 750, 900 HZD 450, 570, 750, 900 Hazardous Dust Machines Hazardous Dust Machines Original Instructions Original Instructions CAUTION, Read the Instructions before using the machine.
  • Page 2 Kits and Bags HZ 190 Kit AA17 NVM 1CH HZ 200 Kit AA17 NVM 1CH HZ 250 Kit AA17 NVM 1CH HZ 350 Kit AA18 NVM 2BH HZ 370 Kit AA18 NVM 2BH HZ 450 Kit AA19 NVM 3AH HZ 570...
  • Page 3 HZ Kits 607470 AA17 (190, 200, 250 Type) 902242 AA18 (350, 370 Type) 902243 AA19 (470, 570 Type) 902244 AA20 (750, 900 Type)
  • Page 4 Handle Assembly, 350, 450, 750 Handle Assembly, 350, 450, 750 HZ 350 HZ 450 HZ 750 HZD 450 HZD 750 4 x 10mm...
  • Page 5 Handle Assembly, 900 Handle Assembly, 900...
  • Page 6 Fitting the bag Fitting the bag...
  • Page 7 Fitting the hose, Fitting the air seperator Fitting the hose, Fitting the air seperator...
  • Page 8 Moving the machine. Moving the machine. (370 Drum only) Tool Tidy (370 Drum only) Tool Tidy...
  • Page 9 Changing the bag, cleaning the filter Changing the bag, cleaning the filter (REF Page 15) (REF Page 15)
  • Page 10 Low Flow Indicator This appliance is fitted with a low flow indicator to show that air flow has reduced. In the event of the indicator light flashing, check the following:- Cause Solution Dust caps still fitted Remove the caps. Blocked hose Unblock the hose.
  • Page 11 Changing the cable. Changing the cable.

  • Page 12: Rating Label

    Protection NOTE: A risk assessment should be conducted to determine which PPE should be worn. Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or the Numatic Technical helpline +44 (0)1460 269268 Safety Critical Components Mains leads: H05VV-F 10m x 3 Core x 1.0mm²...
  • Page 13 Replace any worn or damaged parts immediately. • Regularly examine the power cord. If damage is found such as cracking or ageing the power cord must be replaced by a qualifi ed person using the correct Numatic original part. • Change dust bag frequently.

  • Page 14: Important User Information

    Only use the dust collection bag (NVM-2BH) once. This machine must only be repaired by suitably trained and authorised personnel. Only use genuine Numatic International Ltd spare parts, for repairs. This machine must not be installed as a fi xed extraction system or run unattended.

  • Page 15: Maintenance

    Regularly examine the supply cord for damage, such as cracking or ageing. If damage is found, replace the cord before further use. All parts of this vacuum are safety critical only replace with the genuine Numatic spare parts. For user servicing, the machine must be dismantled, cleaned and serviced, as far as is reasonably practicable, without causing risk to maintenance staff...
  • Page 16 Weight Size Motor (Motor Only) (In Product) Under- Sealed Power (m3/h) (m3/h) pressure Suction (kg) (mm) (hpa) (mm) HZ 190 1000 2500 340x340x400 HZ 200 1000 2500 355x355x520 HZ 250 1000 2500 340x340x455 HZ 350 1000 2500 385x365x845 HZ 370...
  • Page 17 Numatic replacement spare parts 601144 908229 65mm Soft Brush Roll of 10 bags (NVA-44B) 602102 602159 2.4M Hose 38/32mm Adaptor (NVB-2B) (NVB-59B) 602160 604165 305mm Crevice tool TriTex (NVM-60B) 12’’ Filter 602161 604113 152mm Rubber Brush PermaTex (NVM-61B) 14’’ Filter...
  • Page 18 Spare Parts Drum 500895 HZ 190 YELLOW DRUM ASSEMBLY 500656 HZ 200 YELLOW DRUM ASSEMBLY 500024 HZ 250 YELLOW DRUM ASSEMBLY 500018 HZ 350 YELLOW DRUM ASSEMBLY 500031 HZ/HZD 450 YELLOW DRUM ASSEMBLY 500570 HZ/HZD 570 YELLOW DRUM ASSEMBLY 500412...
  • Page 20 14 inch Metal 3 core WD-0229 (A05)
  • Page 21 14 inch Metal 3 core (120 V) WD-0264 (A03)
  • Page 24 DEUTSCHLAND Tel: 05 11 98 42 16 0 www.numatic.de Numatic International SAS. 13 / 17 rue du Valengelier. EAE La Tuilerie – 77500 CHELLES, FRANCE Tel: 01 64 72 61 61 www.numatic.fr Numatic International BV. Vennootsweg 15, 2404 CG, Alphen aan den Rijn, NEDERLAND Tel: 0172 467 999 www.numatic.nl...

This manual is also suitable for:

Hz 200Hz 250Hz 350Hz 370Hz 450Hz 570 ... Show all
