Owner's Manual

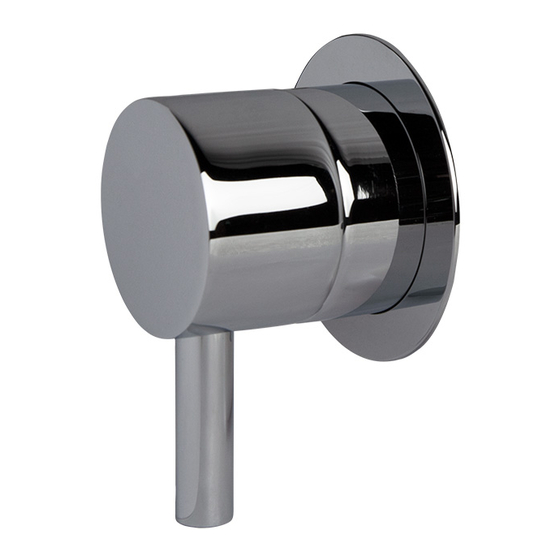

2-Way Diverter
Items # 14D2.L.S,14D2.S.S, 15D2.L.R,15D2.L.S, 15D2.X.R,15D2.X.S,
15D2.C.S, 15D2.C.R, 18D2.L.S, 18D2.X.S, 41D2.L.S, 41D2.L.O
12D2.L.R, 12D2.K.R
3-Way Diverter
Items # 14D3.L.S,14D3.S.S, 15D3.L.R,15D3.L.S, 15D3.X.R,15D3.X.S,
15D3.C.S, 15D3.C.R,18D3.L.S, 18D3.X.S, 41D3.L.S, 41D3.L.O,
12D3.L.R, 12D3.K.R
Features:
-Built-in 2-way or 3-way diverter valve with handle and square or round escutcheon
-Brass construction with single cartridge
-Non-sharing diverter complies with CalGreen code
-Meets and exceeds applicable national
-It can be installed to meet ADA compliance
-Includes rough-in, trim sold separately
Important: Keep this manual for future technical assistance and/or replacement parts. Please read the instructions within
the booklet carefully prior to installation. LACAVA recommends that this fixture be installed by a professional plumber and
will not be held responsible for any damage caused by improper installation. It is the responsibility of the homeowner to
ensure that this fixture complies with all local plumbing codes. Shut off water supply before starting installation. Please see
the Terms & Conditions found within this booklet for additional information. For technical assistance please contact
773-637-9600.
Importante: Guarde este manual para futura asistencia técnica y / o piezas de repuesto. Por favor, lea las instrucciones
en el folleto cuidadosamente antes de la instalación. LACAVA recomienda que este aparato sea instalado por un técnico
y no se hace responsable de los daños causados por una instalación incorrecta. Es la responsabilidad del propietario
garantizar que este aparato cumpla con todos los códigos de plomería locales. Por favor, consulte nuestros Términos y
Condiciones que se encuentran en este folleto para información adicional. Para obtener asistencia técnica, por favor
contacte a: 773-637-9600.
Table of Contents/Contenido:
Page 2: Product Specifications/Especificaciones de Producto
Page 3: Parts Breakdown/Desglosamiento de Partes
Page 4, 5: Installation Instructions/Instrucciones de Instalación
Page 6: Cleaning & Care/Cuidado y Limpieza
Page 7: Warranty/Garantía
Page 8, 9: Terms and Conditions/Términos y Condiciones
