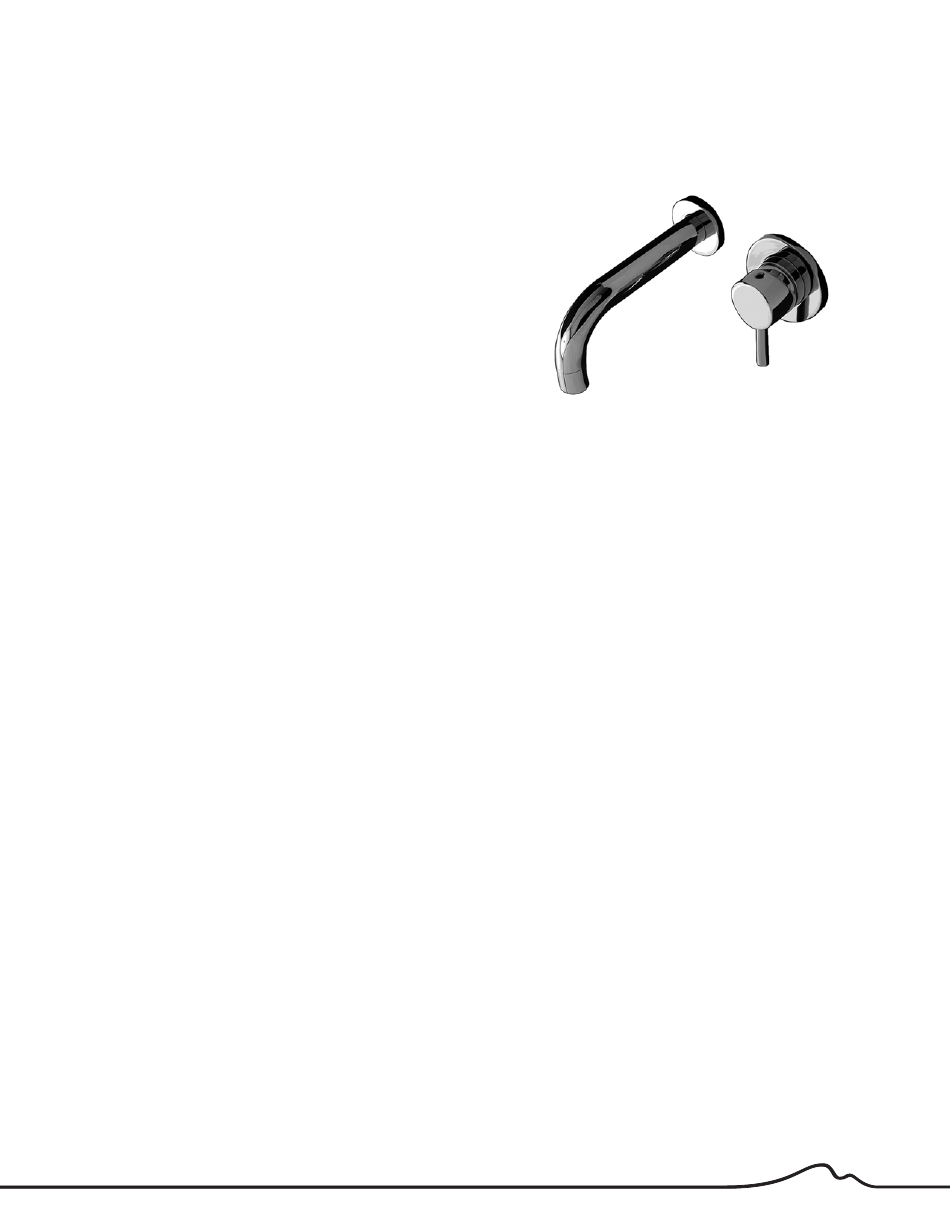

Owner's Manual

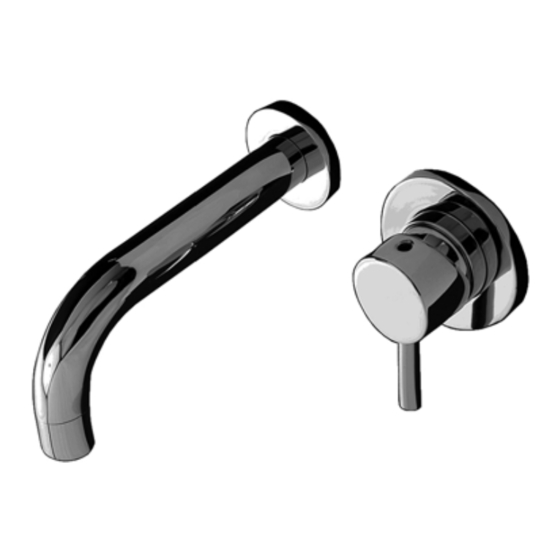

Cigno Faucet
Item #1514S, 1514L
Features:
-Wall-mount two-hole faucet with one lever handle
-Brass construction with single ceramic disc cartridge
-Flow rate: 1.2 GPM pressure compensating aerator
-Includes rough-in and trim
-Meets and exceeds the following standards/codes:
-NSF/ANSI 61-2011
-ASME A112.18.1-2012/CSA B125.1-12
-CMR 248 (Mass. Code of Approval)
-Section 1417(d) of the Safe Drinking Water Act
-It can be installed to meet ADA compliance
Important: Keep this manual for future technical assistance and/or replacement parts. Please read the instructions within
the booklet carefully prior to installation. LACAVA recommends that this fixture be installed by a professional plumber and
will not be held responsible for any damage caused by improper installation. It is the responsibility of the homeowner to
ensure that this fixture complies with all local plumbing codes. Shut off water supply before starting installation. Please see
the Terms & Conditions found within this booklet for additional information. For technical assistance please contact
773.637.9600.
Importante: Guarde este manual para futura asistencia técnica y / o piezas de repuesto. Por favor, lea las instrucciones
en el folleto cuidadosamente antes de la instalación. LACAVA recomienda que este aparato sea instalado por un técnico
y no se hace responsable de los daños causados por una instalación incorrecta. Es la responsabilidad del propietario
garantizar que este aparato cumpla con todos los códigos de plomería locales. Por favor, consulte nuestros Términos y
Condiciones que se encuentran en este folleto para información adicional. Para obtener asistencia técnica, por favor
contacte a: 773.637-9600.
Table of Contents/Contenido:
Page 2: Product Specifications/Especificaciones de Producto
Page 3: Parts Breakdown/Desglosamiento de Partes
Page 4: Installation Instructions/Instrucciones de Instalación
Page 6: Cleaning & Care/Cuidado y Limpieza
Page 7: Warranty/Garantía
Page 8: Terms and Conditions/Términos y Condiciones
6630 west wrightwood ave chicago il 60707 usa tel 773 637 9600 fax 773 637 9601 info@lacava.com www.lacava.com
LACAVA
®
Advertisement
Related Manuals for Lacava Cigno 1514S
Summary of Contents for Lacava Cigno 1514S
- Page 1 Important: Keep this manual for future technical assistance and/or replacement parts. Please read the instructions within the booklet carefully prior to installation. LACAVA recommends that this fixture be installed by a professional plumber and will not be held responsible for any damage caused by improper installation. It is the responsibility of the homeowner to ensure that this fixture complies with all local plumbing codes.
- Page 2 1/16. Nota: Los planos proporcionados en este documento tienen el propósito de dar al usuario una idea del producto y no están hechos a escala. Los tamaños de pulgadas se redondean al más cercano 1 / 16. LACAVA...
- Page 3 1514S-A or 1514L-A - Complete trim set 1514S/L-B - Rough-in assembly R1514-AER - Replacement aerator Note: Please reference this sheet and the corresponding part number when requesting parts. Nota: Por favor referirse a esta pagina y la parte correspondiente cuando ordene partes. LACAVA...
- Page 4 Allen wrench, tighten the set screw to keep in place, and then cover the hole with the cap. 13. If desired, place a small bead of silicone around outside edge of each escutcheon. 14. Turn on the water supply and check for any leaks. LACAVA...
- Page 5 Remove the screw cap Unscrew the cartridge Place the new cartridge in, undo the set screw, locking nut, and replace the locking nut, and take out the cartridge. reassemble the handle. take the handle off along with the handle cap. LACAVA...
- Page 6 - Nunca use materiales abrasivos o productos de limpieza que contienen amoníaco, lejía o ácido, ya que pueden causar daños a la superficie acabada. ¡Nos gustaría darle las gracias por su compra y estamos seguros que usted podrá disfrutar de nuestros productos por muchos años! LACAVA...
- Page 7 If a defect is found under normal use, while under warranty, LACAVA will repair or replace the product (whichever cost is smaller to LACAVA) at its own expense (excluding shipping and installation charges).
- Page 8 RETURN POLICIES: If the product is not satisfactory for any reason different from defects, it can be returned to LACAVA LLC up to 30 days from the shipping date after obtaining a Return Goods Authorization (RGA) valid for 60 days. If the product is not returned to LACAVA within that timeframe, the RGA will be voided and no further RGAs will be issued for the product.
- Page 9 Autorización de Devolución de Bienes (RGA), válida por 60 días. Si el producto no se devuelve a LACAVA dentro de ese plazo, la RGA se anularán y no se RGA se emitirán nuevos para el producto.
