Lacava ARCH 13016F Owner's Manual

Spout and mixer
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
LACAVA
®

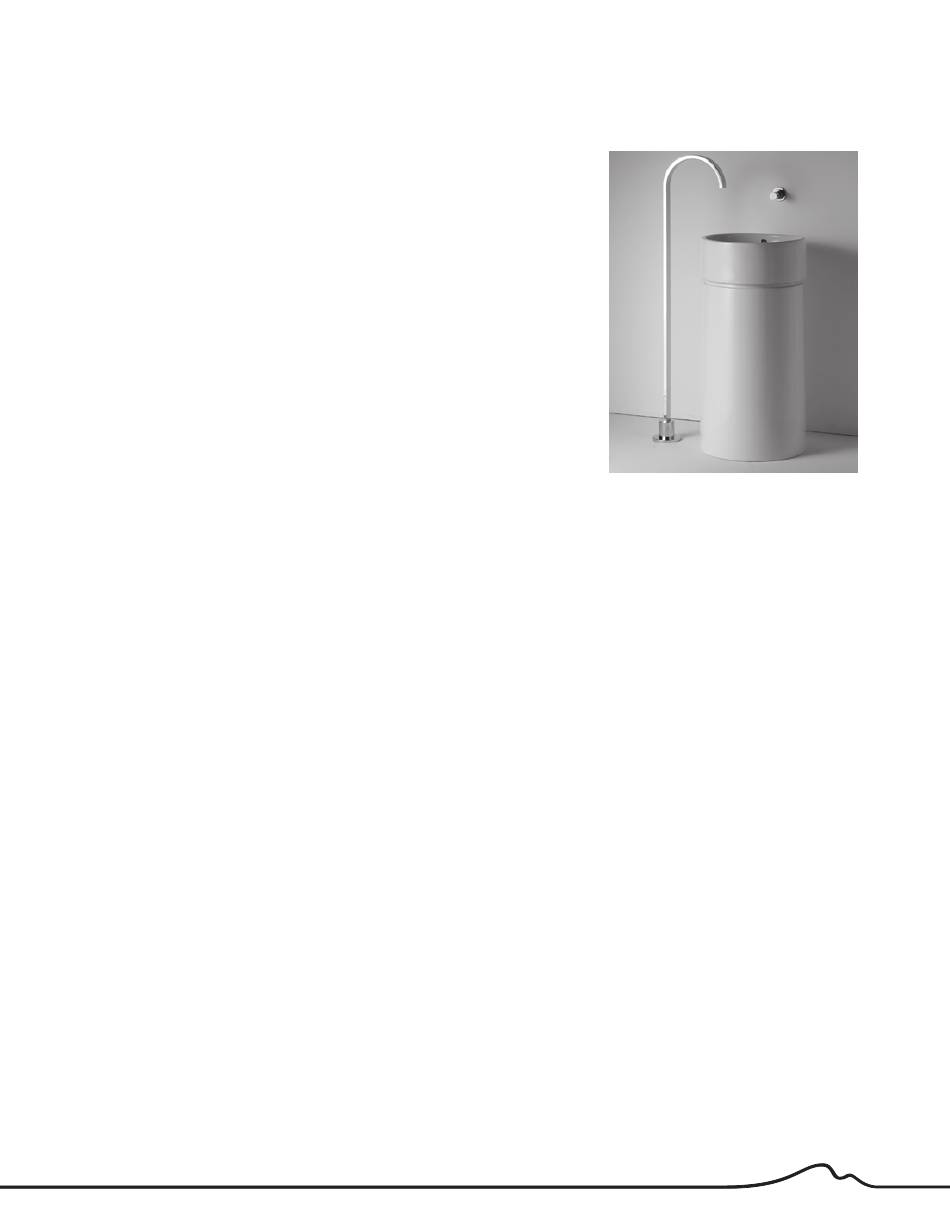

Owner's Manual
ARCH spout and mixer
Item # 13016F
Features:
-Two-hole faucet with floor-mount arch spout and wall-mount knob handle
-Flexible handle positioning
-Open spout features a natural water flow
-Brass construction with single ceramic disc cartridge
-Includes rough-in and trim
-Flow rate: 4.2 GPM at 60 PSI
Important: Keep this manual for future technical assistance and/or replacement parts. Please read the instructions within
the booklet carefully prior to installation. LACAVA recommends that this fixture be installed by a professional plumber and
will not be held responsible for any damage caused by improper installation. It is the responsibility of the homeowner to
ensure that this fixture complies with all local plumbing codes. Please see the Terms & Conditions found within this
booklet for additional information.
Importante: Guarde este manual para futura asistencia técnica y / o piezas de repuesto. Por favor, lea las instrucciones
en el folleto cuidadosamente antes de la instalación. LACAVA recomienda que este aparato sea instalado por un técnico
y no se hace responsable de los daños causados por una instalación incorrecta. Es la responsabilidad del propietario
garantizar que este aparato cumpla con todos los códigos de plomería locales. Por favor, consulte nuestros Términos y
Condiciones que se encuentran en este folleto para información adicional.
Table of Contents/Contenido:
Page 2: Product Specifications/Especificaciones de Producto
Page 3: Parts Breakdown/Desglosamiento de Partes
Page 4: Installation Instructions/Instrucciones de Instalación
Page 6: Cleaning & Care/Cuidado y Limpieza
Page 7: Warranty/Garantía
Page 8: Terms and Conditions/Términos y Condiciones
