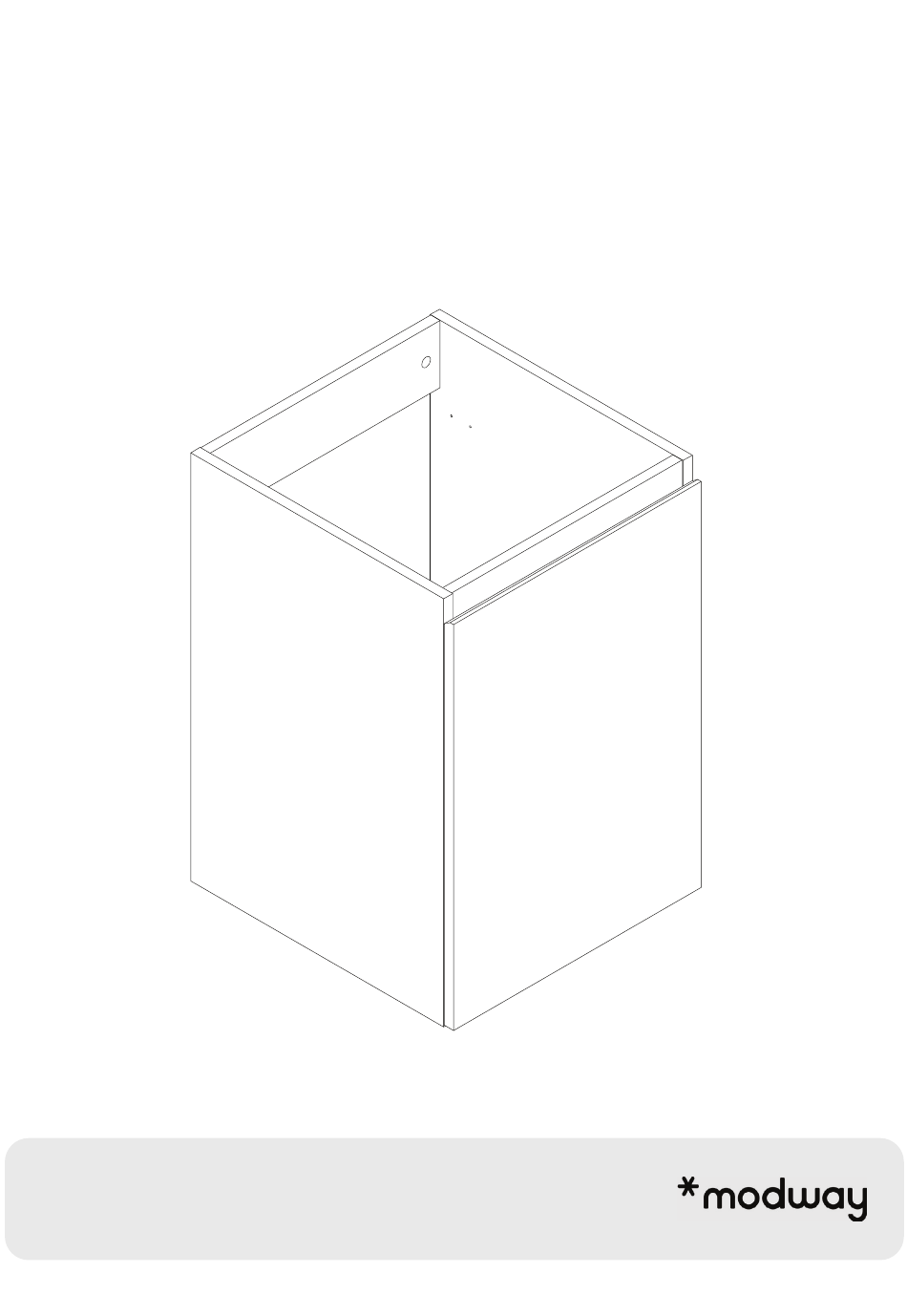

- Page 1 A S S E M B LY I N S T R U C T I O N S EEI−5556 V1.05.20.21 Questions? Contact us! 609.256.9000 • cs@modway.com www.modway.com PAGE 1 OF 10 780−168MD1−0...
-
Page 2: What You Need
Screw 4 x 28mm + Other Wall-Mounting Hardware Shelf Support Rubber Pad Screw 4 x 14mm Missing parts or hardware? Need assistance? Contact us before returning your item. We're here to help! 609.256.9000 • cs@modway.com PAGE 2 OF 10 780−168MD2−0... - Page 3 Wood Dowel M8 x 25mm Back Panel 1 Front Support Cam Bolt Ø6 x 24mm Left Side Panel Right Side Panel Cam Lock Ø15 Left Side Panel Bottom Panel Back Panel 1 Back Panel 2 Front Support PAGE 3 OF 10 780−168MD3−0...
- Page 4 Cam Lock Ø15 Right Side Panel Bottom Panel Back Panel 1 Back Panel 2 Front Support Shelf Support Left Side Panel Right Side Panel Screw #9 x 38mm Shelf Panel Base Panel PAGE 4 OF 10 780−168MD4−0...
- Page 5 Shelf Panel Bracket/L-Hanger Bracket/R-Hanger Screw 4 x 28mm Left Side Panel Right Side Panel PAGE 5 OF 10 780−168MD5−0...
- Page 6 Wall Bracket Installation Guide WALL WALL 9.1 Use a drill to make all pilot holes. 9.2 Insert a Drywall Anchor Measurement Guide into each of the nine holes. All units are in millimeters. WALL BRACKETS WALL 9.3 Install bracket with 3 screws. 9.4 Ensure your bracket measurements are correct Repeat with other brackets.
- Page 7 NOTE: Mounting hardware and tools are not included. We suggest professional installation. Hole = Ø PAGE 7 OF 10 780−168MD7−0...
- Page 8 Screw 4 x 14mm Door Hinge Sold separetly Screw 4 x 14mm Rubber Pad Adjust the hinges, if required. Adjust laterally Adjust height Adjust depth PAGE 8 OF 10 780−168MD8−0...
- Page 9 Your sink basin comes complete with a silver overfl ow ring. If you'd like to remove this overfl ow ring, you can do so by hand. Missing parts or hardware? Need assistance? Contact us before returning your item. We're here to help! 609.256.9000 • cs@modway.com PAGE 9 OF 10 780−168MD9−0...
- Page 10 Clean using a non-abrasive cloth and a mild cleaner. Never use harsh chemicals, as they could damage the fi nish or integrity of the item. CONNECT WITH US! Tag us @modway_furniture and #modway for a chance to be featured. PAGE 10 OF 10 780−168MDA−0...
