Introduction; Features; Dimension (In Mm) - FETtec OSD Board Manual

Introduction

Thank you for purchasing the FETtec OSD Board which is FETtec Alpha firmware and KISS
firmware compatible
Hardware compatible: FETtec AIO 35A-N, FETtec FC F7, FETtec FC G4-N, KISS FC

Features

•
Graphic OSD (STM32)
•
Full KISS Tuning
◦ Filter (PIDs, Rates, Settings)
◦ LED control (RGB LED, Racewire)
◦ VTX
◦ Live data graphs (Voltage, motor rpm, current, motor temp, gyro values, link quality)
◦ KISS GPS support + live map
◦ Custom graphic pilot logo
◦ Stick overlay
◦ Custom layout
Connection via solder pads or JST 6 pin plug (FETtec FC and KISS FC compatible) + video
connection
The FETtec OSD Board works with KISS/FETtec FC firmware version 1.3RC45Y or later
Or the FETtec OSD firmware
Please use the same respective firmware for FC and OSD (KISS or FETtec Alpha),
otherwise it will not work

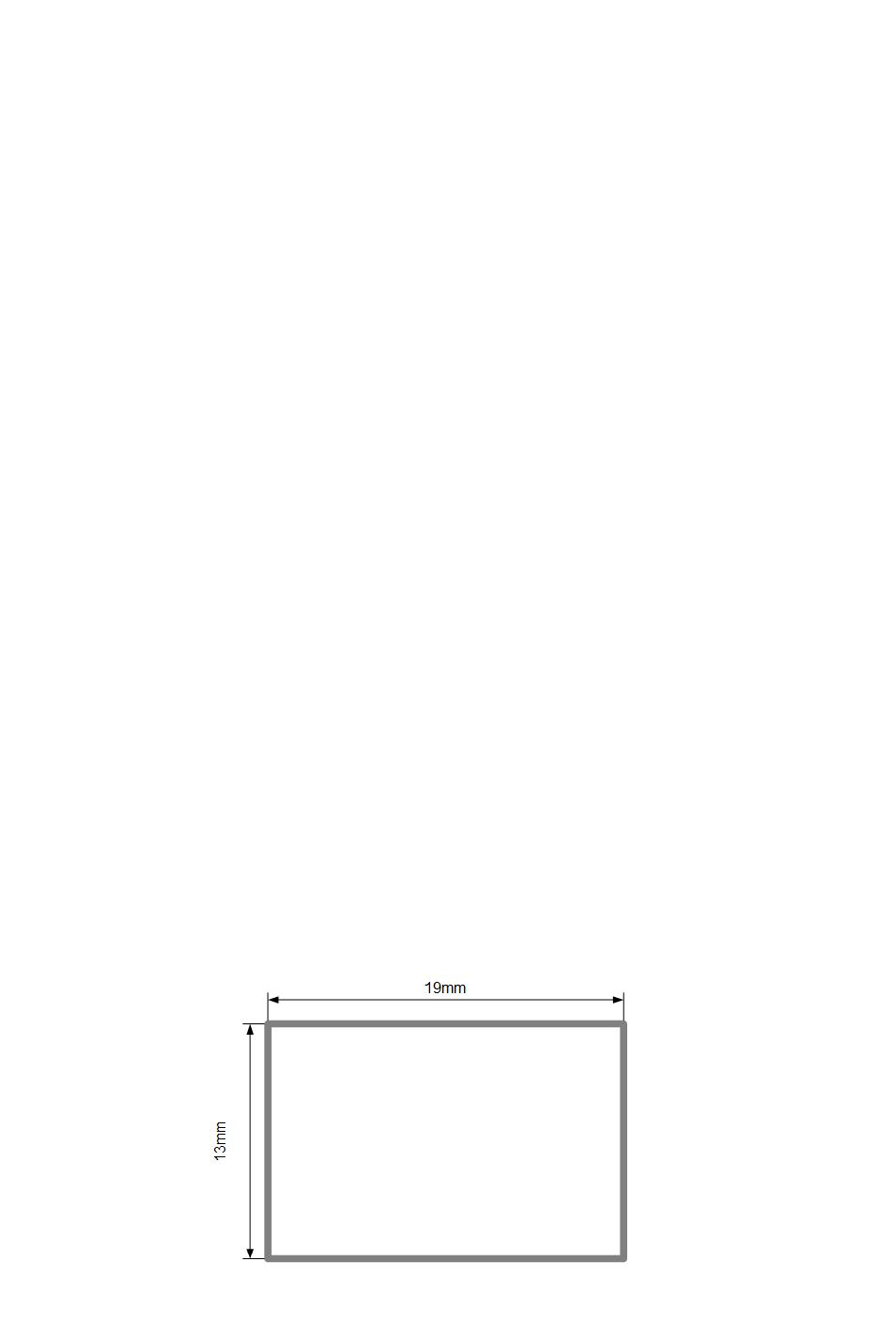

Dimension (in mm)
