Dimension (in mm) ........................3 Connection Diagram ........................4 Layout ............................4 Connection ........................... 5 To FETtec FC ........................... 5 To FETtec AIO 35A - N ......................6 VTX ............................7 Camera ............................. 7 OSD Firmware ..........................8 KISS FW on FC ........................8 FETtec ALPHA FC firmware on FC ..................
◦ Custom graphic pilot logo ◦ Stick overlay ◦ Custom layout Connection via solder pads or JST 6 pin plug (FETtec FC and KISS FC compatible) + video connection The FETtec OSD Board works with KISS/FETtec FC firmware version 1.3RC45Y or later...

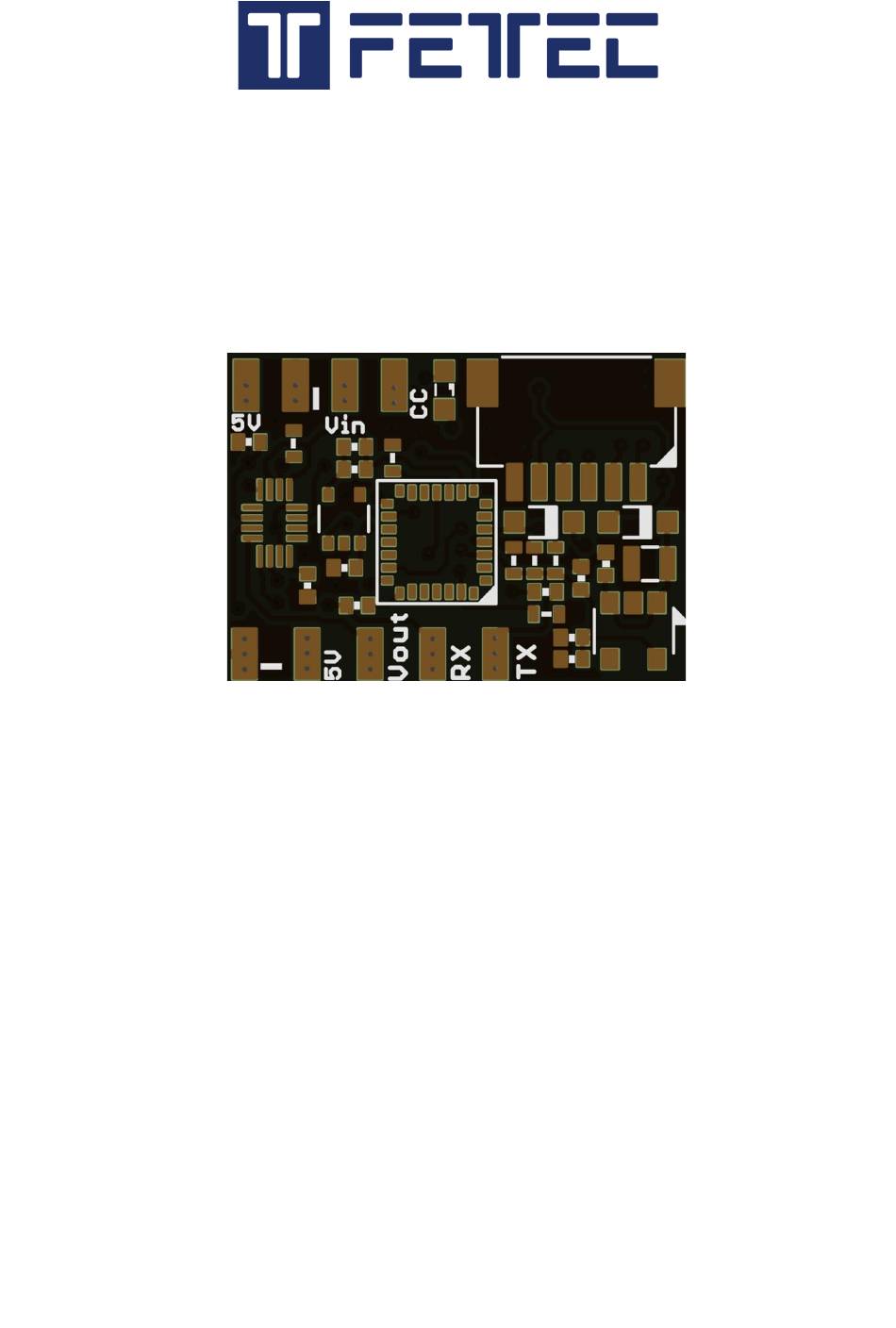

Connection Diagram Layout GND – Reference Signal Ground 5V from FC Vin + Vout – Video in and out n c – not connected JST-SH-1mm 6-pin connection Page 4...
Connection Hardware compatible: FETtec AIO 35A-N, FETtec FC F7, FETtec FC G4-N, KISS FC To FETtec FC Simple plug connection via 6 Pin cable (included) Can be connected to any FETtec FC / KISS FC serial port OSD only works with connected camera!
As the FETtec AIO 35A -N doesn’t have an onboard OSD you can simply connect the FETtec OSD Board to get the same performance. You can use the 4 pin cable which comes with the FETtec FC G4 or any other JST-SH-1mm 4- pin cable and connect.
Please update the FETtec OSD Board before your first flight ! 1. Open FETtec ESC Configurator 2. Connect the FETtec OSD Board to FC and via USB to FETtec ESC Configurator 3. choose KISS FC passthrough and press connect 4. latest firmware is remote available to flash FETtec ALPHA FC firmware on FC 1.
Settings Through the goggles All settings are to set directly in the OSD To get in the menu move the sticks in the shown direction at the start: Throttle 50%, then move Yaw left, Pitch up Mode 1: Mode 2: In the menu: Page 9...
OSD settings: Issues in the picture 1. OSD SYNC → AUTO SYNC 2. in case of unsharp lines play with LEFT/WITH values try to avoid WITH values above 400 3. make a PAL/NTSC layout reset Move elements in the OSD menu Choose LAYOUT →...
In the ALPHA Configurator In the settings of the ALPHA Configurator you can choose “OSD Setup” All parts of the OSD can be enabled/disabled and selected in their position. Please read the explanations in the area below to be sure what the changes do. All setting can easily be set and checked in the overview “OSD”...
Page 12
Here you can get an overview of how the selected settings look in the OSD Page 12...
