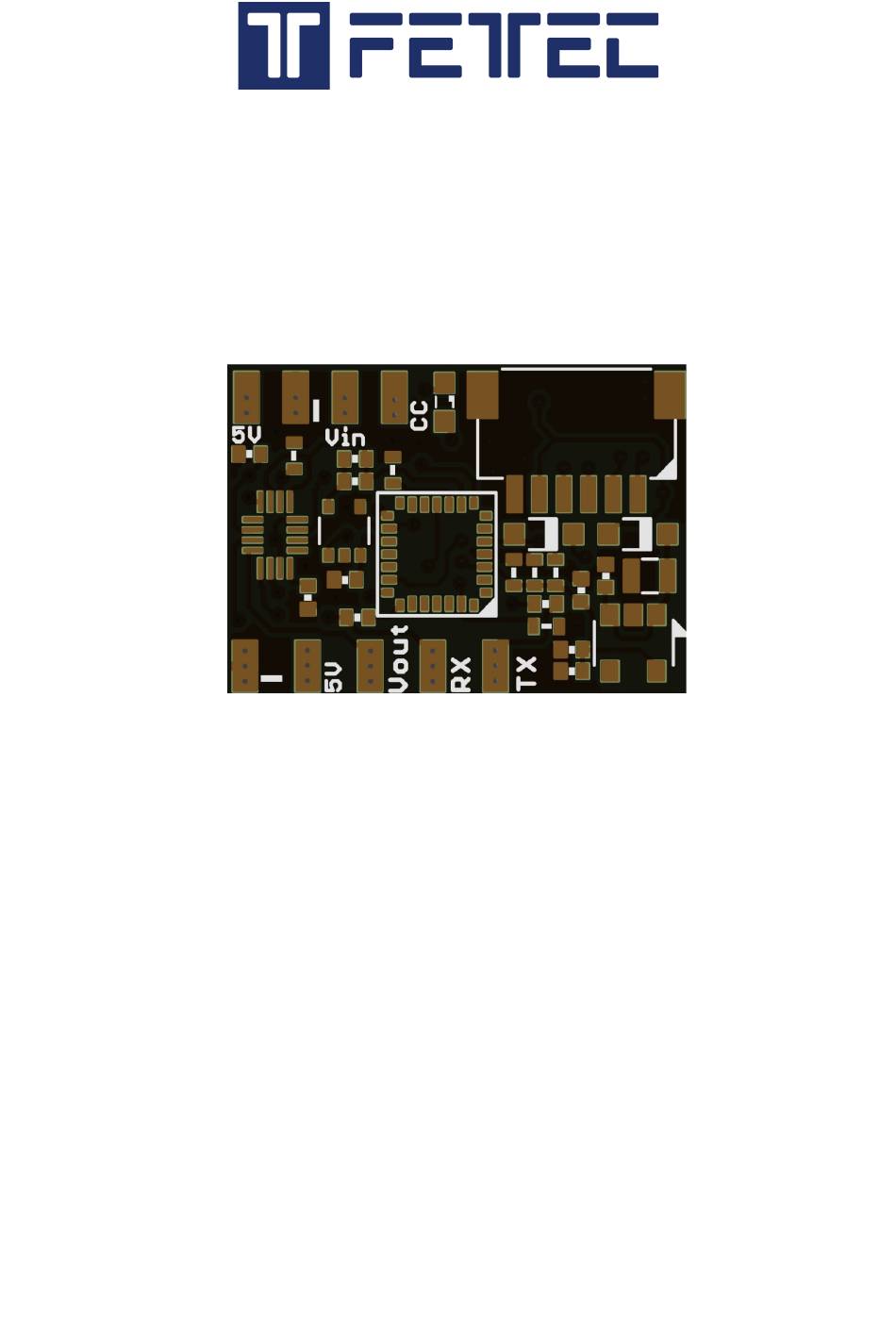

- Page 1 FETtec OSD Board Manual Page 1...
-
Page 2: Table Of Contents
Table of Contents Introduction.............................3 Features............................3 Connection Diagram........................4 Layout............................4 Dimension (in mm)........................4 Basic Setup.............................5 6 Pin connection (cable included)....................5 VTX connection..........................6 Camera connection........................6 OSD Firmware ..........................7 Settings............................7 Issues in the picture........................9 Move elements in the OSD menu....................9 Page 2... -
Page 3: Introduction
•KISS GPS support + live map •Custom graphic pilot logo •Stick overlay •Custom layout Connection via Solder pads or JST 6 pin plug (FETtec FC and KISS FC compatible) + video connection KISS FC compatible • The FETtec OSD works with KISS/FETtec FC firmware version 1.3RC45Y or later ! -
Page 4: Connection Diagram
Connection Diagram Layout GND – Reference Signal Ground 5V from FC Vin + Vout – Video in and out n c – not connected JST-SH-1mm 6-pin connection Dimension (in mm) Page 4... -
Page 5: Basic Setup
6 Pin connection (cable included) (JST-SH-1mm 6-pin) This can be connected via straight 6 pin adapter to any FETtec FC / KISS FC serial port OSD only works with connected camera! FETtec OSD Board to FETtec KISS FC RX 1... -
Page 6: Vtx Connection
VTX connection Video out Camera connection Cam Video out Page 6... -
Page 7: Osd Firmware
OSD Firmware Please update the FETtec OSD Board before your first flight ! To update the FETtec OSD connect to FETtec Configurator and flash via FC passthrough latest firmware. Settings All settings are to set directly in the OSD To get in the menu move the sticks in the shown direction at the start:... - Page 8 In the menu: OSD settings: Page 8...
-
Page 9: Issues In The Picture
Issues in the picture 1. OSD SYNC → AUTO SYNC 2. in case of unsharp lines play with LEFT/WITH values try to avoid WITH values above 400 3. make a PAL/NTSC layout reset Move elements in the OSD menu Choose LAYOUT → SET POSITIONS in the SETTINGS. Now the elements are movable along the grid.
