Summary of Contents for Leviton AESS5
-

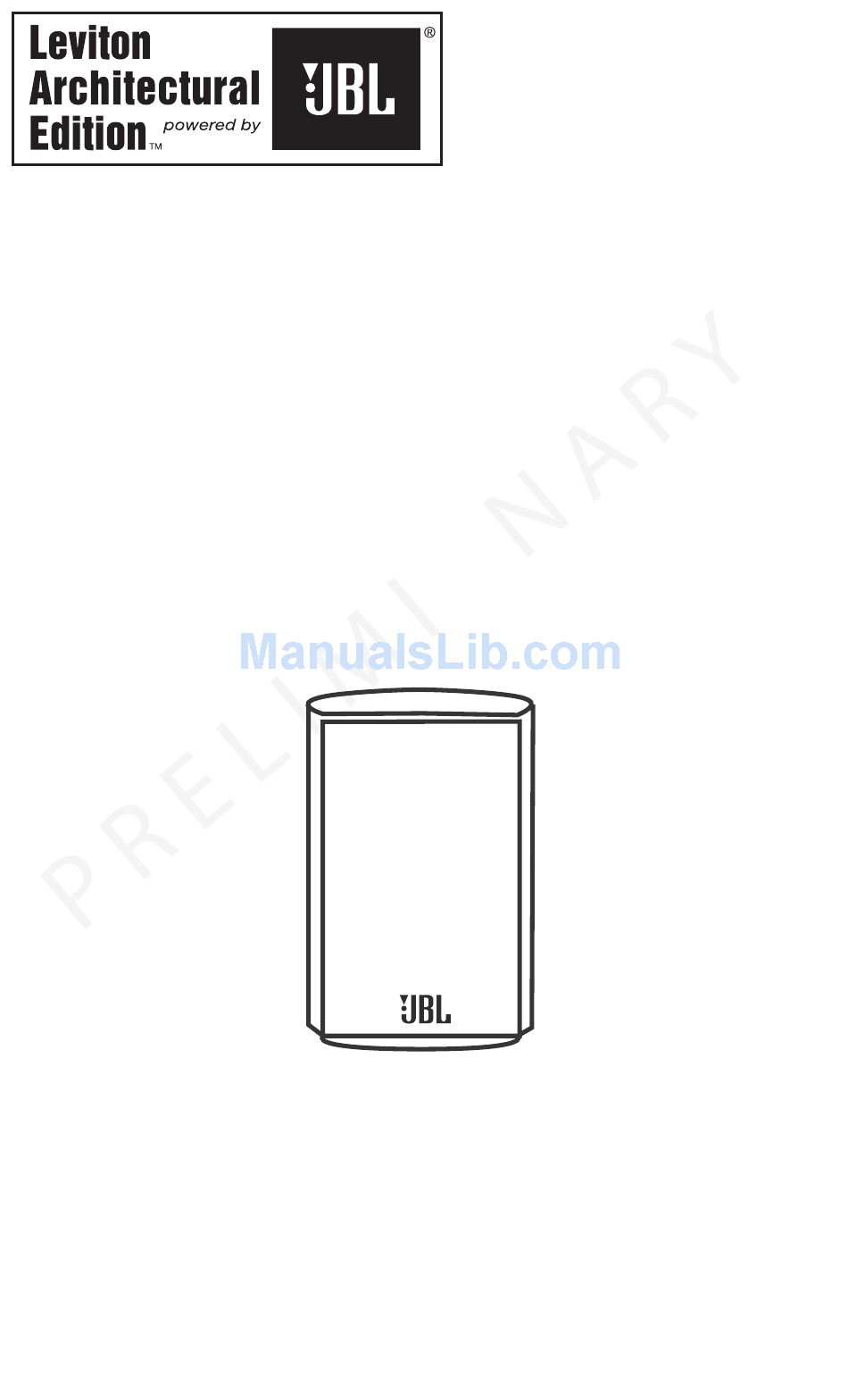

Page 1: User Guide
Satellite Speaker Cat. No. AESS5 USER GUIDE DI-000-AESS5-02A-X0... -
Page 2: Parts Included
JBL. Please take a moment to register your product on our Web site at www.leviton.com. It enables us to keep you posted on our latest advancements, and helps us to better understand our customers and build products that meet their needs and expectations. -
Page 3: Speaker Placement
TV without worrying about the magnetic field distorting the picture. Center Channel For the center channel, place the speaker directly on top of, or below, your television. Use the included brackets for wall mounting. Surround Channels For left and right surround channels, place one speaker on the left and another on the right, to the side of or slightly behind the listening area. -
Page 4: Speaker Connections
It is important to connect both speakers identically: (+) on the speaker to (+) on the amplifier and (–) on the speaker to (–) on the amplifier. Wiring “out of phase” results in thin sound, weak bass and a poor stereo image. -
Page 5: Installation
ELECTRICAL INSPECTOR FOR CORRECT WIRE RATINGS. WALL MOUNTING The Cat. No. AESS5 satellite speaker is to be wall-mounted with the adjustable wall-mounting brackets included, or placed on a shelf. This product is not intended for ceiling mounting. Note that is the... - Page 6 8. Hand tighten the molded nut (2) while positioning the speaker for the intended orientation. 9. Once the orientation of the speaker is finalized, use the metal bar (5) in one of the holes on the molded nut (2) and tighten securely.
-
Page 7: Operation
® ensure that all Cat. No. AESS5 speakers are set to “Small”. When using the Cat. No. AESS5 in a Dolby Pro Logic* home theater system, ensure that the receiver's center channel mode is set to “Normal”. -
Page 8: Troubleshooting
IF THERE IS LOW (OR NO) BASS OUTPUT: • Make sure the connections to the left and right “Speaker Inputs” have the correct polarity (+ and –). • Consider adding a powered subwoofer to your system. - Page 9 NOTES...
- Page 10 NOTES...
- Page 11 NOTES...
-
Page 12: Specifications
2-1/2" magnetically shielded Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for five years from the purchase date. - Page 13 This page is NOT to be printed in the booklet 11.0" LEVITON INSTRUCTION SHEET/MANUAL 8.5" SPECIFICATIONS DI-000-AESS5-02A-X0 Black Helvetica OVERALL SIZE 50 lb. offset Paper size: 5.5" 11" x 8.5" (Printer Spread) 12 Pages Overall size: 5.5" x 8.5" (booklet - saddle stitch)
