Summary of Contents for Leviton AEN24
-

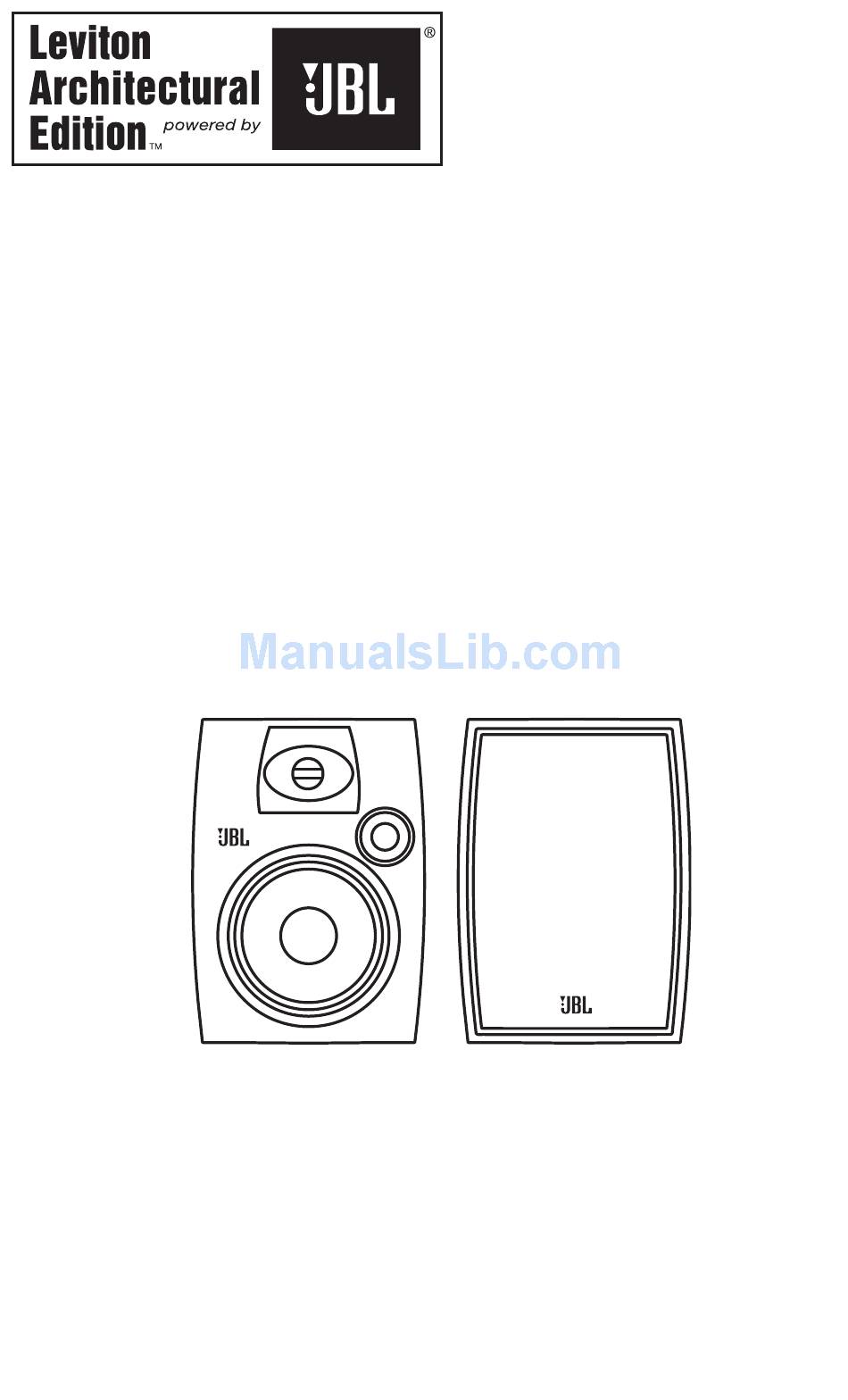

Page 1: User Guide
Outdoor Speaker Cat. No. AEN24 USER GUIDE AEN24 Outdoor Speaker DI-000-AEN24-02A... -
Page 2: Parts Included
JBL. Please take a moment to register your product on our Web site at www.leviton.com. It enables us to keep you posted on our latest advancements, and helps us to better understand our customers and build products that meet their needs and expectations. -
Page 3: Speaker Placement
(refer to Placement Figure 1B below). NOTE: While the Cat. No. AEN24 is weather-resistant, it is not designed to be immersed in water. Be selective in your outdoor placement. Placing these speakers under roof eaves or a patio awning will offer some shelter and help contribute to years of trouble-free performance. -
Page 4: Speaker Connections
It is important to connect both speakers identically: (+) on the speaker to (+) on the amplifier and (–) on the speaker to (–) on the amplifier. Wiring “out of phase” results in thin sound, weak bass and a poor stereo image. -
Page 5: Installation
ELECTRICAL INSPECTOR FOR CORRECT WIRE RATINGS. WALL MOUNTING The Cat. No. AEN24 loudspeaker is to be wall-mounted with the adjustable wall-mounting brackets included, or placed on a shelf. This product is not intended for ceiling mounting. Note that is the... - Page 6 4. Screw on the ball/shaft (3) into the threaded insert (7) on the back of the speaker cabinet (8) until it is fully seated against the bottom of the insert. 5. Tighten the “knurled” nut (1) using a crescent wrench until it is firmly seated against the back of the speaker and has fully locked the ball/shaft (3) and the speaker cabinet together.
-
Page 7: Troubleshooting
IF THERE IS LOW (OR NO) BASS OUTPUT: • Make sure the connections to the left and right “Speaker Inputs” have the correct polarity (+ and –). • Consider adding a powered subwoofer to your system. -
Page 8: Specifications
3,000Hz Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for five years from the purchase date.
