Leviton JBL AEI65 Product Data

PRODUCT DATA

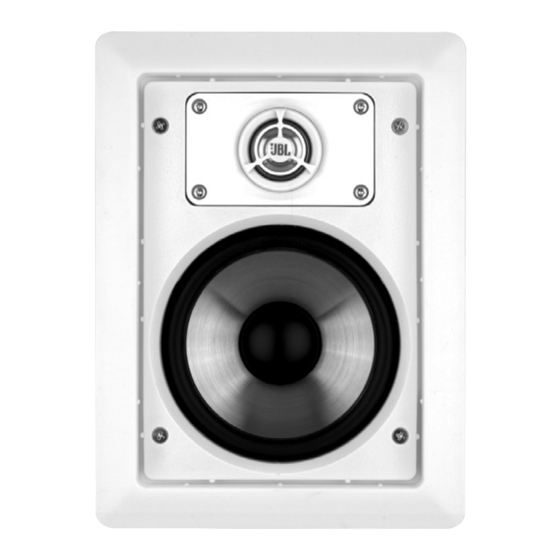

AEI65 6.5-inch Two-Way In-Wall
Loudspeaker Powered by JBL
Leviton Architectural Edition
APPLICATION
The AEI65 and AEI80 In-Wall Speakers are an
excellent choice for front (left and right) home
theater installations as well as the best choice
for surround-sound use. Their Elliptical Oblate
Spheroidal™ (EOS™) Waveguide, based on JBL's
renowned line of professional studio monitors,
improves high-frequency sound dispersion,
allowing speakers to generate a sharply focused
front sound field for precise soundtrack imaging.
FEATURES
• JBL titanium-laminate drivers (AEI65/80) or pure
titanium tweeter and polymer-coated aluminum
woofers (AEI55) maintain musical accuracy and
clarity even at frequency extremes
• Straight-line Signal Path™ (SSP™) crossover
network for minimal signal distortion
• Long-excursion woofers with butyl-rubber
half-round surrounds and extended pole-piece
magnetic structures for maximum bass impact
and dynamic range
• Low-diffraction, swivel-tweeter mounting
system for optimum stereo imaging
ORDERING INFORMATION
DESCRIPTION
Pair of 6.5-Inch (170 mm) Two-Way In-Wall Loudspeakers, 100 watts, 8 ohms
6.5" Pre-Construction Speaker Kit for in-wall installations
Leviton Manufacturing Co., Inc. Global Headquarters
201 N. Service Rd. Melville, NY 11747-3138 Tech Line: 1-800-824-3005 Fax: 1-800-832-9538
Leviton Manufacturing Co., Inc. Energy Management, Controls and Automation.
4330 Michoud Blvd., New Orleans, LA, 70129 Tel: 1-504-736-9810 Fax: 1-504-253-2954
Visit our Website at: www.leviton.com/emca
©2016 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.
®
• Heavy-duty push-type input terminals for
long-term connection integrity
• Integrated dog-ear mounting brackets (optional
rough-in kits available for pre-construction
installs in new homes)
• Acoustically transparent paintable baffles
and grilles
PHYSICAL SPECIFICATION
• AEI65 6.5-inch Two-Way In-Wall Loudspeaker
• Driver Complement: 1" (25 mm) titanium-
laminate dome tweeter; 6.5" (170 mm) titanium-
laminate woofer
• Frequency Response (-10dB): 38 Hz-20 kHz
• Sensitivity (2.83V/1m): 88 dB
• Power Handling: 80 Watts
• Impedance: Nominal 8 Ohms
• Dimensions: 11" H x 8.5" H x 3.87" H
• (279 mm x 226 mm x 98 mm)
• Mounting Cutout Size: 7.13" x 9.69"
• (181.1 mm x 246.1 mm)
• Weight: 5 lb/2.3 kg per speaker
• Sold in pairs
COUNTRY OF ORIGIN
China
WARRANTY INFORMATION
For a copy of Leviton product warranties,
visit www.leviton.com/warranty.
®
CAT. NO.
AEI65
AEPI6-KIT
