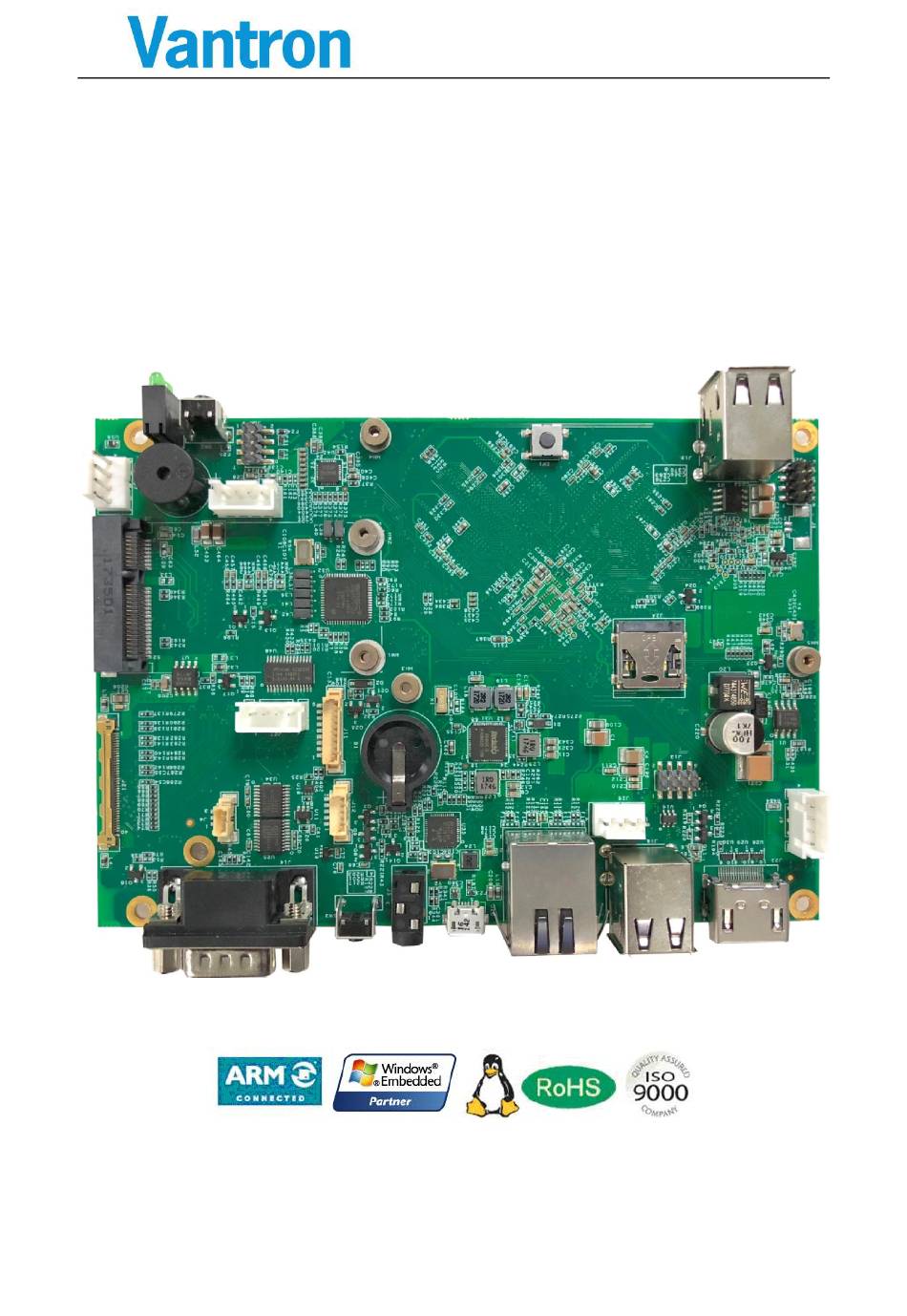

- Page 1 SBC-RK35M Boards User’s Manual SBC-RK35M User’s Manual (Hardware) Chengdu Vantron Technology Ltd. Co.
- Page 2 SBC-RK35M Boards User’s Manual Revision record Date Version Change Description 2017-12-25 Initial Version 2018-03-23 Revise All rights reserved Page 2, Total 18...
-
Page 3: Table Of Contents
SBC-RK35M Boards User’s Manual Table of Contents ............................4 OPYRIGHT OTICE ............................... 4 OTES ..............................4 TATEMENT ..............................4 ISCLAIMER ....................... 4 IMITATION OF IABILITY WARRANTY ..........................5 AFETY NSTRUCTIONS ............................. 5 RECAUTIONS ................5 AFETY NSTRUCTIONS FOR OWER ABLES AND CCESSORIES OVER VIEW ..............................7... -
Page 4: Copyright Notice
Vantron reserves all rights of this manual, including the right to change the content, form, product features, and specifications contained herein at any time without prior notice. The latest version of this manual is at www.vantrontech.com.cn. -
Page 5: Safety Instructions
SBC-RK35M Boards User’s Manual For direct or indirect damage to this device or other devices of Vantron caused by failure of conforming to this manual or the safety instructions on device label, Vantron assumes neither warranty nor legal liability even if the device is still under warranty. - Page 6 Clean with a damp cloth. Do not try cleaning exposed electronic components unless with a dust collector. Support for special fault: Power off and contact technical support personnel of Vantron in case of the following faults: The device is damaged.
-
Page 7: Over View
2 Over View 2.1 Introduction Vantron offers both ARM and ATOM based Single Boards Computer (SBC) platforms including Cirrus Logic EP9315, Marvell PXA255, PXA270, and PXA320, Intel IXP465, FreeScale iMX31, Imx53，iMX6, Samsung S3C6410, TI OMAP35xx CortexA8 series, and Intel ATOM Z510 and Z530 processor boards. -
Page 8: Sbc-Rk35M Hardware Instructions
SBC-RK35M Boards User’s Manual 3 SBC-RK35M Hardware Instructions 3.1 Board Diagram All rights reserved Page 8, Total 18... -
Page 9: Board Assembly Drawing
SBC-RK35M Boards User’s Manual 3.2 Board Assembly Drawing All rights reserved Page 9, Total 18... -
Page 10: Board Structure
SBC-RK35M Boards User’s Manual 3.3 Board Structure All rights reserved Page 10, Total 18... -
Page 11: Hardware Description
The interface description ought to consult the connector sketch map. And attach necessary message such as picture. Indicate the figure, PIN1 and match jack 4.1 Identify connector This section describe how to find the position of connector and PIN1 on SBC-RK35M single computer board. 4.1.1 Position of connector As Figure 3.2 show the main part and connector position of SBC-RK35M. -
Page 12: J2, Mini-Pcie Connector
SBC-RK35M Boards User’s Manual Not connect Ground active low signal Positive of difference signal negative of difference signal Signal type: Input Output input/output Power or ground Analog Open drain 4.3.1 J2, MINI-PCIE connector Mini,52P,0.8mm,6.8mmH,WDT,SMT,RoHS (TYCO: 2041262-1) Support kinds of 3G/4G module with USB interface 4.3.2 J17, SIM card slot... -
Page 13: J12,Rs232/422 Port
SBC-RK35M Boards User’s Manual 4.3.9 J12,RS232/422 port Box,1x5x1.25,Vert (MOLEX: 53398-0571) Name Type Description UART4_CTS_N/RS422TX- UART4_CTS_N/RS422TX- UART4_TXD/RS422TX+ UART4_TXD/RS422TX+ UART4_RXD/RS422RX+ UART4_RXD/RS422RX+ UART4_RTS_N/RS422RX- UART4_RTS_N/RS422RX- Ground 4.3.10 J13,USB HUB ports 2x4,2x2mm,2A,4.7mmH,M,Vert(NSXD: MXD2-4PBXX1X ) 4.3.11 J14, Speaker port Support 2x2.8W/4Ω speaker 1x2,2.5mm,3A,7mmH,M,Vert,-25~85℃,THR,RoHS (NSXD: S2501WV-2P) Name... - Page 14 SBC-RK35M Boards User’s Manual LCD_VDD LCD digital power supply +3.0V (OPT +5V) SEL68 LVDS 6/8bit select EDP_TX0N/LVDS_A_D0- EDP/LVDSA data EDP_TX0P/LVDS_A_D0+ EDP/LVDSA data Ground EDP_TX1N/LVDS_A_D1- EDP/LVDSA data EDP_TX1P/LVDS_A_D1+ EDP/LVDSA data Ground EDP_TX2N/LVDS_A_D2- EDP/LVDSA data EDP_TX2P/LVDS_A_D2+ EDP/LVDSA data Ground EDP_TX3N/LVDS_A_CLK- EDP data/LVDSA clock...
-
Page 15: J23, Hdmi Port
SBC-RK35M Boards User’s Manual LCD_BLK LCD backlight power supply +12V (OPT +5V) LCD_BLK LCD backlight power supply +12V (OPT +5V) LCD_BLK LCD backlight power supply +12V (OPT +5V) 4.3.17 J23, HDMI Port Type A,NoFLN,F,RA,-20~85℃,SMT,RoHS (MOLEX: 47151-1001) 4.3.18 J24, Micro SD slot Micro,Hinge,NoWP,WDT,SMT,RoHS (PROCONN: MSHN08-A0-1013) 4.3.19 J25, expand Aduio port... -
Page 16: Hardware Operation Notes
SBC-RK35M Boards User’s Manual 4.4 Hardware Operation Notes Power prepare: Please confirm the power input is 12V. And the reference current is 1A. Make sure the power input positive is not reversed. Environment: For the assembled or debug platform, be sure there hasn’t any risk of circuit shortness for the board. -
Page 17: Tips
Vantron reserves the right to make necessary changes to this manual without prior notice. No part of this manual may be reprinted or publicly released in forms of photocopy, tape, broadcast, e-document, etc. - Page 18 SBC-RK35M Boards User’s Manual US Office: Vantron Technology, Inc. China Office: Chengdu Vantron Technology, Ltd Address: Address: 440 Boulder Court, Address: 6rd floor, 1st building, No.9, 3rd WuKe East Suite 300 Pleasanton, CA 94566 Street, WuHou District, Tel: 916-202-7042 Chengdu, P.R. China 610045 Email: sales@vantrontech.com...
