Summary of Contents for Vantron VT-SBC35-APL

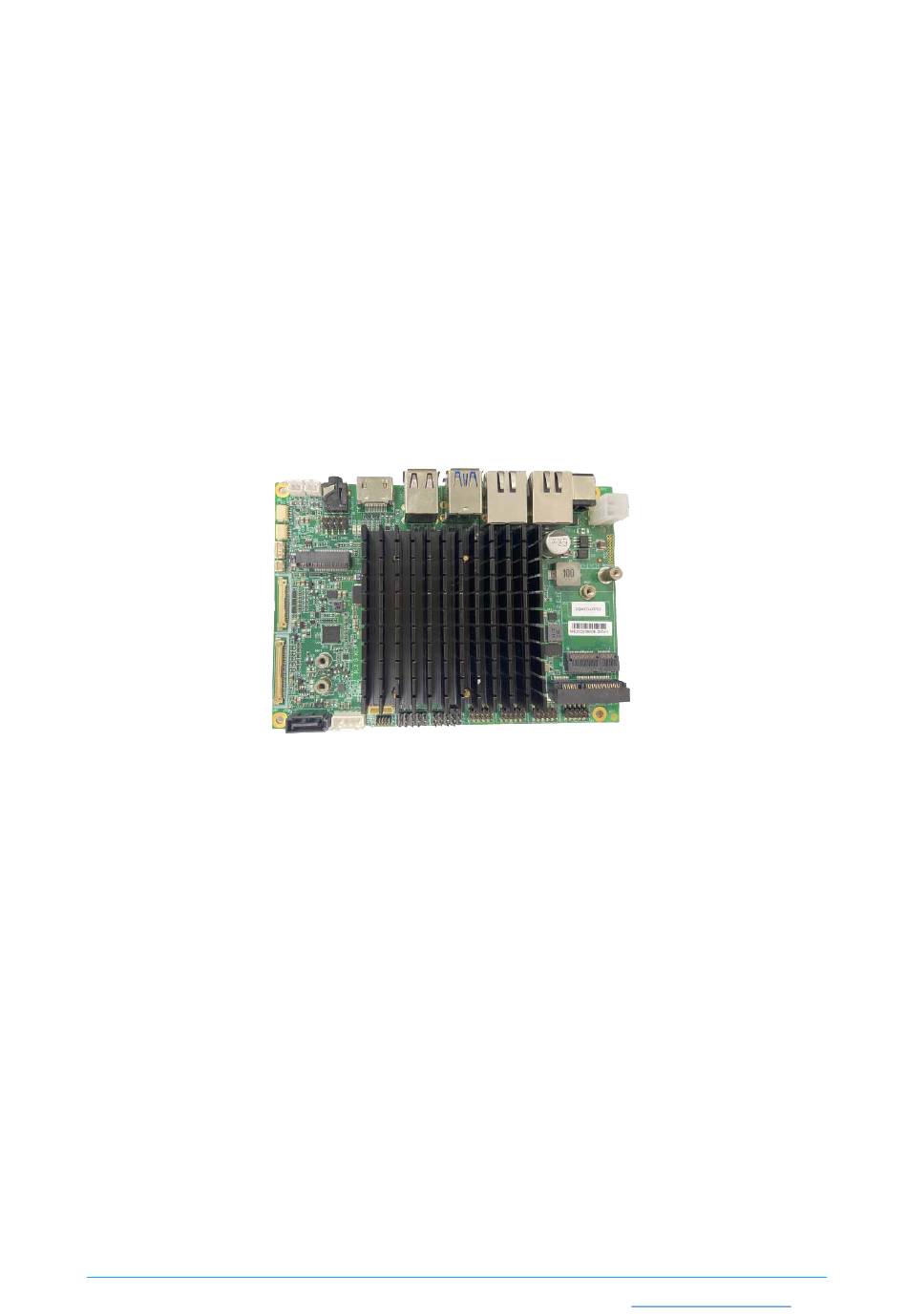

- Page 1 Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions VT-SBC35-APL Industrial Motherboard User Manual Version: 1.0 © Chengdu Vantron Technology Co., Ltd. All rights reserved. VT-SBC35-APL | User Manual www.vantrontech.com...
- Page 2 Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions Revision History Version Description Date First release May 11, 2022 VT-SBC35-APL | User Manual www.vantrontech.com...
-
Page 3: Table Of Contents
2.4.17 J19 Speaker_L connector (17) ..................25 2.4.18 J16 SATA connector (18) ....................25 2.4.19 J17 SATA power connector (19) ..................25 2.4.20 J40 F_panel connector (20) ..................... 26 2.4.21 J57 SMBUS (21) ....................... 27 VT-SBC35-APL | User Manual www.vantrontech.com... - Page 4 Install Windows 10 System ..................... 43 3.7.1 Prerequisites ........................43 3.7.2 Make a Bootable USB Drive for Windows 10 ..............43 3.7.3 Install Windows 10 ......................44 CHAPTER 4 DISPOSAL AND WARRANTY ..................45 Disposal .......................... 46 Warranty ........................47 VT-SBC35-APL | User Manual www.vantrontech.com...
-
Page 5: Foreword
Under no circumstances shall any part of this user manual be copied, reproduced, translated, or sold. This manual is not intended to be altered or used for other purposes unless otherwise permitted in writing by Vantron. Vantron reserves the right of all publicly released copies of this manual. - Page 6 US Office: Vantron Technology, Inc. Address: 48434 Milmont Drive, Fremont, CA 94538 Tel: (650) 422-3128 Email: sales@vantrontech.com China Office: Chengdu Vantron Technology Co., Ltd. Address: 6th Floor, 1st Building, No.9, 3rd WuKe East Street, WuHou District, Chengdu, P.R. China 610045 Tel: 86-28-8512-3930/3931, 86-28-8515-7572/6320 Email: sales@vantrontech.com.cn...
- Page 7 The use or placement of the operation tools shall comply with the code of practice of such tools to avoid short circuit of the Product. • Cut off the power before inspection of the Product to avoid human injury or product damage. VT-SBC35-APL | User Manual www.vantrontech.com...
- Page 8 Clean with a damp cloth • Do not try to clean exposed electronic components unless with a dust collector • Power off and contact Vantron technical support engineer in case of the following faults: • The Product is damaged •...
-
Page 9: Chapter 1 Introduction
Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 1 INTRODUCTION VT-SBC35-APL | User Manual www.vantrontech.com... -
Page 10: Product Overview

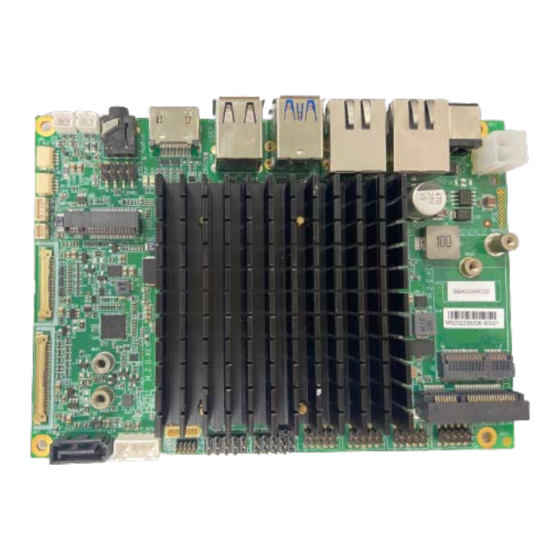

World-leading provider of embedded/IoT products and solutions 1.1 Product Overview VT-SBC35-APL single board computer features a thinner and smaller form factor that is easy to integrate. It is powered by the high-performance Intel® AtomTM processor with large storage capacity. It supports multi-channel display outputs and high-definition video encoding and decoding technology to provide outstanding visual experience. -
Page 11: Block Diagram
Msata/Mpcie E3940 1.8 GHz TDP:6W Sodimm DDR DD R3L PKG:BGA 1296 EMMC 64G E MM C5 1 (optional N3350/2 .4GHz Dual core;N3450/2 .2GHz Quad core; N4200/ 2.4GHz Quad core) (Industrial E3930 2C/1.8 GHz;E3950 4C/2G Hz) VT-SBC35-APL | User Manual www.vantrontech.com... -
Page 12: Specifications
Power Consumption 10W+ Operating system Windows 10, Linux Software Available Dimensions 146mm x 102mm Mechanical Cooling mode Fanless, heat sink Operating: -20℃~+60℃ Temperature Storage: -40℃~+85℃ Environment Humidity RH 5%-95% (Non-condensing) Condition Certifications FCC, IC, RoHS VT-SBC35-APL | User Manual www.vantrontech.com... -
Page 13: Operating System
It should be pointed out that power consumption is largely determined by the RAM, storage capacity, and other configurations of the Board. 1.8 Environmental Specifications VT-SBC35-APL works at a temperature ranging from -20℃ to +60℃ and at relative humidity of 5%-95% for non-condensing purpose. VT-SBC35-APL | User Manual... -
Page 14: Chapter 2 Hardware Description
Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 2 HARDWARE DESCRIPTION VT-SBC35-APL | User Manual www.vantrontech.com... -
Page 15: Board Layout
2 x RS232/ 2 x F_USB 2 x RS232 (19) SATA Power 422/485 (27) Nano SIM (26) DDR3L SO-DIMM socket 2.2 Memory VT-SBC35-APL is equipped with a DDR3L SO-DIMM socket that supports up to 8GB RAM. VT-SBC35-APL | User Manual www.vantrontech.com... -
Page 16: Identification Of Pin 1
2.4.1 J2 Power connector (1) Specification: 2 x 2, 4.2mm, 12.8mm (H), Male, Vertical, White, WDT, THR, RoHS TYCO: 1734385-6 Pin 2 Pin 1 Pinout description: Name Type Description Ground Ground +VDC DC-IN POWER + +VDC DC-IN POWER + VT-SBC35-APL | User Manual www.vantrontech.com... -
Page 17: J54 Power Jack (2)
Name Type Description L_MDI_0P Ethernet MDI0+ Signal L_MDI_0N Ethernet MDI0- Signal L_MDI_1P Ethernet MDI1+ Signal L_MDI_1N Ethernet MDI1- Signal L_MDI_2P Ethernet MDI2+ Signal L_MDI_2N Ethernet MDI2- Signal L_MDI_3P Ethernet MDI3+ Signal L_MDI_3N Ethernet MDI3- Signal VT-SBC35-APL | User Manual www.vantrontech.com... -
Page 18: J10 Lvds Connector (4)
| Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions 2.4.4 J10 LVDS connector (4) VT-SBC35-APL implements an LVDS connector, supporting resolution of 3840 x 2160 @30Hz. Specification: 1 x 40, 0.5mm, 0.5A, 1.05mm (H), Vertical, WDT, SMT, RoHS... - Page 19 LCD POWER +5V VDD_LCD LCD POWER +5V SEL 6/8 SELECT 6 OR 8 DEPTH LCD_BKLTEN LCD BKL ENABLE LCD_BKLT_PWM LCD BKL PWM Ground Ground Ground VCC_BLK BKL Power+ VCC_BLK BKL Power+ VCC_BLK BKL Power+ VCC_BLK BKL Power+ VT-SBC35-APL | User Manual www.vantrontech.com...
-
Page 20: J9 Hdmi (5)
| Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions 2.4.5 J9 HDMI (5) VT-SBC35-APL implements an HDMI interface, supporting resolution of 3840 x 2160 @30Hz. Specification: Type-A, FLN, Female, Right angle, WDT, SMT, RoHS... -
Page 21: J11 Edp Connector (6)
| Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions 2.4.6 J11 eDP connector (6) VT-SBC35-APL implements an eDP connector, supporting resolution of 96 x 2160 @60Hz. Specification: 1 x 30, 0.5mm, 0.5A, 1.05mm (H), Right angle, WDT, SMT, RoHS STARCONN: 300E30-0010RA-G3... - Page 22 | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions EDP1_BKLT_EN_R BKLT_EN EDP1_BRIGHTNESS_R BRIGHTNESS Ground Ground Ground +VCC_EDP1_BKLT_R LCD POWER +12V +VCC_EDP1_BKLT_R LCD POWER +12V +VCC_EDP1_BKLT_R LCD POWER +12V +VCC_EDP1_BKLT_R LCD POWER +12V VT-SBC35-APL | User Manual www.vantrontech.com...
-
Page 23: J59/J23 Rs232 (7)
Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions 2.4.7 J59/J23 RS232 (7) VT-SBC35-APL implements four serial connectors, including two RS232 connectors and two RS232/RS422/RS485 multiplex connector. COM4 COM3 COM1 COM2... -
Page 24: J20/J21 Rs232/Rs422/Rs485 (8)
DSR1 RS422_R2IN RTS1 RS422_D1OUT CTS1 RS422_R4IN RS422_R5IN +V5_S +5V Power 2.4.9 J39 GPIO (9) VT-SBC35-APL implements 8 GPIOs for external communication or control/collection of external hardware. Pin 2 Pin 1 Pinout description: Name Type Description GPIO_0 3.3V TTL GPIO GPIO_1 3.3V TTL GPIO... -
Page 25: J11 Usb 2.0 Type-A (10)
The pinout description of the interfaces is in line with the pin assignment of standard USB 2.0 Type-A. 2.4.11 U21 USB 3.0 Type-A (11) VT-SBC35-APL also implements two USB 3.0 interfaces. Specification: 3.0, dual-port, Type-A, Female, 17.5mm (H), retention, WDT, THR, RoHS FOXCONN: UEA1112C-8HS1-4F The pinout description of the interfaces is in line with the pin assignment of standard USB 3.0 Type-A. -
Page 26: J55/J56 Usb2.0 Connectors (12)
Pinout description: Name Type Description VCC_USB2.0_2 USB POWER +5V VCC_USB2.0_2 USB POWER +5V USBHUB_3N Reserved USB2.0 Negative USBHUB_2N Reserved USB2.0 Positive USBHUB_3P Reserved USB2.0 Negative USBHUB_2P Reserved USB2.0 Positive Ground Ground VCC_USB2.0_2 USB POWER +5V VT-SBC35-APL | User Manual www.vantrontech.com... -
Page 27: J8 Audio Jack (13)
Specification: 1 x 4, 1mm, 1A, 2.9mm (H), Male, Vertical, THR, RoHS SANJI: CKX-035-334 Pin 1 Pinout description: Name Type Description LINP_AMP2 AMP OUTPUT RINP_AMP2 AMP OUTPUT HP_JD AMP JD INPUT GROUND VT-SBC35-APL | User Manual www.vantrontech.com... -
Page 28: J60 F_Mic (15)
Specification: 1 x 2, 2.00mm, 4A, 6mm (H), Male, Vertical, White, THR, RoHS JST: B2B-PH-K-S (LF) Pin 1 Pinout description: Name Type Description OUTPR+ 8R/15W SPEAKER ANODE OUTPR- 8R/15W SPEAKER CATHODE VT-SBC35-APL | User Manual www.vantrontech.com... -
Page 29: J19 Speaker_L Connector (17)
VT-SBC35-TGL implements a 4-pin power connector to supply power to the storage device. Specification: 1 x 4, 2.54mm, 2A, 6mm (H), Male, Vertical, WDT, THR, RoHS GLW: 6402-1XX-199-000-RC Pin 1 Pinout description: Type Name Description +V5_S POWER +5V Ground Ground +V12_S POWER +12V VT-SBC35-APL | User Manual www.vantrontech.com... -
Page 30: J40 F_Panel Connector (20)
Specification: 2 x 4, 2.54mm, 2A, 6mm (H), Male, Vertical, WDT, THR, RoHS IUPIIN: HS1104H-RN Pin 2 Pin 1 Pinout description: Type Name Description SATA_ACT+ SATA_ACT+ LED_POWER LED POWER SATA_ACT# SATA_ACT+ PBTN_IN# Power Button SYS_REST# SYS_REST VT-SBC35-APL | User Manual www.vantrontech.com... -
Page 31: J57 Smbus (21)
+V3.3_A +3.3V POWER SMB_SCL_3.3V- SMB_SCL SMB_SDA_3.3V SMB_SDA Ground 2.4.22 J28 RTC connector (22) VT-SBC35-APL implements a RTC connector. Specification: 1 x 2, 1.25mm, 4.2mm (H), Male, Vertical, White, WDT, THR, RoHS Molex: 530470210 Pin 1 Pinout description: Name Type Description... -
Page 32: J13 M.2 B-Key (23)
Key B. 2.4.24 J51 M.2 E-Key (24) VT-SBC35-APL implements an M.2 E-Key socket that can be expanded for connection of a Wi-Fi & BT module as per demands from the customer. The pinout of the M.2 E-Key socket is in line with the pin assignment of standard M.2 for Key B. -
Page 33: Chapter 3 Software Setup
Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 3 SOFTWARE SETUP VT-SBC35-APL | User Manual www.vantrontech.com... -
Page 34: Bios Introduction
1. Press the “Win + R” on the keyboard to call the command box; 2. Input msinfo32 in the command box and click “OK” to confirm; 3. Move to BIOS Version/Date on the open page to check the detailed information. VT-SBC35-APL | User Manual www.vantrontech.com... -
Page 35: Bios Setup
Configure secure boot function, which can prevent or allow Administer Secure Boot the specified system to boot Overview of all BIOS setup options. You must be very Setup Utility careful when modifying the default settings. VT-SBC35-APL | User Manual www.vantrontech.com... -
Page 36: Secure Boot
4. Press F10 to save and exit; 5. There will be a dialog box indicating the system will be reset. Click OK, and the system will reboot; If you need to disable Secure Boot, set Enforce Secure Boot to Disabled. VT-SBC35-APL | User Manual www.vantrontech.com... - Page 37 1. Press the “Win + R” on the keyboard to call the command box; 2. Input msinfo32 in the command box and click “OK” to confirm; 3. Move to BIOS Mode and Secure Boot State on the open page to check the detailed information. VT-SBC35-APL | User Manual www.vantrontech.com...
-
Page 38: Setup Utility - Main
3.3.3 Setup Utility – Main • Language: You can select from English, French, Chinese, and Japanese for system language. • System Time: The time format is <Hour>: <Minute>: <Second>. • System Date: The date format is <Month>/ <Day>/<Year>. VT-SBC35-APL | User Manual www.vantrontech.com... -
Page 39: Setup Utility - Advanced
SEG Chipset Feature: This option allows you to enable/disable wakeup on USB from S5 state. • OEM Configuration: LVDS configurations are available to change. • SIO SCH 3222: Serial ports are configured here. • H2OUVE Configuration: You can enable/disable the configuration interface of H2OUVE tool. VT-SBC35-APL | User Manual www.vantrontech.com... -
Page 40: Setup Utility - Security
| Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions 3.3.5 Setup Utility – Security • Information of current TPM device is available here and you can set the supervisor passwords as well. VT-SBC35-APL | User Manual www.vantrontech.com... -
Page 41: Setup Utility - Power
| Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions 3.3.6 Setup Utility – Power • CPU configurations are customizable. • Options for wakeup on PME/RTC from S5 are available. VT-SBC35-APL | User Manual www.vantrontech.com... -
Page 42: Setup Utility - Boot
World-leading provider of embedded/IoT products and solutions 3.3.7 Setup Utility – Boot • Users can set the boot mode, the sequence, timeout, and automatic failover of boot devices when BIOS attempts to load the operating system. VT-SBC35-APL | User Manual www.vantrontech.com... -
Page 43: Setup Utility - Exit
World-leading provider of embedded/IoT products and solutions 3.3.8 Setup Utility – Exit • Options for users to load or exit BIOS Setup include loading system optimal defaults or loading custom settings, exiting with custom changes save or not saved. VT-SBC35-APL | User Manual www.vantrontech.com... -
Page 44: Serial Configuration
| Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions Serial Configuration VT-SBC35-APL implements 4 serial connectors (COM1 ~COM4) shown as follows in Device Manager. COM1 and COM2 support RS232 protocol, and COM3 and COM4 support RS232, RS485, RS422 protocols. -
Page 45: Gpio Setup
Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions GPIO Setup VT-SBC35-APL implements 8GPIOs with details shown below: Name Default mode Default level J39.1 GPIO_0 board Output High J39.2 GPIO_1 Input J39.3... -
Page 46: Enabling Watchdog Timer
The Count shall be set more than 3 if the Count Mode is minute; • 4. Press F10 to save the settings; 5. Press Ctrl + Alt + Delete to restart the system to get the settings take effect. VT-SBC35-APL | User Manual www.vantrontech.com... -
Page 47: Install Windows 10 System
Partition Scheme based on the USB drive. Yet make sure the partition scheme is GPT; 4. Set the Target system as UEFI and the File system as FAT32 or NTFS; 5. Click START to make the bootable USB drive. VT-SBC35-APL | User Manual www.vantrontech.com... -
Page 48: Install Windows 10
4. Select the bootable USB drive you created for Windows 10 and press ENTER; 5. Wait for the installation of Windows 10 on the Board. When the installation finishes, there will be a Windows 10 icon on the desktop. VT-SBC35-APL | User Manual www.vantrontech.com... -
Page 49: Chapter 4 Disposal And Warranty
Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 4 DISPOSAL AND WARRANTY VT-SBC35-APL | User Manual www.vantrontech.com... -
Page 50: Disposal
& electronic waste recycling/disposal center. Proper disposal of this sort of waste helps avoid harm and adverse effect upon surroundings and people’s health. Please contact local organizations or recycling/disposal center for more recycling/disposal methods of related products. VT-SBC35-APL | User Manual www.vantrontech.com... -
Page 51: Warranty
CUSTOMER’s location and no Product so inspected shall be returned to VANTRON unless the cause for the rejection or defect is determined to be the responsibility of VANTRON. VANTRON shall in turn provide the CUSTOMER turnaround shipment on defective Product within fourteen (14) working days upon its receipt at VANTRON.
