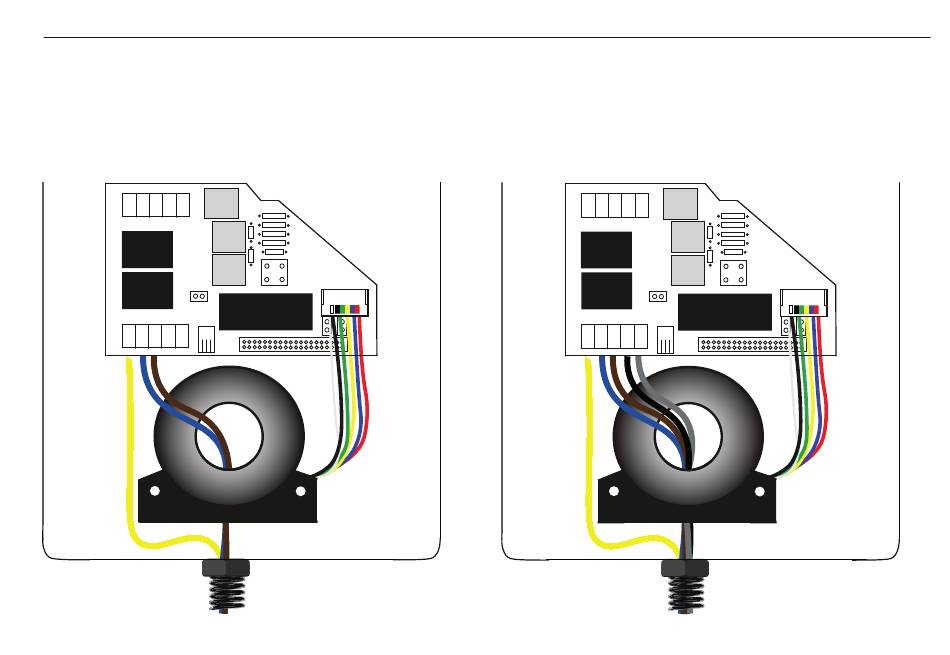

LEAK DETECTOR INSTALLATION DIAGRAMS

Single-phase installation

Run the following wires from the power board to the
hose: Neutral (blue) and Phase 1 (brown) inside the coil.
Always leave the earth wire (yellow and green) outside.
Power
board
PE N R T S
P2
1
PE N R T S
Single-phase
installation
Charging
hose
1 2
4 3
J1
Leak
detector
P3 P4
connector
Coil
Trydan
Housing

Three-phase installation

Run the following wires from the power board to the hose:
Neutral (blue), Phase 1 (brown), Phase 2 (black) and Phase 3
(grey) inside the coil. Leaving always the earth wire (yellow
and green) outside.
Power
board
PE N R T S
P2
PE N R T S
Three-phase
installation
Charging
hose
2
1
4
3
J1
Leak
1
detector
P3 P4
connector
Coil
Trydan
Housing
