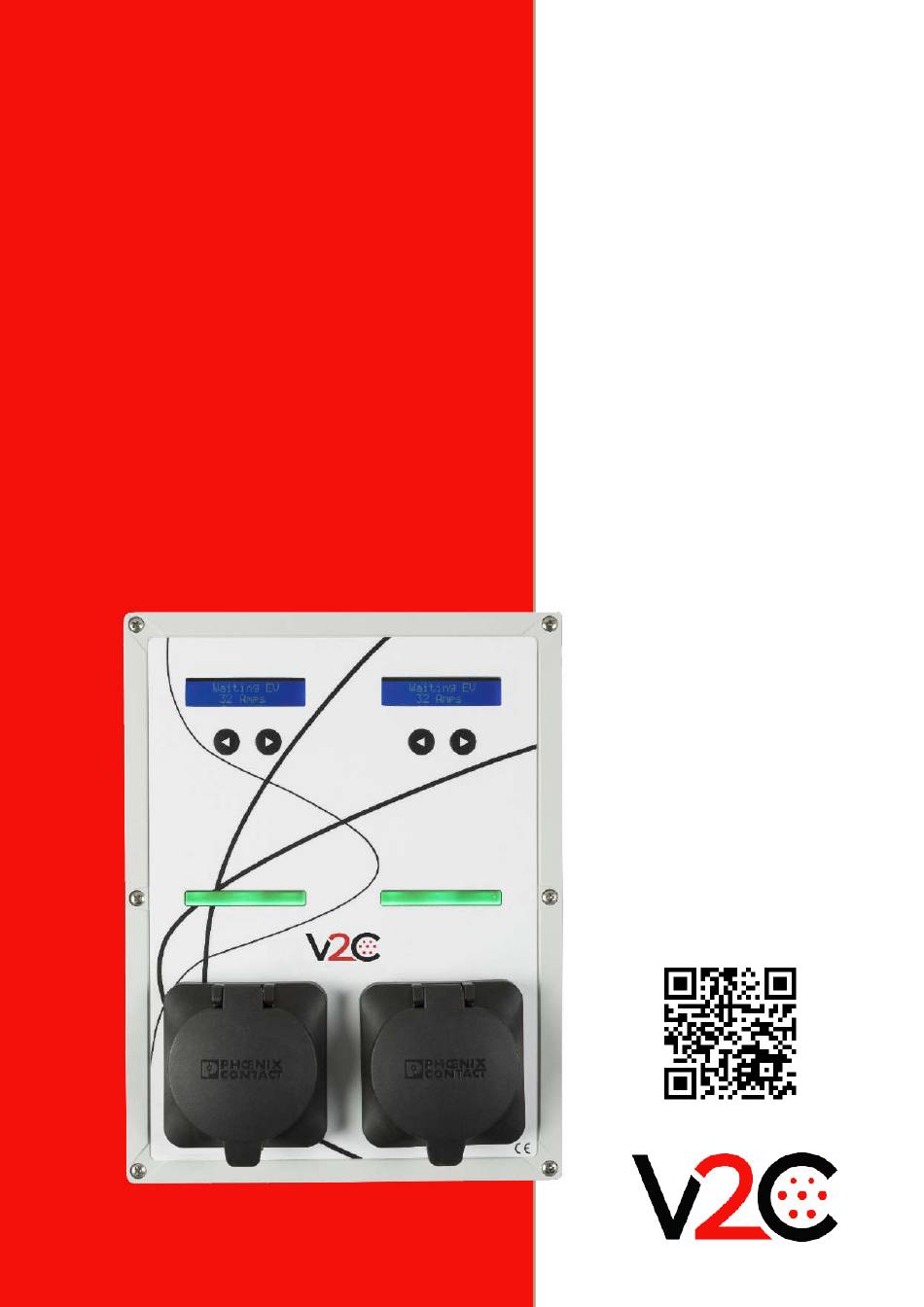

- Page 1 PLUS INSTALLATION MANUAL USER MANUAL View this manual online www.v2charge.com/man...
- Page 2 V2C bears the CE mark. The corresponding Declarations of Conformity are located at V2C. This product meets the requirements of the ROHS Directive (2011/65/CE). The corresponding Declarations of Conformity are located at V2C. Disposal Information The above symbol, the crossed-out trash container, indicates that electric...
-
Page 3: Table Of Contents
CHARGING STATION PLACEMENT ................11 ELECTRICAL CONNECTION ..................11 Dear customer, V2C team wants to thank you for buying one of our electric vehicle charging box. Our passion in design and innovation makes our charging points leaders in technology and design. Do not hesitate to contact us at info@v2charge.com if you have any suggestion. -
Page 4: Important Information
¡¡WARNING!! Not observing the safety instructions can result in risk of death, injuries and damage to the device! V2C assumes no liability for claims resulting from this! • Electrical hazard / fire hazard! Never use damaged, worn or dirty charging plugs. The first time tuning on the electrical charging station must be carried out exclusively by competent and qualified technical personnel, fully responsible for compliance with the installation regulations and existing standards. -
Page 5: Intended Use
INTENDED USE PLUS is a "charging station" for the indoor and outdoor area at which electrically operated vehicles can be charged (e.g. electric automobiles). The electric charging station has been designed for being built in a wall. - Page 6 2 OUTLETS CHARGING POINT 1 OUTLET CHARGING POINT Compatible with: Compatible with: Dynamic power control V2C Cloud Dynamic power control Balancing between charging points Balancing between charging points (Internet connection required) Equipment 1 outlet 1 hose 2 outlets 2 hoses...
-
Page 7: Using The Charging Station
USING THE CHARGING STATION 3.1 ELECTRIC CHARGING BOX WITH CABLE 1. Switch on the charging box (Normal operation of the charging point: always activated) 2. The charging box will start a self-test mode for a few seconds. Immediately, the backlight will turn green. -
Page 8: Charge Amps Selection
3.2 CHARGE AMPS SELECTION The vehicle will charge at that recharging speed or at a lower speed depending on the maximum recharging capacity of the vehicle and the percentage of load it is in. The maximum speed selected must be in accordance with the installation performed. An electrical specialist technician must select the circuit breaker you need to install and the supply... -
Page 9: Equipment With Dynamic Control And Balance Of Loading
3.4 EQUIPMENT WITH DYNAMIC CONTROL AND BALANCE OF LOADING Plus allows the balance of load between sockets (in case there are more than two connectors) and the dynamic control of the recharge with regard to the installation. In the case of the load balance between sockets, the system is regulated automatically. If two vehicles are connected at the same time, the intensity will be reduced to the half –... -
Page 10: Electrical Connection Instructions
Installation of the charging point in hazardous areas is forbidden. Do not mount the electric charging station in the direct path of people so that no one can trip over the plugged-in charging cable and that no flow of pedestrians can step on or cross the charging cable. -
Page 11: Charging Station Placement
CHARGING STATION PLACEMENT The screws are spring-loaded, which require only a 90º turn to open. 1. Mark four holes in the wall, taking into account the measurements indicated behind the box. 138mm x 130mm 2. Fixing materials are not included in the recharging point. Those that are considered most suitable for the material to be fixed should be used. - Page 12 ATTENTION Make sure that the screws are tightened properly. Don’t be afraid to use “moderate” force. www.v2charge.com...
