Sealey 2500LE.V3 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear safety
instructions footwear
1. SAFETY
Ensure the jack is in sound condition and good working order. Take action for immediate repair or replacement of damaged parts. Use
9
recommended parts only. The use of improper parts may be dangerous and will invalidate the warranty.
Locate the jack in an adequate, well lit working area for its function.
9
Keep working area clean and tidy and free from unrelated materials.
9
Use jack on level and solid ground, preferably concrete. Avoid tarmacadam as jack may sink in.
9
Place wedges under wheels of vehicle (but ensure wheels of jack can move freely ).
9
Ensure the vehicle handbrake is engaged (or in "PARKED" mode), and switch the engine off.
9
Ensure minimum distance of 0.5m between vehicle tilt & static objects such as doors, walls, etc.
9
Ensure all non essential persons keep a safe distance whilst the jack is in use.
9
Ensure there are no passengers in the vehicle to be jacked up.
9
Place jack under vehicle manufacturer's recommended lifting points (see vehicle hand book).
9
Check that the lifting point is stable and centred on the jack saddle.
9
Ensure the jack wheels are free to move and that there are no obstructions.
9
WARNING: The jack is a lifting device only.
‰
To support the load always use axle stands (available from your Sealey stockist).
9
Ensure there are no persons or obstruction beneath the vehicle before lowering.
9
Use a qualified person to lubricate and maintain the jack.
9
Use only hydraulic jack oil.
9
When not in use store jack in a safe, dry, child proof area in the lowered position.
9
DO NOT jack vehicle which may result in spillage of fuel, battery acid, or dangerous substances.
8
DO NOT work under the vehicle until axle stands have been correctly positioned.
8
DO NOT operate the jack if damaged.
8
DO NOT exceed the rated capacity of the jack.
8
DO NOT use the jack for purposes other than which it is intended.
8
DO NOT top up the hydraulic unit with brake fluid. Use hydraulic oil only.
8
DO NOT allow untrained persons to operate the jack.
8
DO NOT allow the vehicle to move whist lifting or lowering.
8
DO NOT use the jack to move vehicle.
8
DO NOT adjust the safety overload valve.
8
2. INTRODUCTION
2500LE.V3 & 2501LE:Twin piston Rocket Lift feature brings saddle to maximum height in minimal strokes. Universal joint release
mechanism allows safer, more controlled lowering of jack. Profiled lifting arm gives low clearance height of just 85mm making it
suitable for sports and custom cars. Heavy-duty steel chassis provides stability and endurance. Fitted with an overload valve for
added safety. Hydraulic oil by-pass system protects ram from being overextended.
2501LE: Polyurethane wheels for smoother manoeuvrability and helps prevent damage to workshop floor.
3. SPECIFICATION
Model ...................................................... 2500LE.V3, 2501LE
Capacity ......................................................................2.5tonne
Min Saddle Height ...........................................................88mm
Max Saddle Height ........................................................495mm
Max Chassis Height ......................................................151mm
Length ...........................................................................701mm
Replacement rubber jack pad .......................................... JP17
Polyurethane wheel kit .......................................... 2500LE.PW
© Jack Sealey Limited

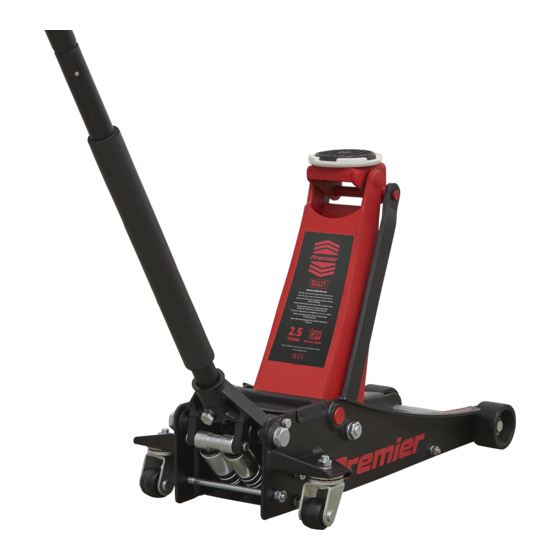

2.5TONNE LOW ENTRY TROLLEY JACK WITH
ROCKET LIFT
2500LE.V3, 2501LE
MODEL NO'S:
Original Language Version
TJL3
1 3 5
2 4 R
Use on
Chock
wheels
Close
Lower
Lift & twist
to lower
Use suit ble xle st nds
w w w . s e l e y. c o . u k
2500LE.V3, 2501LE Issue 2 (1,3) 20/08/20
